4. REQUIRED TOOLING

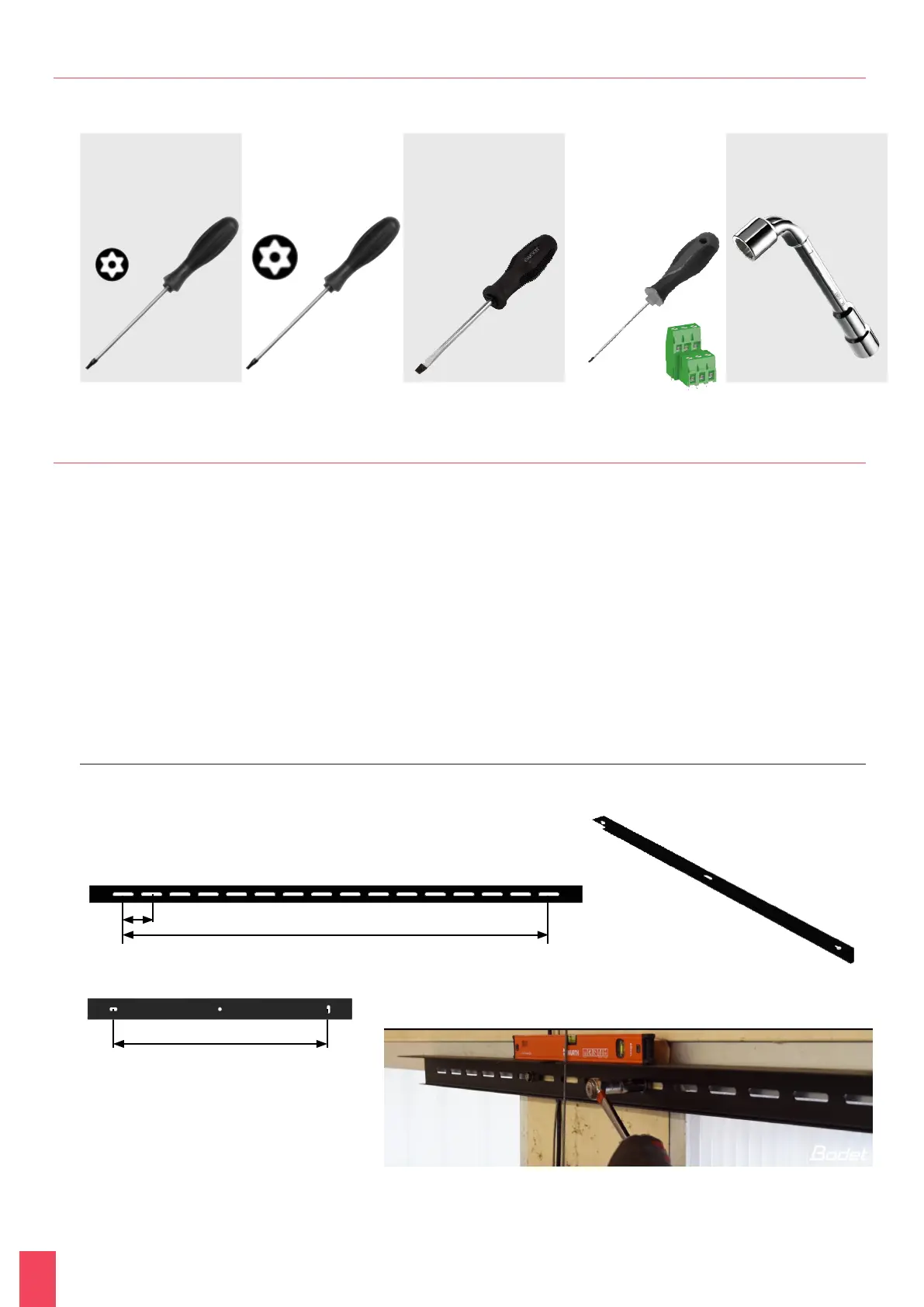

Here is the list of the tools needed for all the Bodet brand scoreboards:
TORX - T20
SCREWDRIVER
TORX - T25
SCREWDRIVER
MEDIUM FLAT-
BLADE
SCREWDRIVER
SMALL FLAT-
BLADE
SCREWDRIVE
17MM SOCKET
WRENCH
5. INSTALLING 8000 SCOREBOARDS
This chapter presents the installation method for central boards in the 8000 range: 8015, 8020, 8025, 8T120 and
8T125. The mounting principle as well as the dimensions (and centre distances) are identical for models 8020, 8025,
8T120 and 8T125. The 8015 has different centre distances.
4 types of mounting exist:
- wall bracket mount (supplied with each scoreboard 8000)
- adapter kit for mounting on BT6000 wall bracket (ref.: 916 427)
- suspended mount
- 4-point wall mount
Advice: we recommend that the entire scoreboard (with additional panels and/or personal fouls panels) be
first assembled on the ground. Then lift the assembly to its location.
5.1 Attachment to wall bracket (Ref.: standard scoreboard reference)
NO 1 MOUNTING: CHERRY PICKER AND LIFTING JACK
1) Attach the bracket to the wall using the Ø11 mm holes (A).
Wall bracket for 8020, 8025, 8T120 and 8T125 - front view
Wall bracket for 8015 - front view
1725
115
759
