Bodet 8000 - Page 10

10

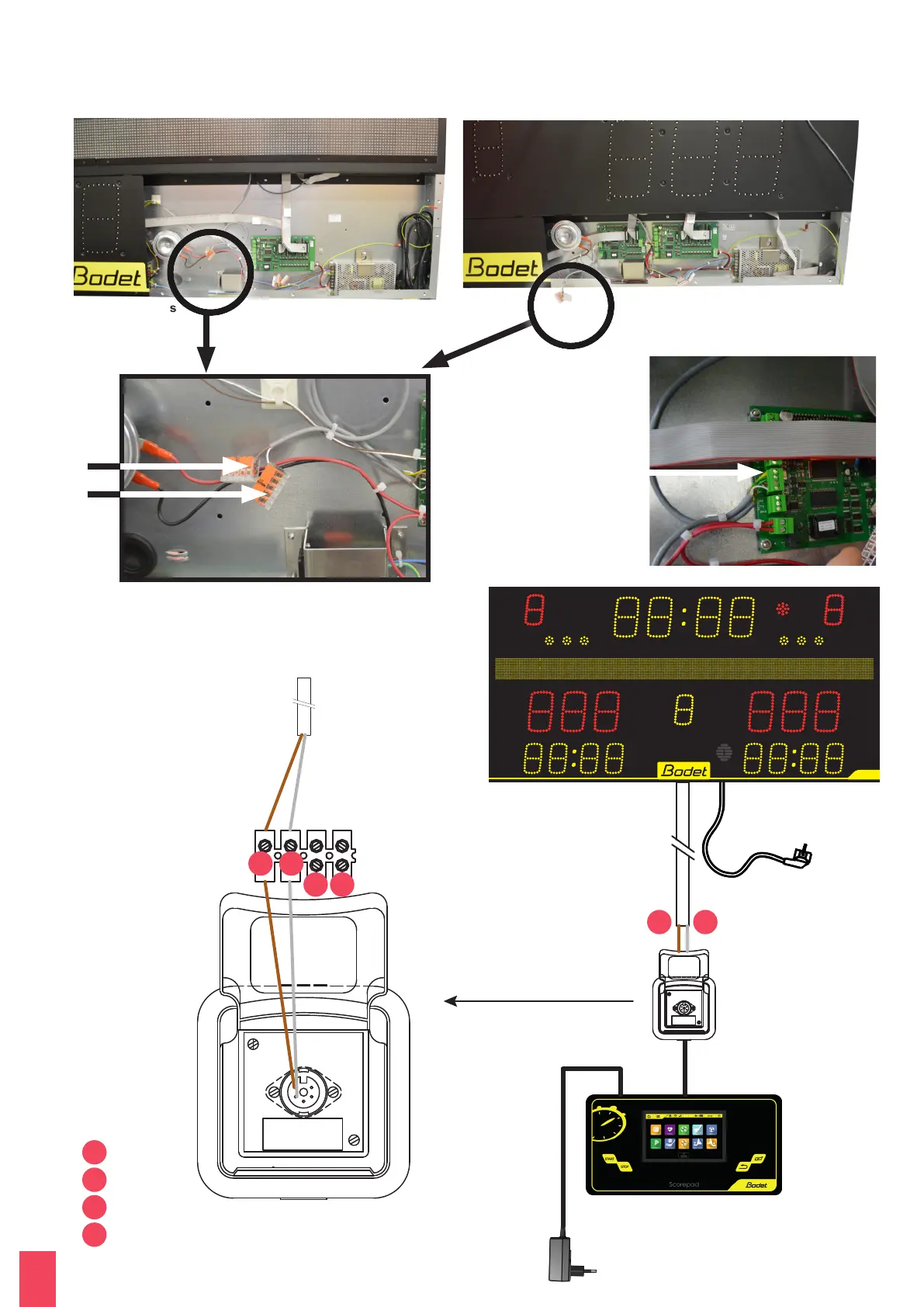

Connect the 2 wires (brown and white) on the lever connectors, for the keyboard communication coming from the
DIN type wall outlet.
> Observe the colours for connection.
1
Brown
2
White
3
Unused.
4
Unused.
NOTE: disconnect the
yellow and green
wires from the HF
MODEM connector
80xx scoreboards
Main scoreboard
DIN wall outlet
Main keyboard
1
1
2
2
3 4
Brown
White
To the
keyboard
8Txx or 8NTxx scoreboards
(Only one electronic card for
the 8T120 SOLO)
