17

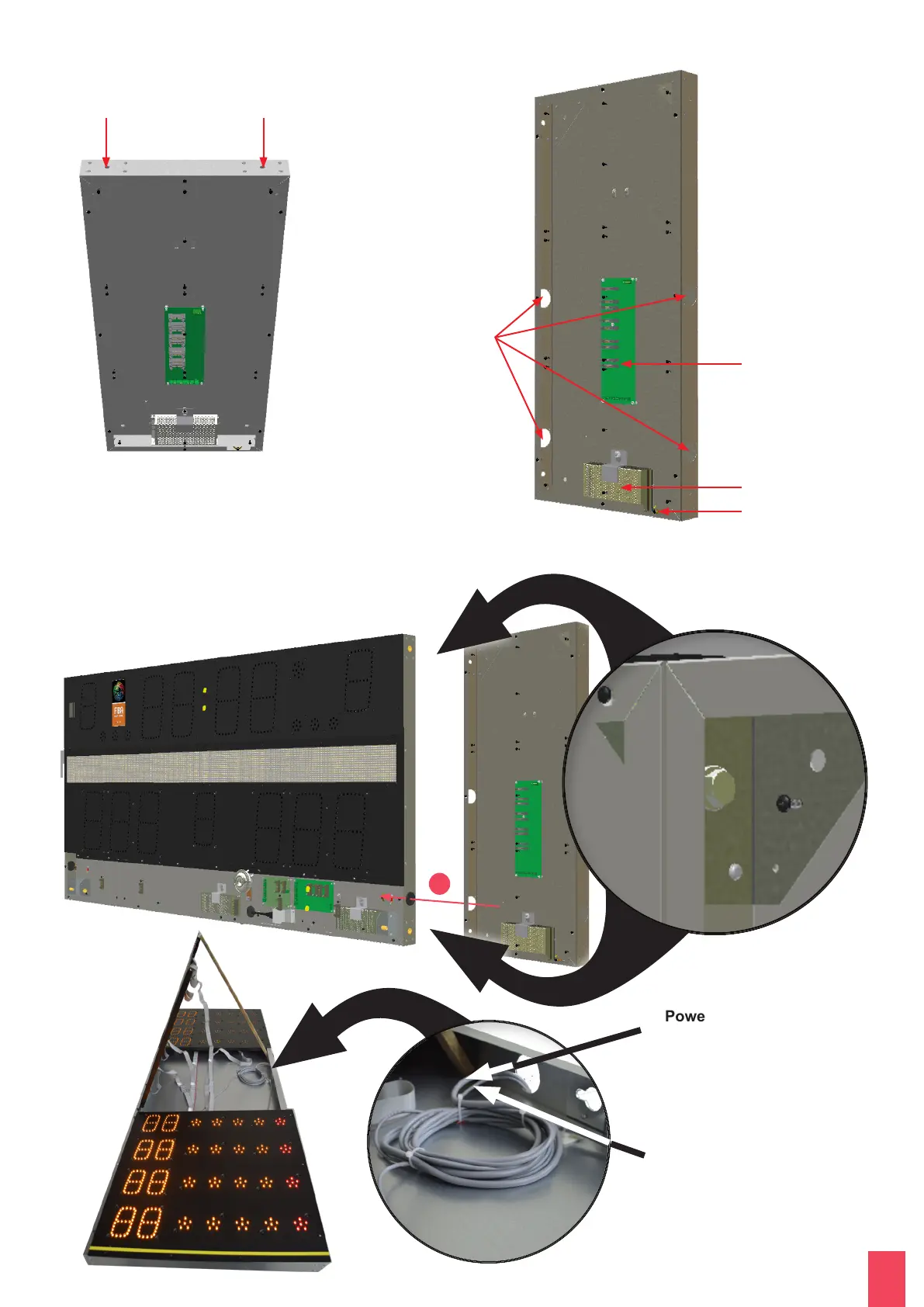

4) Using lifting eye bolts (ref.: 916 426), lift the module at the height of the central panel.
5) On the central scoreboard, remove both lower metal covers.
Attach the individual fouls panel to the central scoreboard: Route the «communication» and «power» cables from
the individual fouls module (A) to the main scoreboard panel :
Lifting eye bolts to be placed here
Power supply unit
Electronic board
Cables are run to the
central board (the metal
plate is pre-cut for creating
the hole)
Earthing terminal
Communication:
Grey cable with 1 brown wire.
+ 1 wire white
Power supply:
yellow/green - blue - brown
A
