BCB580 Page 7

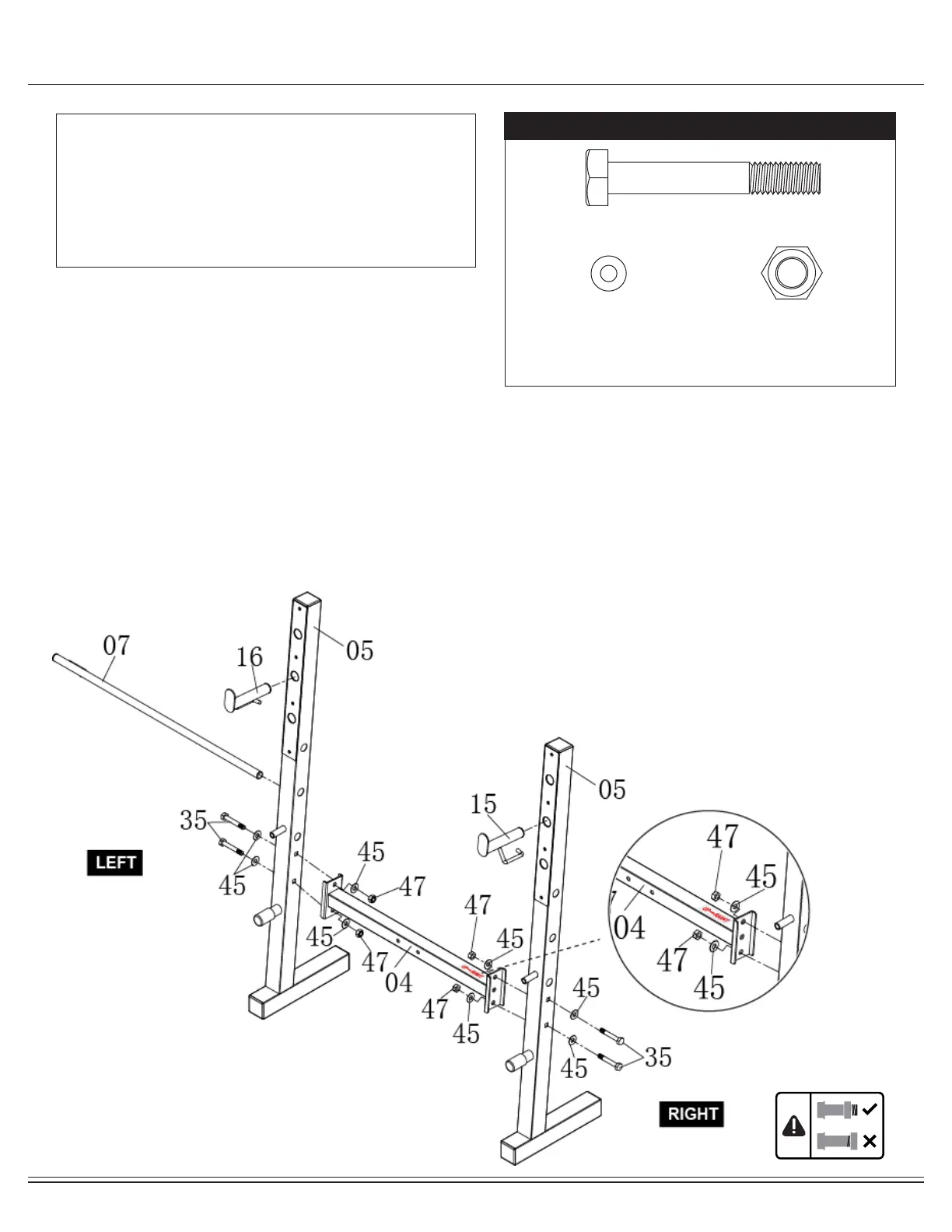

Assembly STEP 1
Stand the two Rear Uprights (#05) on a level oor, place the Rear
Cross Tube (#04) in between the two Upright Assemblies.
Insert two Hex Bolts (#35) along with two Washers (#45) through
the left Rear Upright (#05) then continuation through the Rear
Cross Tube (#04). Please note that the Rear Cross Tube (#04)
with UP RIGHT decal needs to be attached on the RIGHT side
onto the Rear Uprights (#05).Secure them together with two
Washers (#45) and two Nylon Nuts (#47).
Repeat this process on the right side with right Rear Uprights (#05).
Insert the Backrest Adjustment Tube (#07) into the Rear Uprights
(#05) .
Insert the Left Weight Rest (#15)
and Right Weight Rest (#16) into
the Rear Uprights (#05).
Hardware Required
NOTE:
To avoid misalignment due to over-tightening, please do not
use a wrench at this time.
Hand-tightening for now will help ensure easy assembly.
Wrench-tightening should be performed after all parts are
assembled to ensure all nuts, bolts, and parts are tightly
secured before use.
(35) Hex Bolt (M10 x 65mm) 4 pcs
(45) Washer (M10) 8 pcs
(47) Nylon Nut (M10) 4 pcs
