Assembly STEP 1

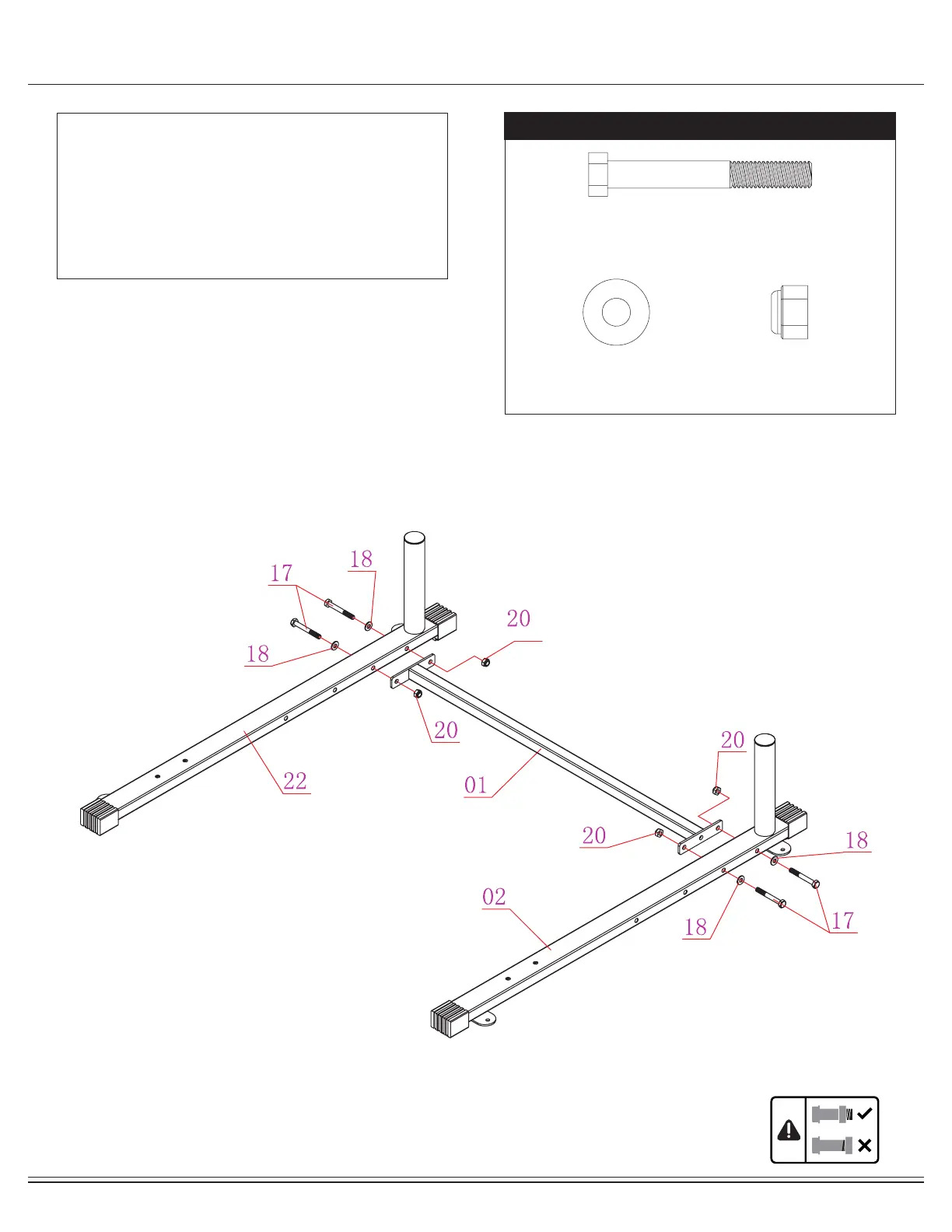

With the help of an assistant, align and attach the Rear Bottom
Frame (#01) to the Left Bottom Frame (#02) as illustrated in the
diagram.
Insert two Hex Bolts (#17) through two Washers (#18) followed by
the Left Bottom Frame (#02) and Rear Bottom Frame (#01).
Secure them together using two Nylon Nuts (#20).
Repeat this process on the other side using Right Bottom Frame
(#22).
#18 Washer (M10)
[4 Pieces]
#20. Nylon Nut (M10)
[4 Pieces]
Hardware Required
NOTE:
To avoid misalignment due to over-tightening, please do
not use a wrench at this time.
Hand-tightening for now will help ensure easy assembly.
Wrench-tightening should be performed after all parts
are assembled to ensure all nuts, bolts, and parts are
tightly secured before use.
#17 Hex Bolt (M10x80 mm)
[4 Pieces]
