Step 3
Step 4
D1
5
87
87
76
87
47
96
49
87
4
76
D4
4
47
96
49
D3
5
4
D2
47
96
49
49

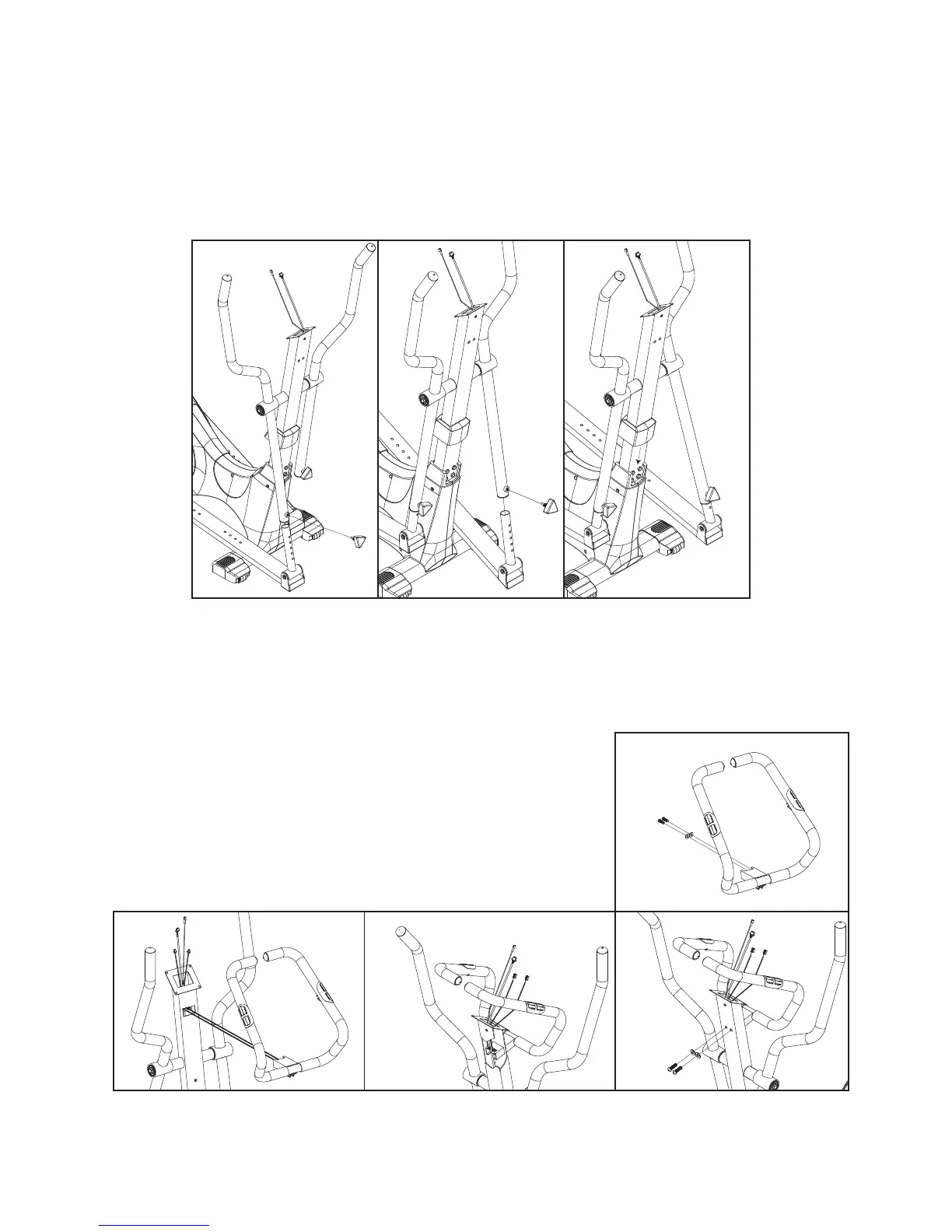

Find the Handlebar (5). Insert the Hand Pulse Cable (49) into the slot
in the front of the Front Upright (4), and out of the top. While holding
the Hand Pulse Cable (49) and the Upper Computer Cable (47) with
the opposite hand, slide the Handlebar (5) into the slot in the Front
Upright (4). Be careful to route the cables through the slot in the
Hand Support (5)! Do not pinch, or crimp the wires in any way!
Fasten the Handlebar using two 3/8" Washers (87) and two 3/8" X 1-
1/4" Dome Head Allen Bolts (76).
6
Insert the Angle Adjustment Tube (12) into the Right Dual Action Arm (7) and choose a height, then
tighten the Triangle Knob (30). Repeat the procedure (and same height) for the Left Dual Action Arm
(8). You will want to experiment with height adjustment to find the most comfortable stride.
30
12
6R
7
C1
30
12
6L
8
C2 C3
