Step 5
Step 6
19
73
73
40
40
6L
F2
73
20
73
40
6R
40
F1
93
93
E2
23
65
47
96
51
49
67
E1

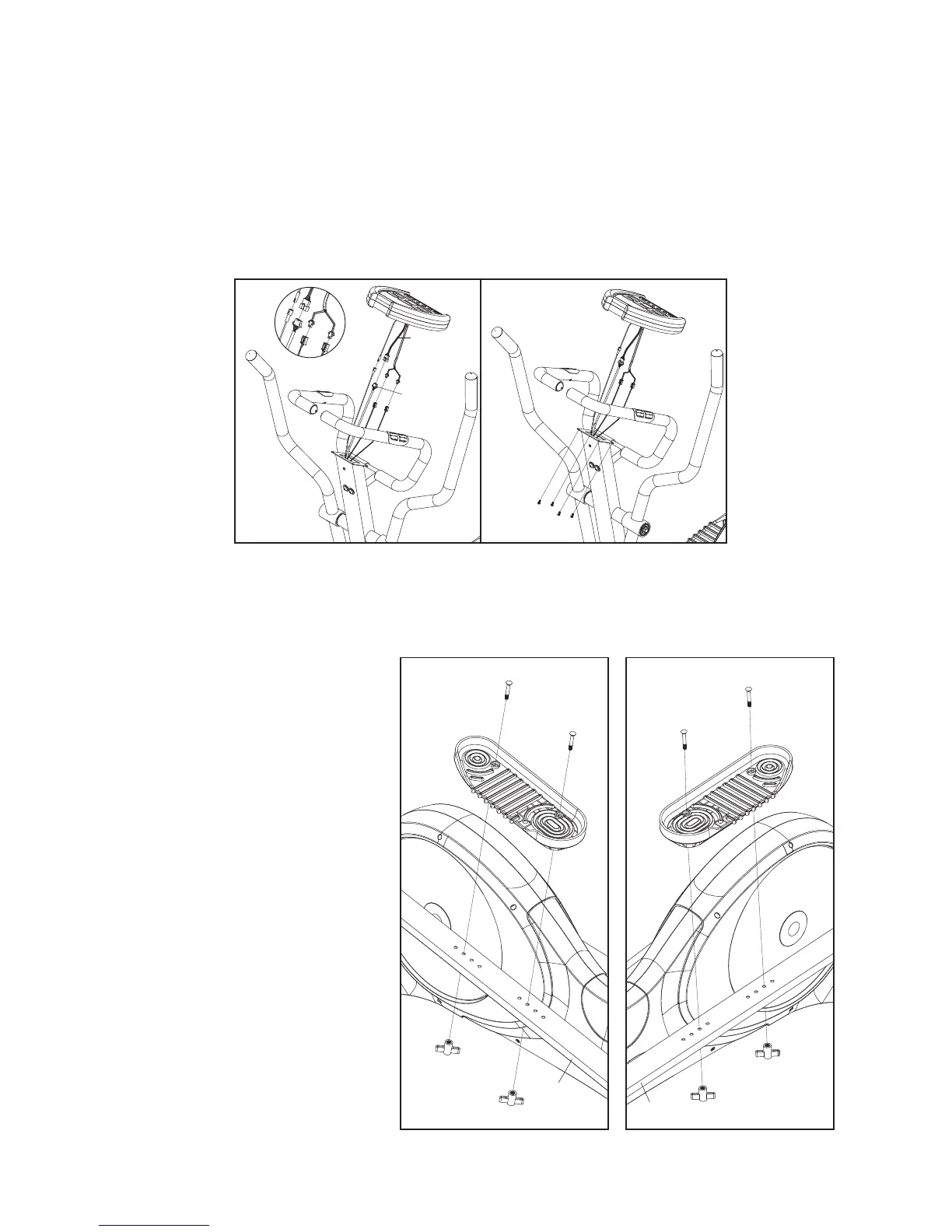

Connect the wires as shown in Figure E1. Connect the Upper Computer Cable (47) to the Computer
Connecting Cable (67). Connect the Hand Pulse Cables (49) to the Pulse Connecting Cables (65). Push
the cables down into the Upright as you bring the Computer down to attach it. Attach the Computer (23)
to the top of the Upright (4), using four M5 X 10mm Dome Bolts (93).
Attach the Pedals to the Pedal
Frames using two M8 X 50mm
Carriage Bolts (73) and Tension
Knobs (40). Select the same
holes on the R & L Foot Pedal
Frames (6R & 6L) to ensure equal
distance from the pedals to the
Dual Action Arms. You will want to
experiment with pedal placement
to find the most comfortable stride.
7
