21
22
23
24
5
N10
H10-15H10-2
W10
W10
H10-15
W10
N10
W10
H10-2
1
17

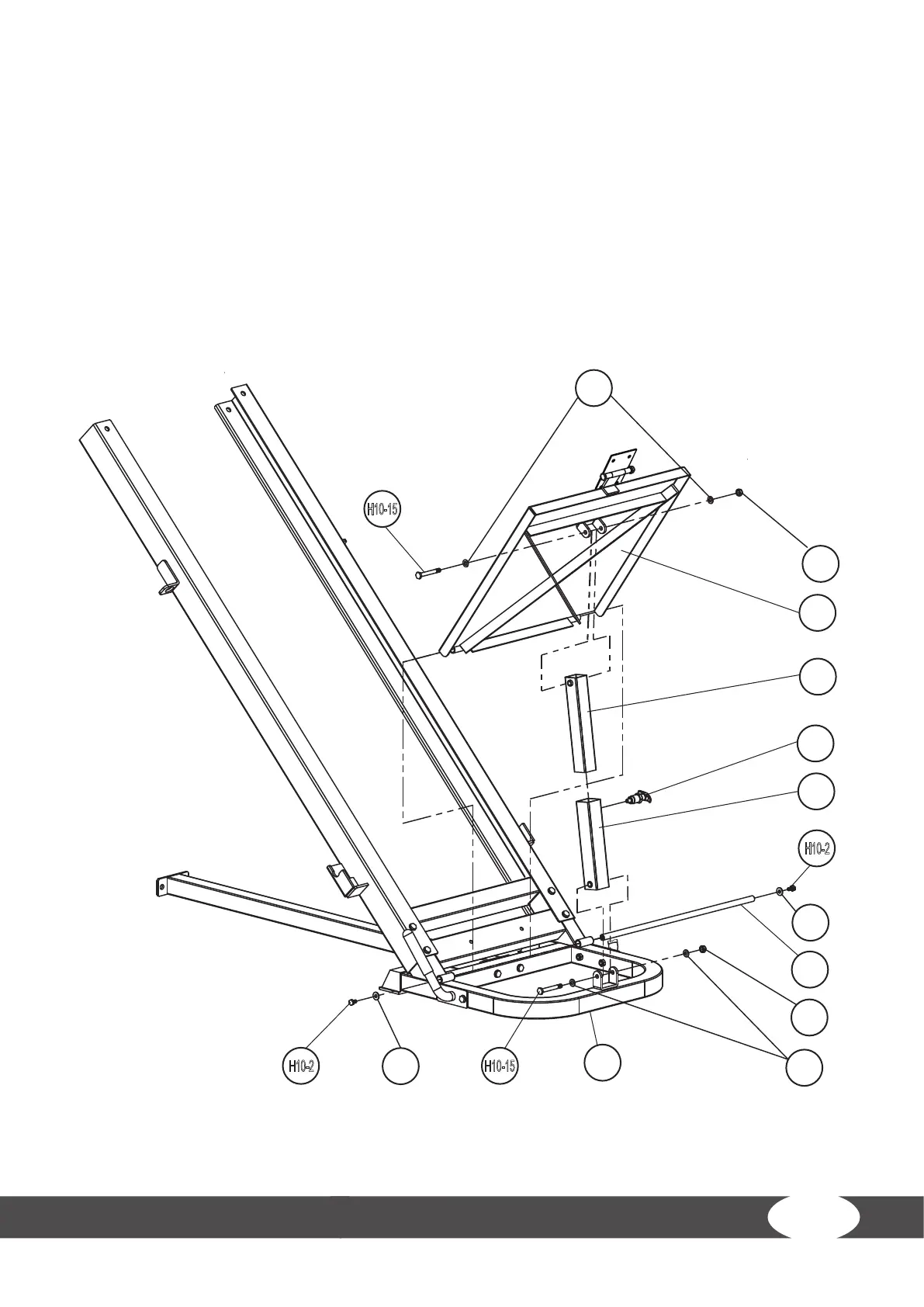

Step 3: Assembly of the Foot Platform
1. Screw one pop pin (23) into the outer foot platform adjuster (22), then insert the inner foot
platform adjuster (24) into the outer foot platform adjuster (22) and lock it into place with the
pop pin (23).
2. Attach the outer foot platform adjuster (22) to the base front (1) with one bolt (H10-15),
two washers (W10) and one nut (N10).
3. Attach the foot platform (5) to the inner foot platform adjuster (24) with one bolt (H10-15),
two washers (W10) and one nut (N10).
4. Attach the foot platform (5) to the base front (1) with one foot platform axle (21), two bolts
(H10-2) and two washers (W10).
