BODYMAX CF800 - Page 18

Assembly Instructions
Page 10

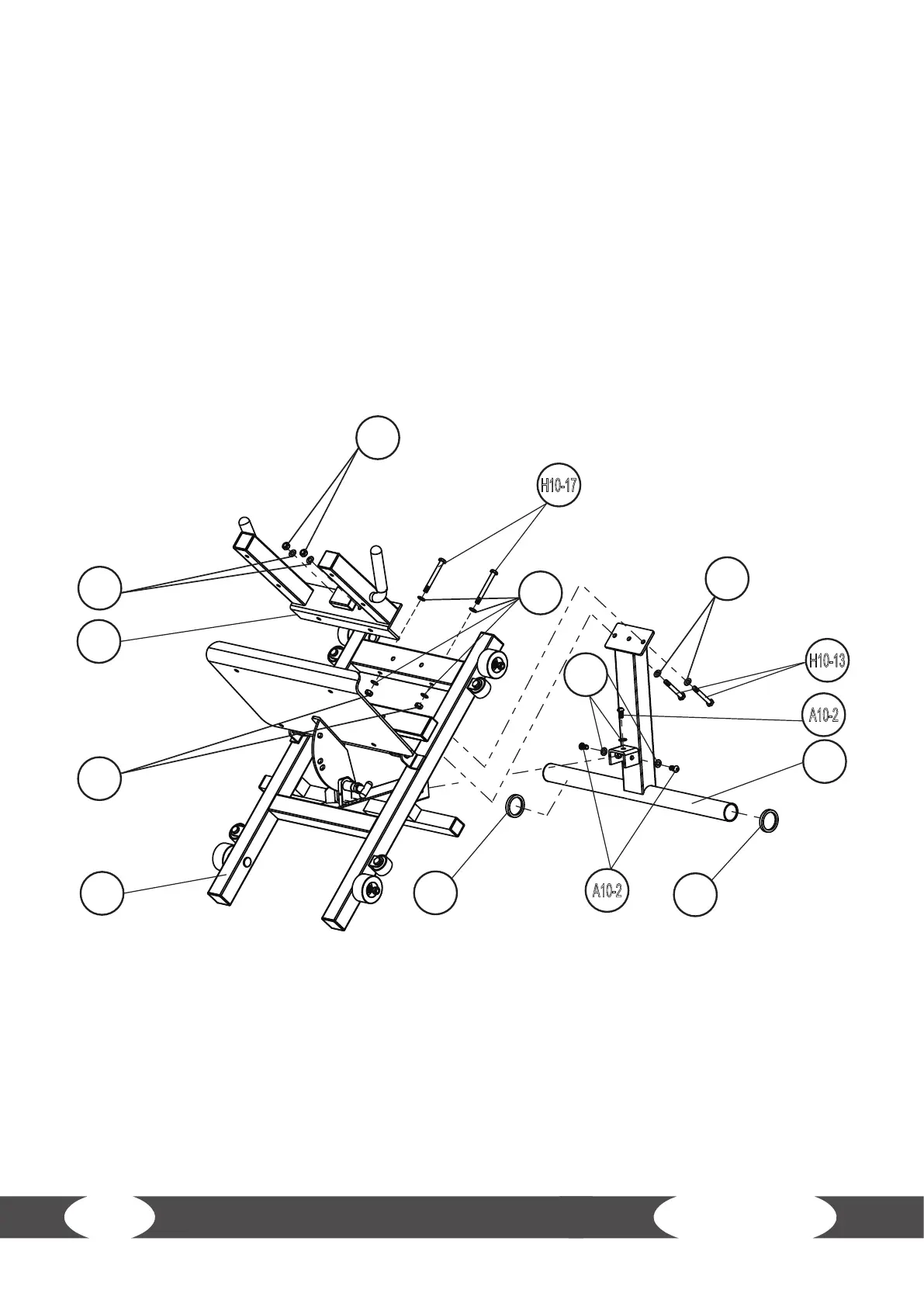

STEP 4
1.Mount Weight Carrier (#9) to Carriage (#6) with three bolts (A10-2) and three washers (W10).
2.Mount Shoulder Pad Mount (#8) to Carriage (#6) with two bolts (H10-17), four washers (W10)
and two nuts (N10).
3.Connect Carriage (#6), Shoulder Pad Mount (#8) and Weight Carrier (#9) with two bolts (H10-13),
four washers (W10) and two nuts (N10).
9
38
A10-2
H10-17
H10-13
8
W10
N10
W10
6
38
W10
W10
A10-2
N10
18
CF800
Step 4: Assembly of the Weight Carrier, Carriage and Shoulder Pad Mount
1. Attach two rubber bumpers (38) to the weight carrier (9).
2. Attach the weight carrier (9) to the carriage (6) with three bolts (A10-2) and three washers (W10).
3. Attach the shoulder pad mount (8) to the carriage (6) with two bolts (H10-17), four washers
(W10) and two nuts (N10).
4. Attach the weight carrier (9) to the carriage (6) and the shoulder pad mount (8) with two bolts
(H10-13), four washers (W10) and two nuts (N10).
