1.Mount Seat Pad (#35) to Base Front (#1) with two botls (H8-12) and two washers (W8).
2.Mount Lower Back Pad (#13) to Lower Back Pad Hinge (#34) with four bolts (H8-3) and
four washers (W8).
Assembly Instructions
Page 16
STEP 7
H8-12
W8
H8-3
W8
W8
13
35
1
34
21

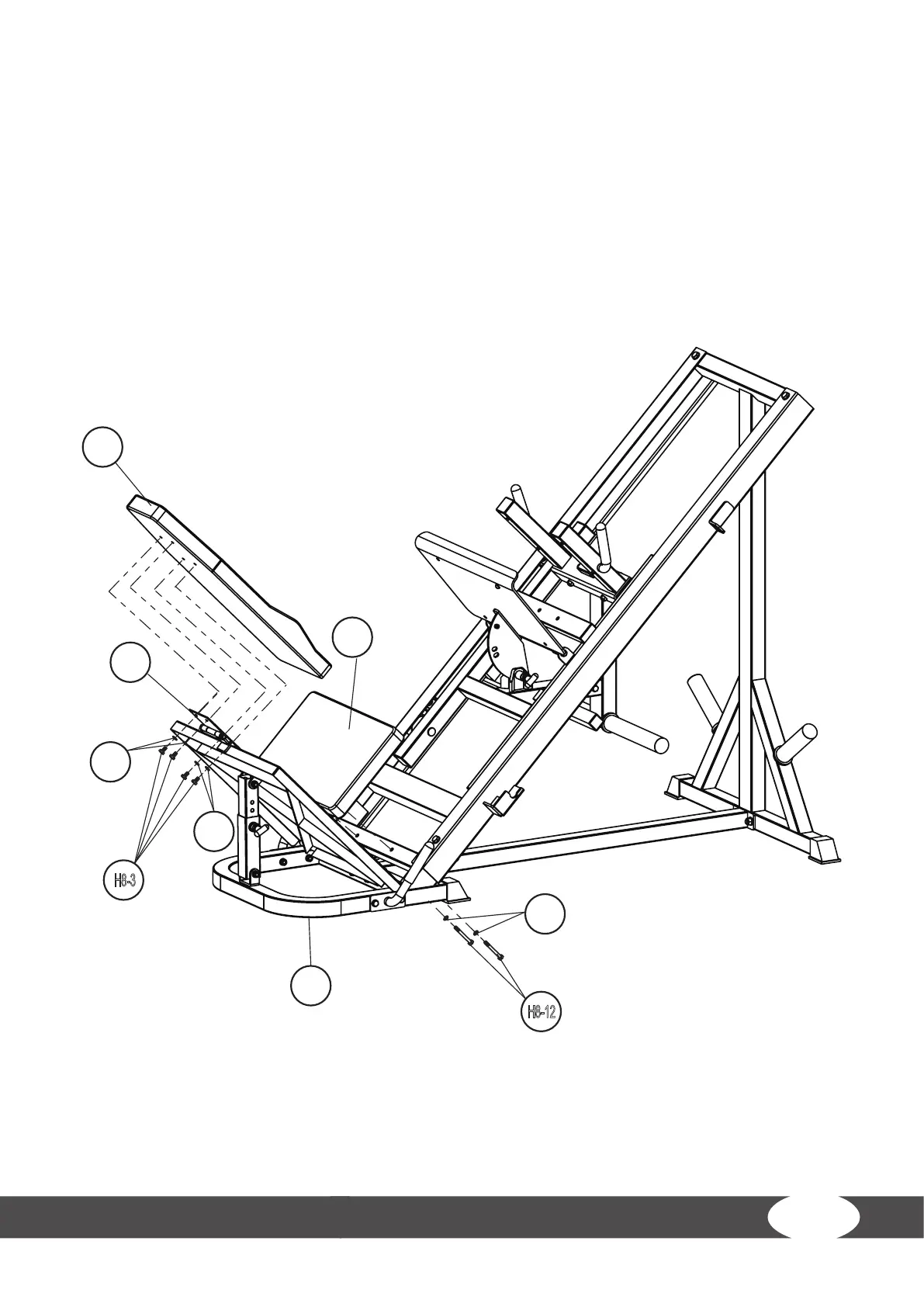

Step 7: Assembly of the Pads, Part 1
1. Attach the seat pad (35) to the base front (1) with two bolts (H8-12) and two washers (W8).
2. Attach the lower back pad (13) to the lower back pad hinge (34) with four bolts (H8-3) and four
washers (W8).
