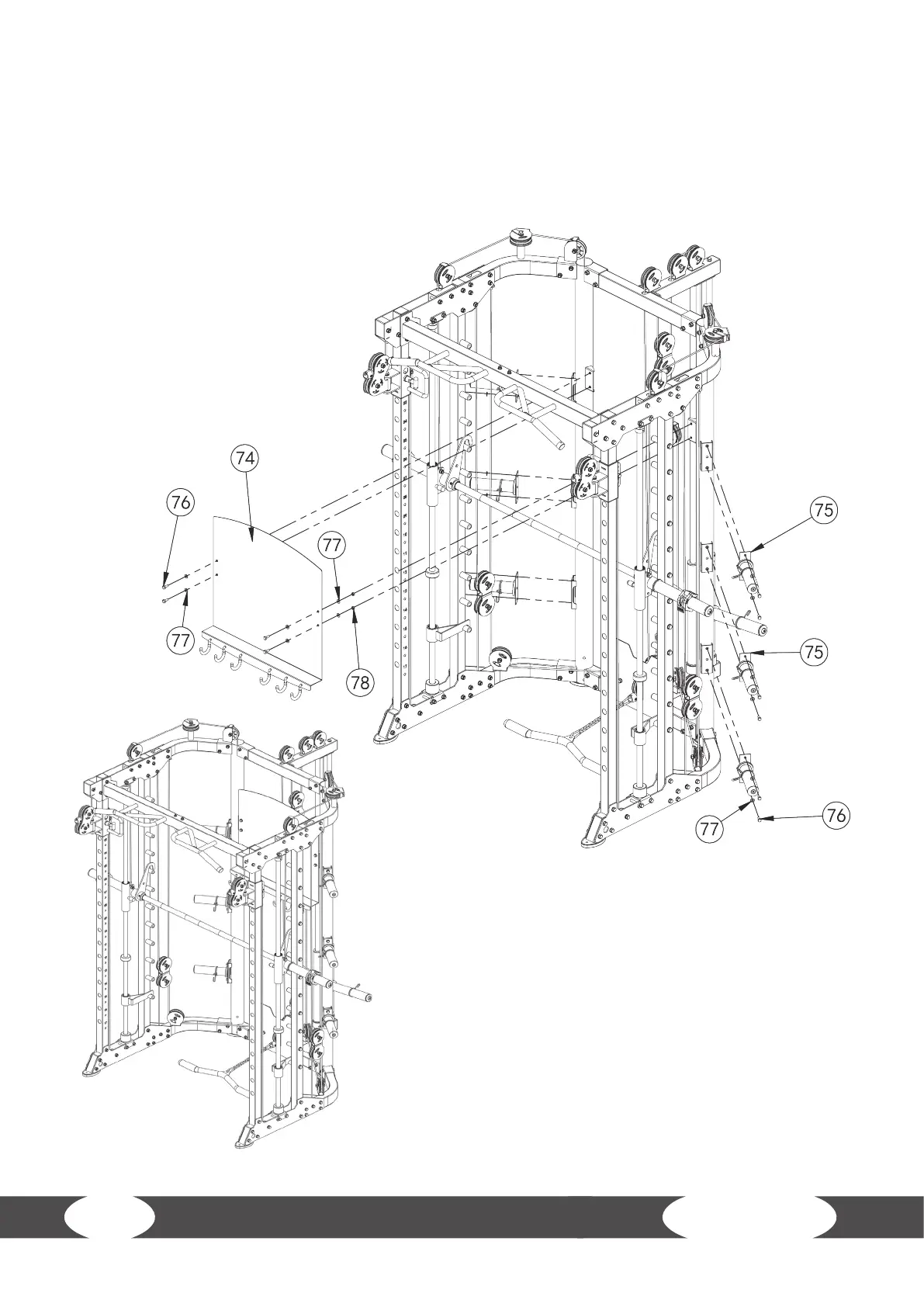

Step 10: Assembly of the Shield and Barbell Plate Holders
L NOTICE
Install all bolts, washers and nuts before tightening.
1. Attach the shield (74) to the left and right upright frames (2 & 3) with four bolts (76), eight
washers (77) and four nuts (78).
2. Attach a total of six barbell plate holders
(75) to the left and right upright
frames (2 & 3) with two bolts (76)
and two washers (77) each.
