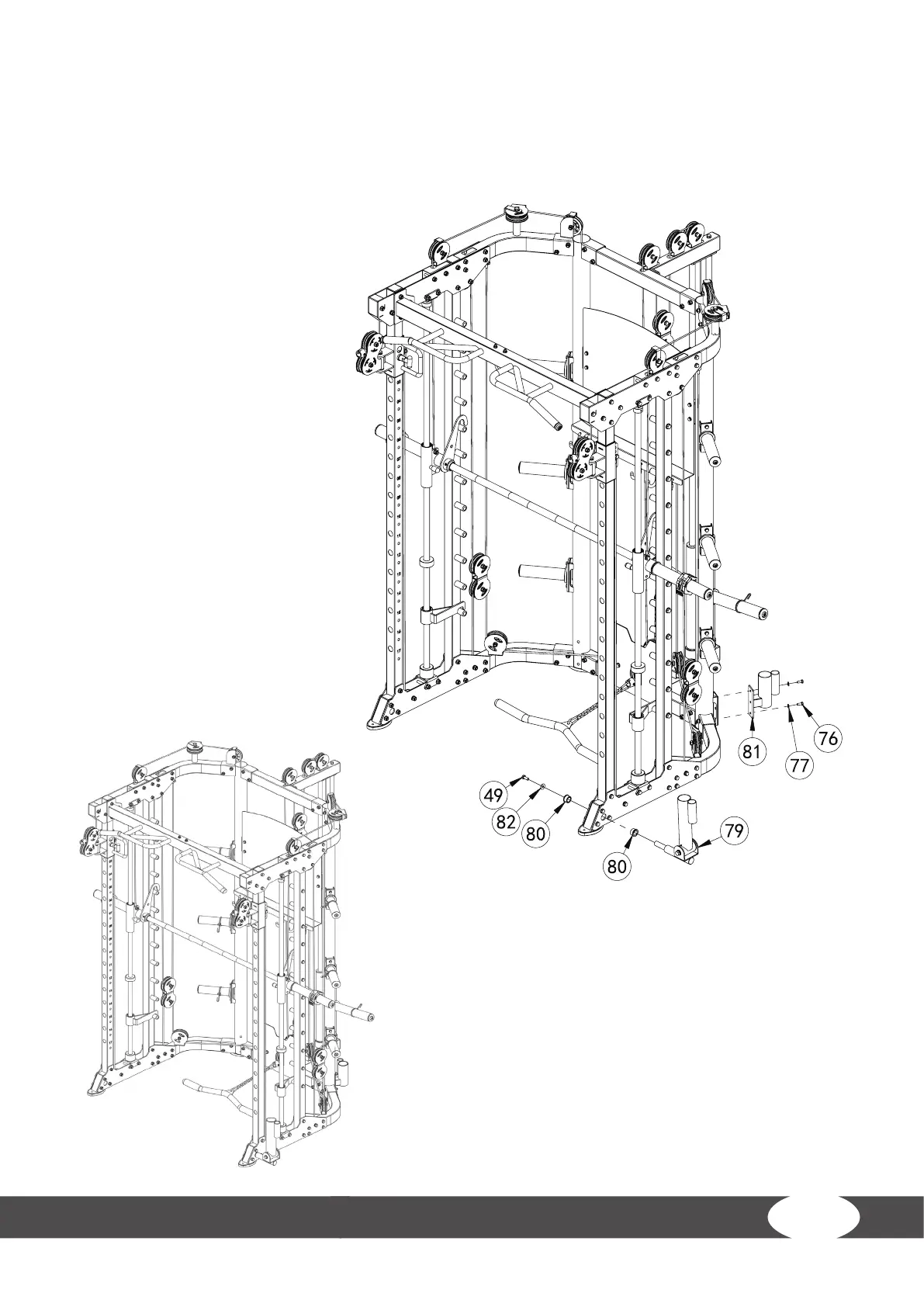

Assembly step（11）explosion drawing
27
No. Descripon Note Qty.
49 hexagon bolt M10*25 1
76 hexagon bolt M8*20 2
77 washer Φ8 2
79 core trainer 1
80 powder metallurgy sleeve Φ33.2*Φ 29*Φ20*18 2
81 barbell rod cup 1
82 big washer Φ25*10*2.0 1
37
Step 11: Assembly of the Core Trainer and the Barbell Rod Cup
1. Attach the barbell rod cup (81) to the right upright frame (3) with two bolts (76) and two
washers (77).
2. Attach the core trainer (79) to the lower plates (19) with one bolt (49), one washer (82) and two
powder sleeves (80).
