BODYMAX FXB30 - Assembly Step 7

17
7
19R
18R
26R
26L
18L
19L

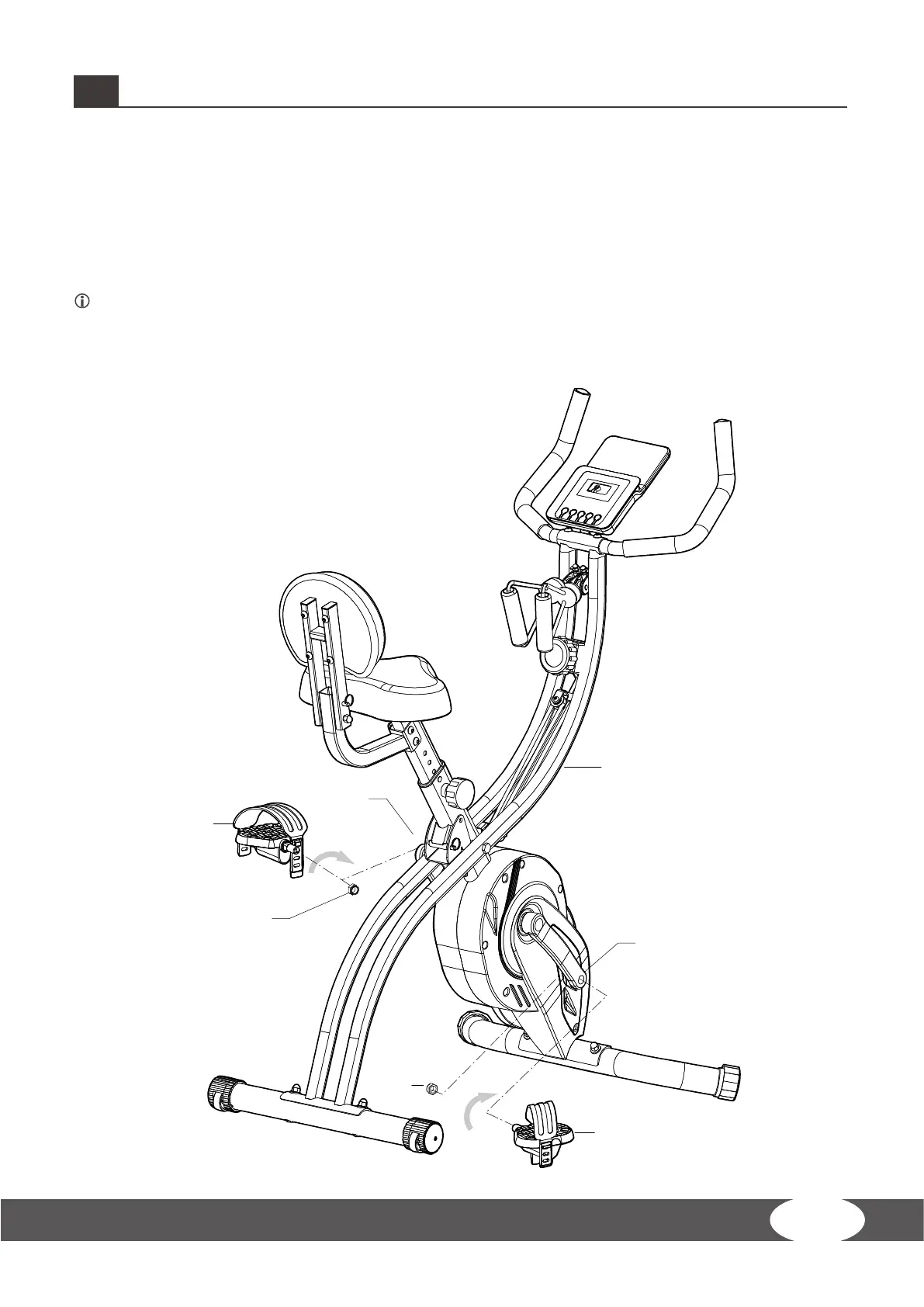

4.3 Assembly Step
Step 7:
Lock Pedal (18L/18R) in Crank (26L/26R) of Main Frame (7) and lock Nylon Nut (19L/19R) in Pedal
(18L/18R).
NOTICE
1. Pedal (18L) tighten in anticlockwise, Pedal (18R) tighten in clockwise .
2. Make sure Pedal (18L/18R) stay in locked during exercise, otherwise the teeth of the pedal
may be damaged.
