RM40 Rowing Machine
4.2 Assembly instructions
A.
Before assembling make sure that you will have enough space around the item.
B.
Use the present tooling for assembling.
C.
Before assembling please check whether all needed parts are available (at the above of
this instruction sheet you will nd an explosion drawing with all single parts (marked
with numbers) which this item consists of.

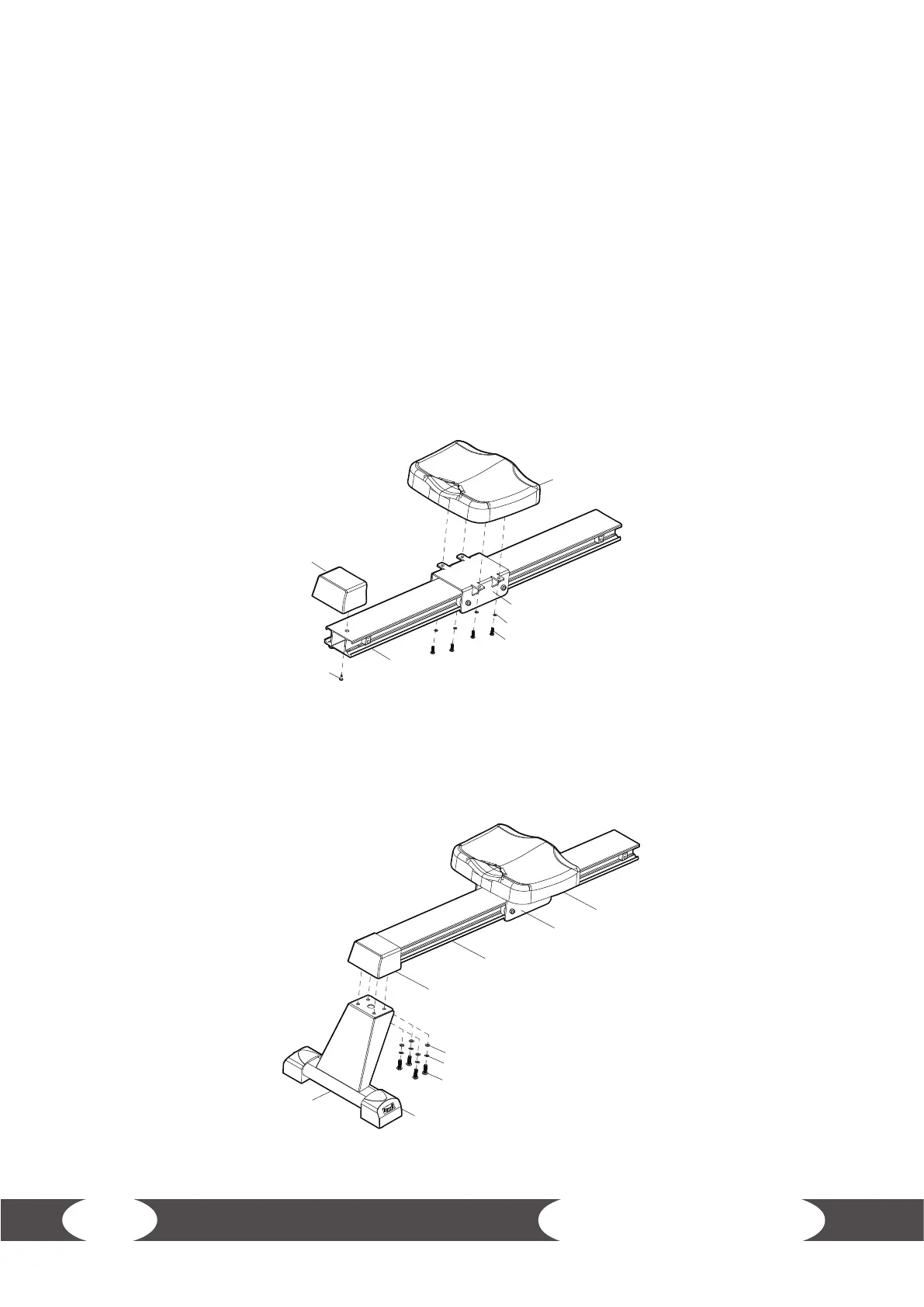

Step 1:
1.
Put Seat Assembly (24) onto Seat Plate (8) and lock tight with 4pcs Screw (61) and Washer
(70), using Allen Wrench (50).
2.
Assemble End Cap (23) onto Glide Track (7) with Cross Screw (78) and lock tight with Allen
Wrench (50).
Step 2:
Lock Rear Stabilizer (2) onto Glide Track (7) with 4pcs Screw (54), Spring Washer (63), and Flat
Washer (64), using Allen Wrench (50) to lock them tight.
23
78
61
70
8
24
7
8
24
54
63
64
2
7
23
21
