RM40 Rowing Machine
11
83
65
1
83
65
11
7
7
19
20
53
53
1
3
46

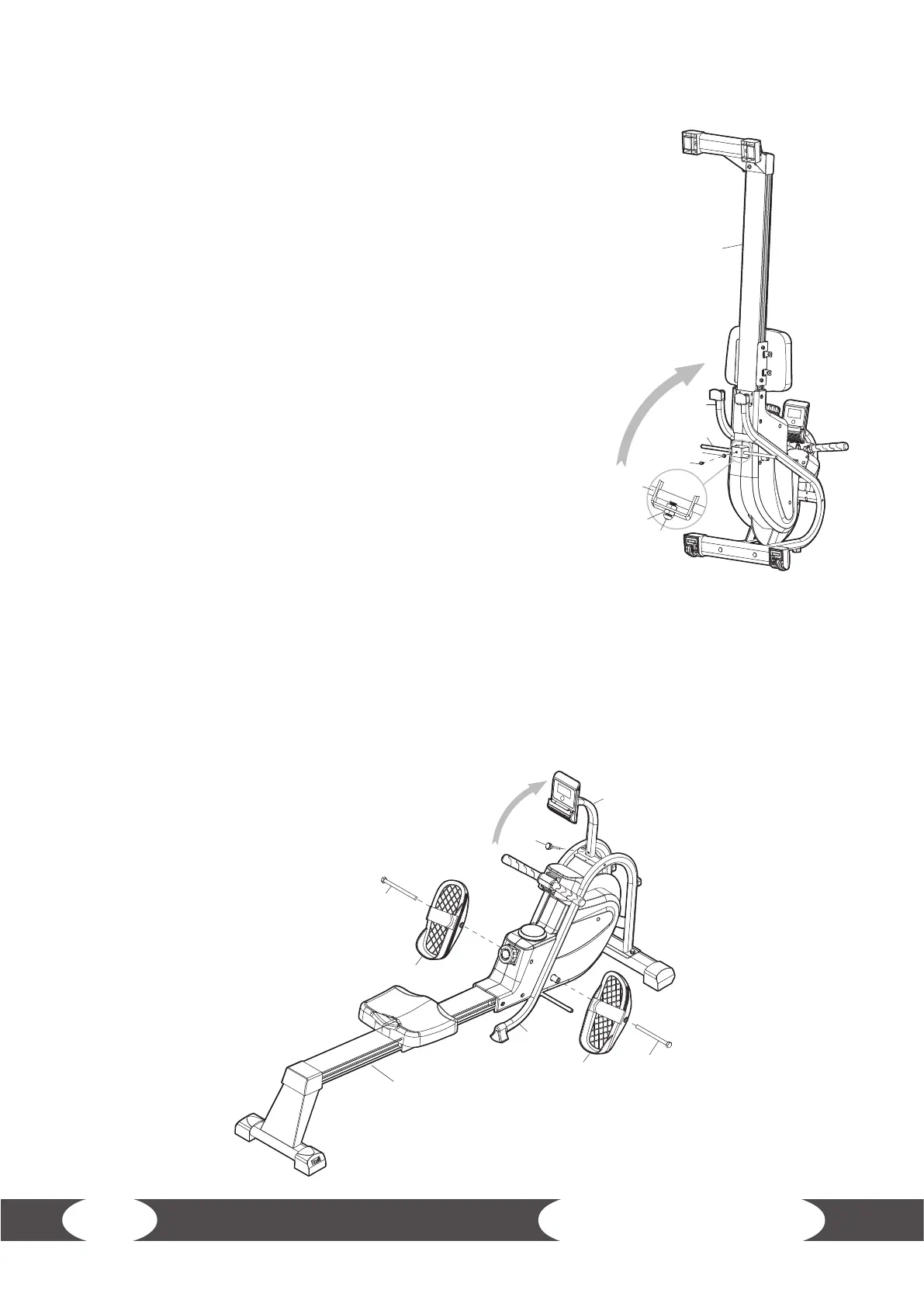

Step 5:
1.
Hold Glide Track (7) with both hands, stand the whole machine
up.
2.
Insert Pedal Axle (11) onto Main Frame (1), lock Pedal Axle (11)
tight onto Main Frame (1) with 1pc Hex Bolt (83) and Hex Nut
(65), using Spanner (51).
3.
Put the whole machine horizontally onto the oor after nish
the locking.
Step 6:
1.
Use Hex Bolt (53) to lock Pedal L (19) and Pedal R (20) onto both sides of the Main Frame (1).
2.
Screw o T Knob (46). Rotate Watch Stand Assembly (3) along the arrow shows until the
end. Fix the position of Watch Stand Assembly (3) and Main Frame (1) with T knob (46)
again.
