ASSEMBLY INSTRUCTIONS
STEP 1

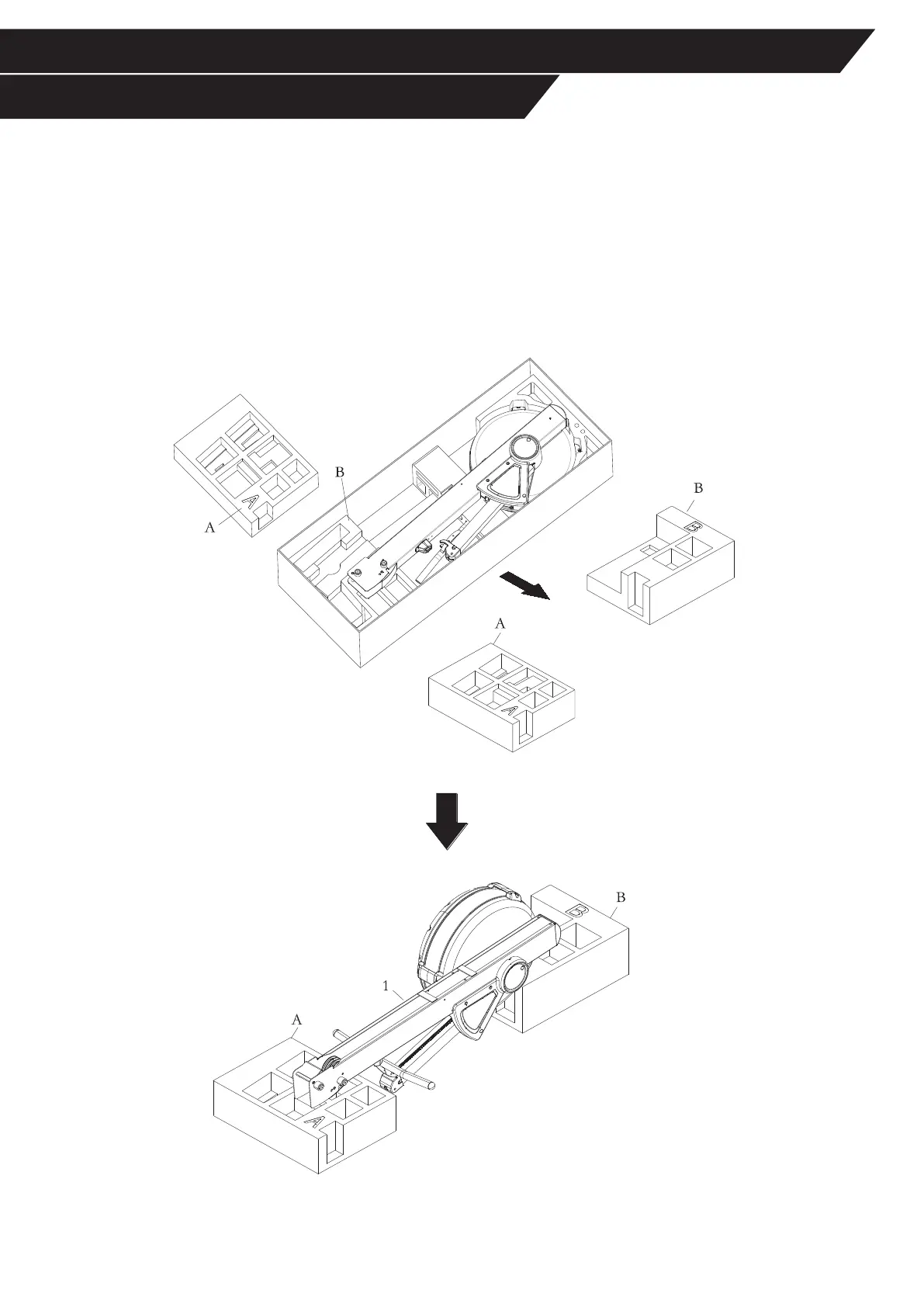

First, take out the packing materials Styrofoam (A) and Styrofoam (B). Then flip them over so
the sides with carved letter are facing up. Take the Main Frame (1) out from the carton and put it
on both Styrofoam (A & B) as picture shown. The Right and Left Fan Shrouds (43 & 44)
should be placed in the groove of Styrofoam (B).
NOTE: Fan Shrouds will be easily damaged if the whole product is placed on the ground directly
during the assembly.
