Wartung.pm6.5 - USA
Page 5.10
Maintenance
BOGE Operating instructions for S 40-2...S 341 / SF 40-2...SF 220 series screw compressors
Changing the V-belt
Check: 1x per year for damage.
Change: At visible damage.
The BOGE GM drive system automatically adjusts the V-belt to the correct
V-belt tension in any operating mode.
Maintenance of the V-belt drive is limited to the above mentioned work.
Switch off the compressor using the OFF button.
DANGER: Risk of injury!
Switch off the main switch and secure it against unintentional switch-on.
Slacken the V-belts:
Remove cladding on the maintenance side as well as the belt protection.
Secure screw head of the tensioning device with NW 27 spanner to
prevent it from turning.
Turn locknut clockwise. Raise the motor in arrow direction until the
V-belts are fully slackened.
Change the V-belts:
Remove the slackened belts from the belt pulleys.
Fit new V-belts on the belt pulleys on the motor and compressor.
CAUTION!
The new V-belts must be of precisely the same length.
Only change the V-belts as a complete set!
Tensioning the V-belts:
Lower the motor again. For this purpose, secure screw head against
turning, then turn locknut counterclockwise and lock by means of the
screw head. The V-belts are automatically correctly tensioned by the
BOGE GM drive system.
Fit belt protection.
Reattach cladding on the maintenance side.
5.3 Regular maintenance work
Note: Demonstration example. Compressor may only be operated with the switch cabinet
closed and all panels fitted.
3
4
5

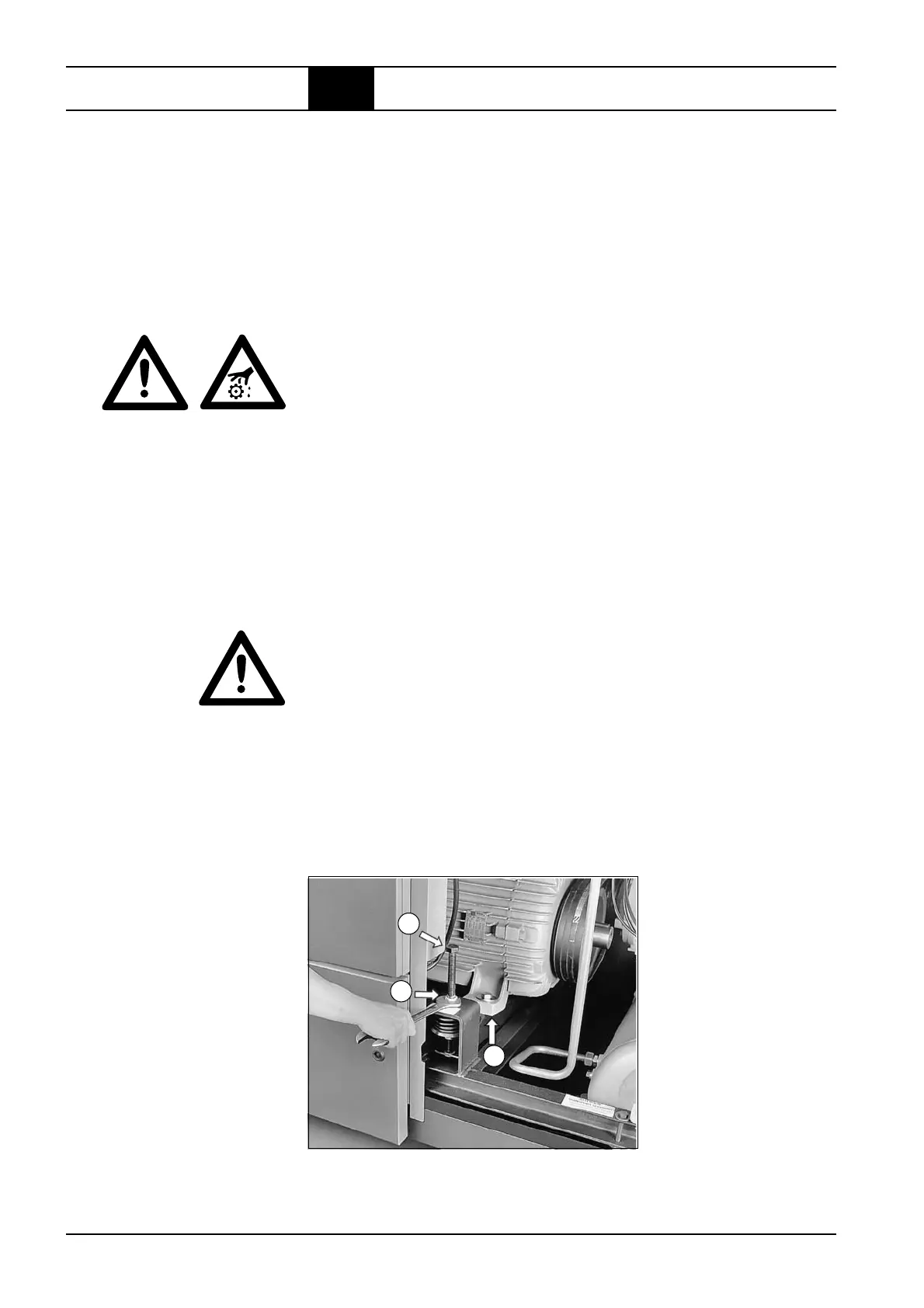

Fig. 5.6: The BOGE GM
drive system
Note:
