Product Diagrams

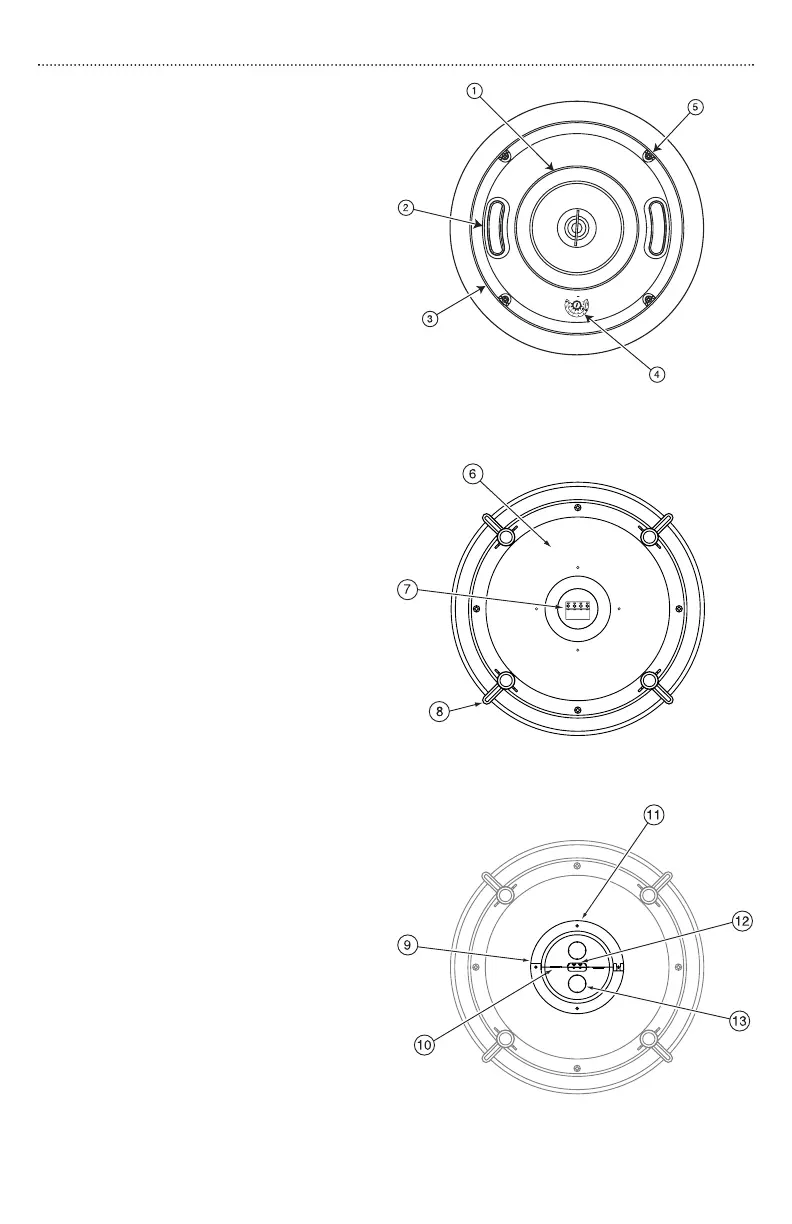

HFCS1 Front Drawing (grille removed)
1. Coaxial Driver Assembly
2. Dual Bass Tuning Vents (x2)
3. Grille Retention Groove
4. Power Tap Selection Switch
5. Mounting Clamp Screws (x4)
HFCS1 Rear Drawing
6. Metal Back Can
7. Snap-Lock Input Connector
8. Mounting Clamps (x4)
HFCS1 Rear Drawing (terminal cover)
9.Terminal Covers (2 identical halves)
10. Eyelets (x2)
11. Mounting Screws (x4)
12.Wire Exit Slot
13. Conduit Knock Out (x2)
HFCS1 Front Drawing
(grille removed)
HFCS1 Rear Drawing
HFCS1 Rear Drawing
(terminal cover)
