Signal Processing
Insert Jacks
Allows external
equipment to be
inserted between
the pre-amp output
and the power
amp input.
Bridging
Connector
Allows system
expansion by
linking multiple
Power Vectors’
mix buses
together.
Remote Volume
Control Terminals
Connect the optional
Remote Volume
Control Panel (RVCP)
to these terminals
to provide remote
operation of the
Master Volume
Control knob.
Mute Control
Terminals
These terminals
make the priority
buses available
externally for
linking Power
Vectors together
into larger systems
or for external
control.
Module Bays
Each of 8 module
bays can accommodate
advanced plug-in input
modules. Bays 7 & 8 also
accept signal-processing
output modules. Up to
4 levels of priority
can be programmed
between modules.
8 Independent Inputs
Each input source is individually
controlled by a corresponding
volume control knob for complete
system customization.
Average/Peak Switch
The Power Vector can register the
average or peak level of the
output signal on the
11-segment LED meter.
Bass & Treble Controls
Select the amount of cut or
boost of bass frequencies
below 100 Hz and treble
frequencies above
10 kHz (bypassable).
Pre-EQ Jack
Output jack provides
unbalanced, buffered output
signal "post" all unit
signal processing, but
"pre" any external signal
processing equipment
connected to the
Insert jacks.
Power Indicator & Switch
An LED indicates whether the
amplifier power status is on or off.
A rocker-type switch applies or
removes power to the amplifier.
Master Volume Control Knob
Controls overall volume level of the mixed
input signals. The control is motorized and
can be adjusted manually or by an optional
remotely mounted control panel.
LED Output Meter
This 11-segment LED
meter monitors the
output signal level of
the power amplifier
or the mixer.
AC Receptacle
Grounded, unswitched
power receptacle
conveniently provides a
maximum 500W capacity
for external equipment.
Speaker Output
Barrier Strip
A 5-position barrier
strip, with clamping
washers, provides
connections for
speaker loads.
Lo-Cut Switch
This slide switch
allows roll off
of frequencies
below 125 Hz
for protecting
horn speakers.
Tone Control
Bypass Switch
This slide switch
allows the effects
of the Front Panel
Bass and Treble
controls to be
bypassed.
Signal/Clip Indicators
A two-color LED indicates the
audio activity for each
of 8 input channels.
Green - The input’s signal is
present on mix bus.
Red - The channel’s input
is being overdriven.
Trans Out/
Direct Out Switch
Amplifier can be used with
70V, 25V, and 8-ohm speaker
systems via its output transformer
or with low-impedance speakers
via direct drive (4Ω min.).

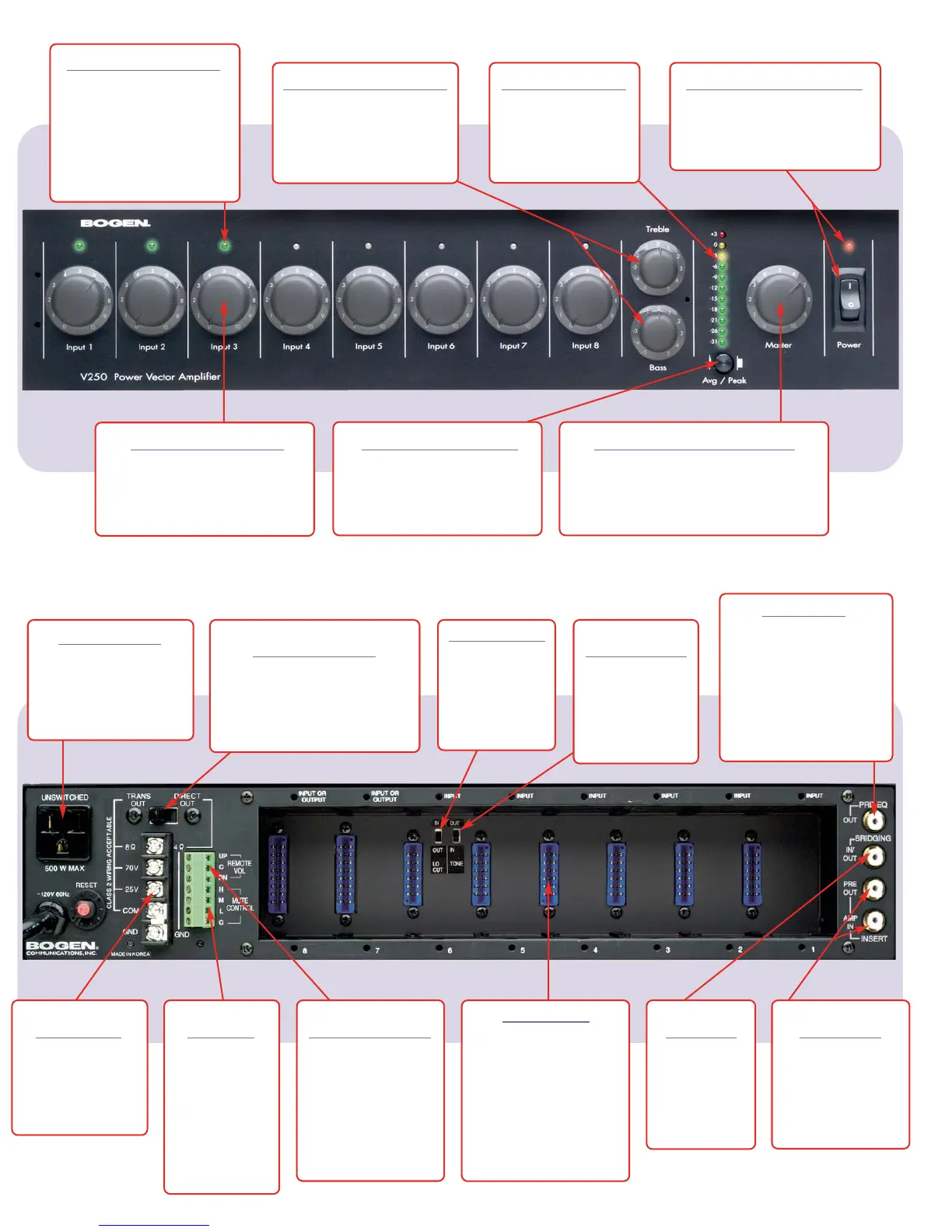

FRONT PANEL
REAR PANEL
TELEPHONE INPUT - TEL1S
Interfaces to Telephone System's Loop Start/Ground Start Trunks
or Paging Ports
• Loop start or ground start trunk interfacing
• Dry loop interface to paging ports
• Audio-activated paging in dry loop
•
Gain/Trim control; Noise gate & Limiter
• Mutes lower priority modules
• Mutable by higher priority modules
• Bus assignable & Transformer-isolated
• Screw terminal connections
Input Modules
BRIDGING INPUT - BRG1R
Daisy Chain Multiple Amplifier Inputs
• Gain/Trim control
• Ground isolated input to eliminate ground loop
• Input signal available at buffered output
• Priority assignable
• Variable ducking level when muted
• Fade back from mute
• Buffered output not muted
• Bus assignable
• RCA input and output connector
MONO AUX INPUT - MAX1R
Unbalanced Mono Input
• Gain/Trim control
• Bass & Treble controls
• Gate feature mutes lower priority modules
• Mutable by higher priority modules
• Variable ducking level when muted
• Fade back from mute
• Bus assignable
• RCA connector
BALANCED INPUT - BAL2S
Stereo, Balanced Input
• Stereo, high-impedance, electronically balanced inputs
• Professional-quality, low noise performance
• Selectable gain of 0 or 18 dB
• Compatible with telephone system page ports
• Mutable by higher priority modules
• Variable ducking level when muted
• Fade back from mute
• Screw terminal connections
STEREO AUX INPUT - SAX1R
Unbalanced Stereo Input
• Gain/Trim control
• Bass & Treble controls
• Gate feature mutes lower priority modules
• Mutable by higher priority modules
• Variable ducking level when muted
• Fade back from mute
• Stereo-to-mono summing option
• Bus assignable
• RCA connectors
MICROPHONE INPUTS - MIC2S, MIC2X
Low-impedance, Electronic-balanced Microphone Inputs
• Gain/Trim control
• High Cut/Low Cut controls
• Enhance control
• Noise gate w/Threshold control
• Limiter w/Threshold control
• 24V Phantom power
• Priority & Bus assignable
• Screw terminals (MIC2S);
XLR connector (MIC2X)
MICROPHONE INPUTS - MIC1S, MIC1X
Low-impedance, Transformer-balanced Microphone Inputs
• Gain/Trim control
• Bass & Treble controls
• Noise gate w/Threshold
& Duration control
• Limiter w/Threshold control
• 24V Phantom power
• Priority & Bus assignable
• Balanced, transformer-isolated
• Screw terminals (MIC1S);
XLR connector (MIC1X)
TRANSFORMER-BALANCED INPUT - TBL1S
Transformer-Balanced AUX Input
• Gain/Trim control
• Bass & Treble controls
•
Transformer-isolated, dual-impedance, line-level input
• Variable ducking level when muted
• Mute send & receive
• Fade back from mute
• Mute send threshold & duration adjustments
• Priority & Bus assignable
• Pluggable screw terminal connections
TONE GENERATOR - TNG1S
Multiple Tone Generator Input
• Level control
• Select 4 of 8 tones to trigger
• Burst/steady, slow whoop, siren, mechanical bell,
Klaxon, night ringer, double chime, & doorbell tones
• Momentary & continuous playback modes
• Microprocessor-controlled
• Priority assignable
• Mute send & receive
• Screw terminal trigger connections
LINE/MIC INPUTS - LMM1S, LMR1S
Actively Balanced Emulated Transformer Inputs
• Input level controlled
by remote panel or direct
voltage (LMR1S)
• Wall Plate Control included
(with LMR1S only)
• Limiter with LED activity
indicator (LMR1S)
• Line/MIC gain switch
• Gain/Trim control
• Bass & Treble controls
• Noise gate w/threshold control
• Fade back from mute
• 24V phantom power
• Priority & bus assignments
• Screw terminal input
• Mutes lower priority modules
• Mutable by higher priority
modules
Accessories
PRS48
48V DC
Power
Supply
LMM1S
MIC1S MIC1X
MIC2S MIC2X
LMR1S
with Remote
Volume Control
Each amplifier can accept up to 8 Bogen input modules, with
user-settable priority levels. Plug-in modules support different
input options including the ability to interface to balanced and
unbalanced high- and low-level inputs, stereo or mono, telephone
PBXs, and microphones. Each amp can accept up to 2 output
signal processing modules, such as Ambient Noise, Parametric
EQ, and Comp/Limiter.
