Bohle Sedimentor 0.3 - Machine and Operating Elements

Operating Instructions Bohle Water Treatment System Sedimentor 9
8. Machine and Operating Elements

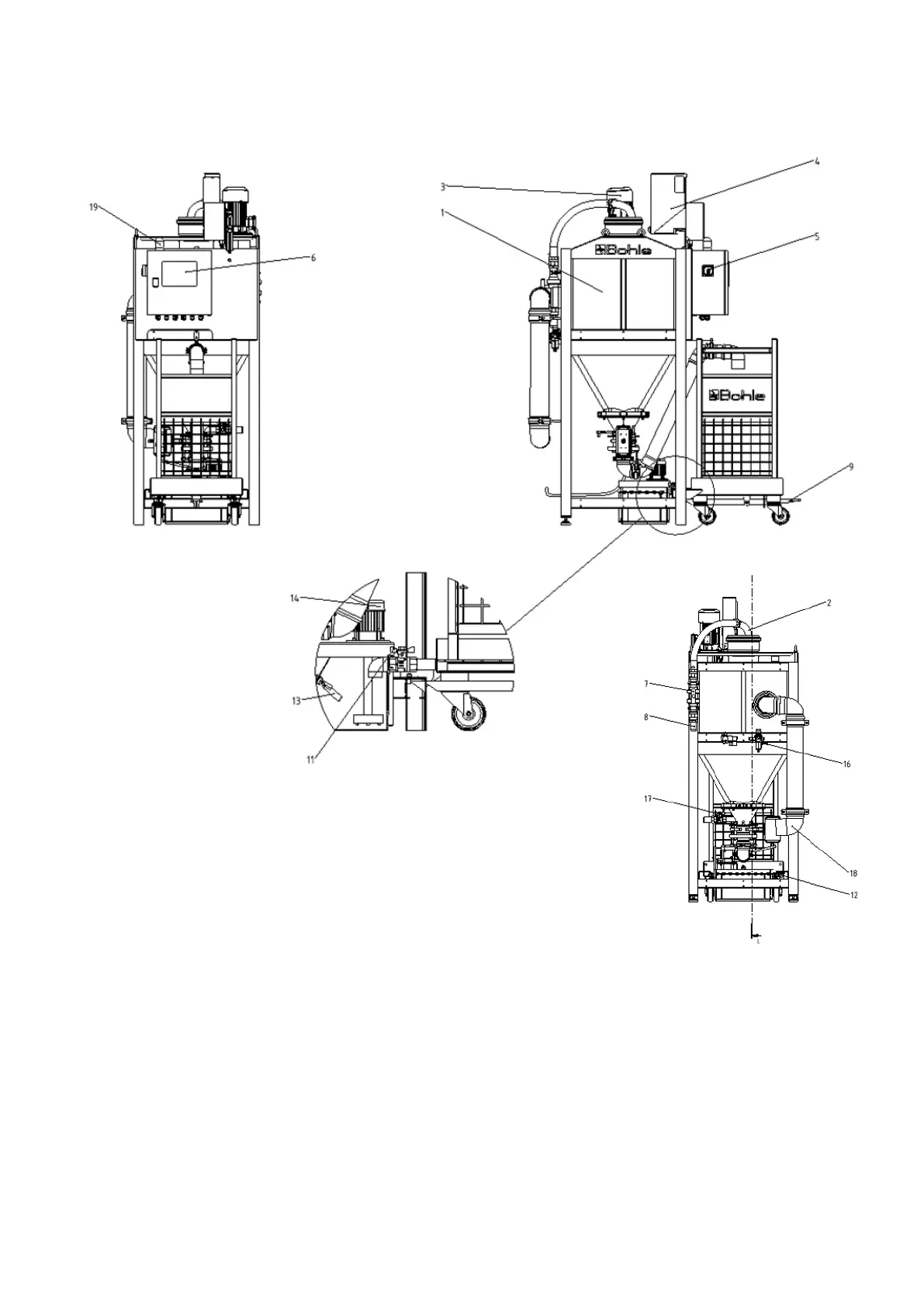

Figure Sedimentor 0.3
1 --> Tank 9 --> Locking catch filter carriage
2 --> Waste water inlet 10 --> Disposable filter bag 17 --> Water tap for removing the container
3 --> Mixer motor 11 --> Water tap filter carriage 18 --> Return flow clean water
4 --> Container for sedimentation granules 12 --> Limit switch filter carriage 19 --> Alarm light
5 --> Main switch 13 --> Float switch filtrate water 20 --> Crank handle
6 --> Touchscreen 14 --> Filtrate pump
7 --> Valve for throttling the waste water 15 --> Filtrate tank
8 --> Waste water inlet 16 --> Compressed air connection
