Bohn BN-LOPTB - Dimensional Data

12
Dimensional Data

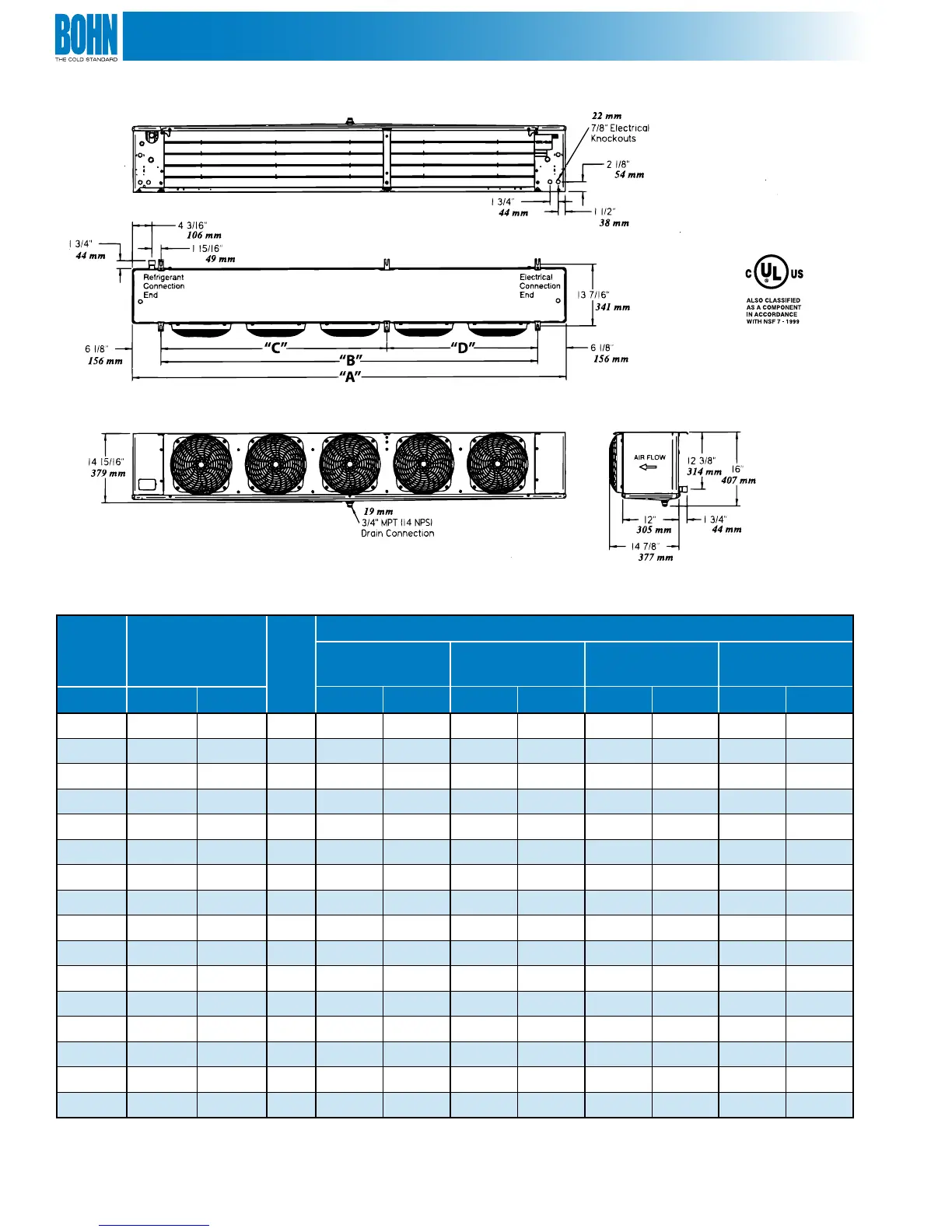

Dimensional Data For All Models
Air
Defrost
Model
Electric and
Hot Gas
Defrost Model
No.
of
Fans
Dimensions
A B C D
6 FPI 6 FPI 4 FPI in. mm in. mm in. mm in. mm
040 035 - 1 29.50 749.3 17.25 438.1 - - - -
052 040 - 1 29.50 749.3 17.25 438.1 - - - -
065 047 041 1 29.50 749.3 17.25 438.1 - - - -
070 - - 2 45.50 1,155.7 33.25 845 - - - -
090 065 - 2 45.50 1,155.7 33.25 845 - - - -
104 - - 2 45.50 1,155.7 33.25 845 - - - -
120 075 068 2 45.50 1,155.7 33.25 845 - - - -
130 090 080 2 45.50 1,155.7 33.25 845 - - - -
140 120 102 3 61.50 1,562.1 49.25 1,251 - - - -
156 - - 3 61.50 1,562.1 49.25 1,251 - - - -
180 140 - 3 61.50 1,562.1 49.25 1,251 - - - -
208 160 - 4 77.50 1,968.5 65.25 1,657 - - - -
- 180 136 4 77.50 1,968.5 65.25 1,657 - - - -
260 200 170 5 93.50 2,374.9 81.25 2,064 48.63 1,235.1 32.63 828.7
312 240 204 6 109.50 2,781.3 97.25 2,470 48.63 1,235.1 48.63 1,235.1
370 280 235 6 109.50 2,781.3 97.25 2,470 48.63 1,235.1 48.63 1,235.1
NOTE: Hanger brackets will accept 3/8” / 9.5 mm hanger rods.
