Bohn BN-LOPTB - Table of Contents; Nomenclature

2
Nomenclature .........................................................................................................................................................................................................2
Features & Benets ...............................................................................................................................................................................................
3
Performance Data & Specications
Air Defrost ....................................................................................................................................................................................................4-5
Electric Defrost ...........................................................................................................................................................................................6-7
Hot Gas Defrost ..........................................................................................................................................................................................8-9
Physical Data ..................................................................................................................................................................................................10-11
Dimensional Data ................................................................................................................................................................................................12
Hot Gas Reverse Cycle Kits ........................................................................................................................................................................13-14
3-Pipe Hot Gas Defrost ......................................................................................................................................................................................15
Replacement Parts by InterLink™ ..................................................................................................................................................................16
Standard Nozzle Selection ...............................................................................................................................................................................
17
Table of Contents
We have made a commitment to customer needs, innovation and environmental stewardship and have dedicated
ourselves to delivering energy-ecient choices. PSC and EC motors will reduce costs, improve the bottom line and
enhance equipment performance and service life.
©2008 Heatcraft Refrigeration Products LLC

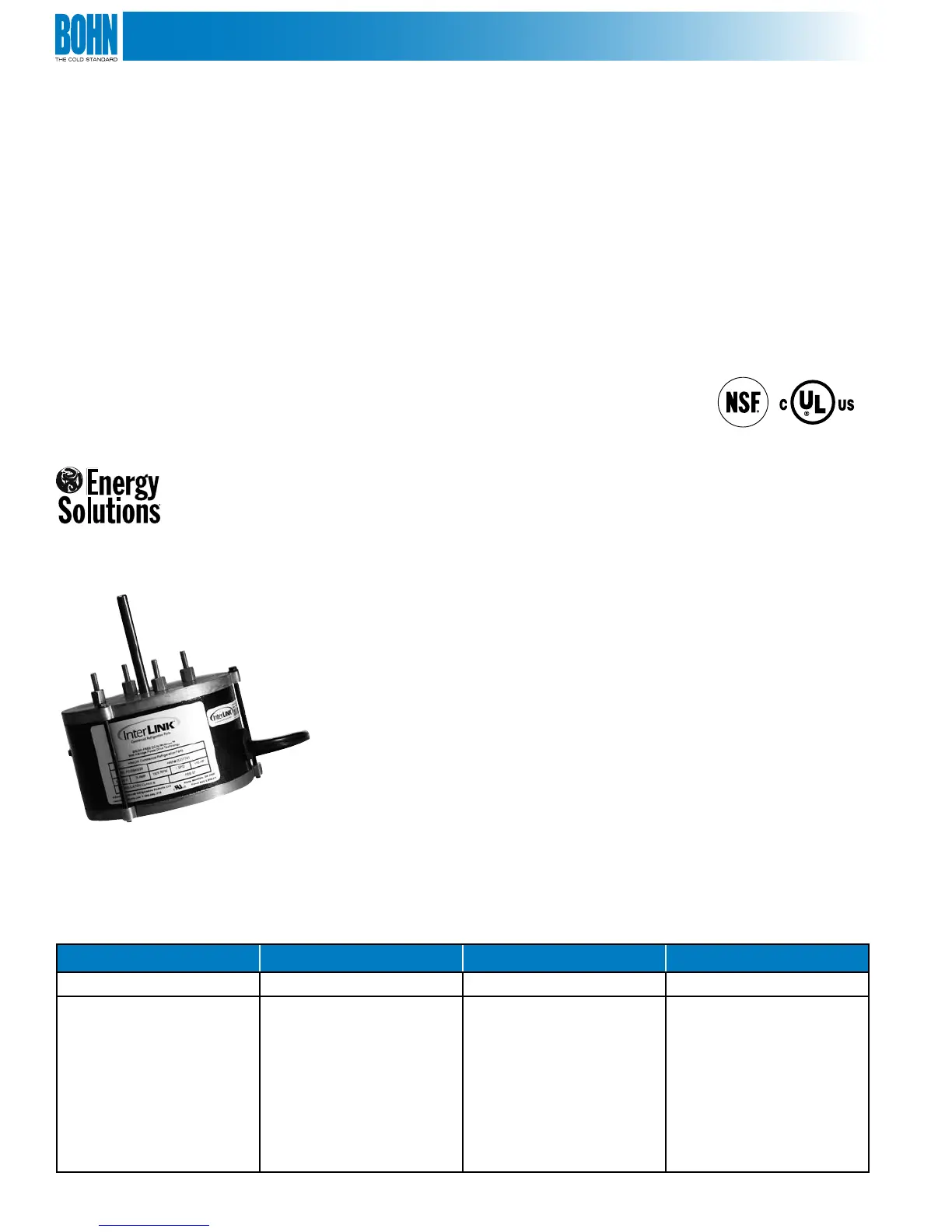

Choose the most energy-ecient motor available for evaporators.
The EC motor is an Energy Solutions® option on new Bohn Low Prole
evaporators. Available on all new equipment or as an easy-to-install,
drop-in replacement aftermarket part from InterLink™ Commercial
Refrigeration Parts. Because they’re a drop-in replacement for existing
shaded pole and PSC motors, installation is quick and easy. It’s a high
impact, quick payback solution for reducing costs and achieving green
initiatives without replacing the entire system.
EC motors by InterLink are up to 75% ecient - that’s a 51-59% increase
over shaded pole motors and a 30-35% increase over permanent-split
capacitor (PSC) motors. With all of this added eciency, you can count
on more energy savings and lower operational costs while taking a
step in the right direction toward conserving our planet’s resources.
To learn more about EC motors, visit www.interlinkparts.com/ec.
Nomenclature
ADT 120 A K
Model Series Capacity Electrical Code Design Revision
ADT = Air defrost
LET = Electric defrost, 6 FPI
LLE = Electric defrost, 4 FPI
HGT = Hot gas defrost
# x 100 = BTUH A = 115/1/60
B = 208-230/1/60
C = 208-230/3/60
M = 460/1/60
AH = 115/1/60 (PSC)
BH = 208-230/1/60 (PSC)
AE = 115/1/60 (EC)
BE = 208-230/1/60 (EC)
CE = 208-230/3/60 (EC)
