AGL-STOV0-01SV0-05
06/12
31
10.2.2 SS1 Direct Stop with error exclusion “short circuit” in the cabinet

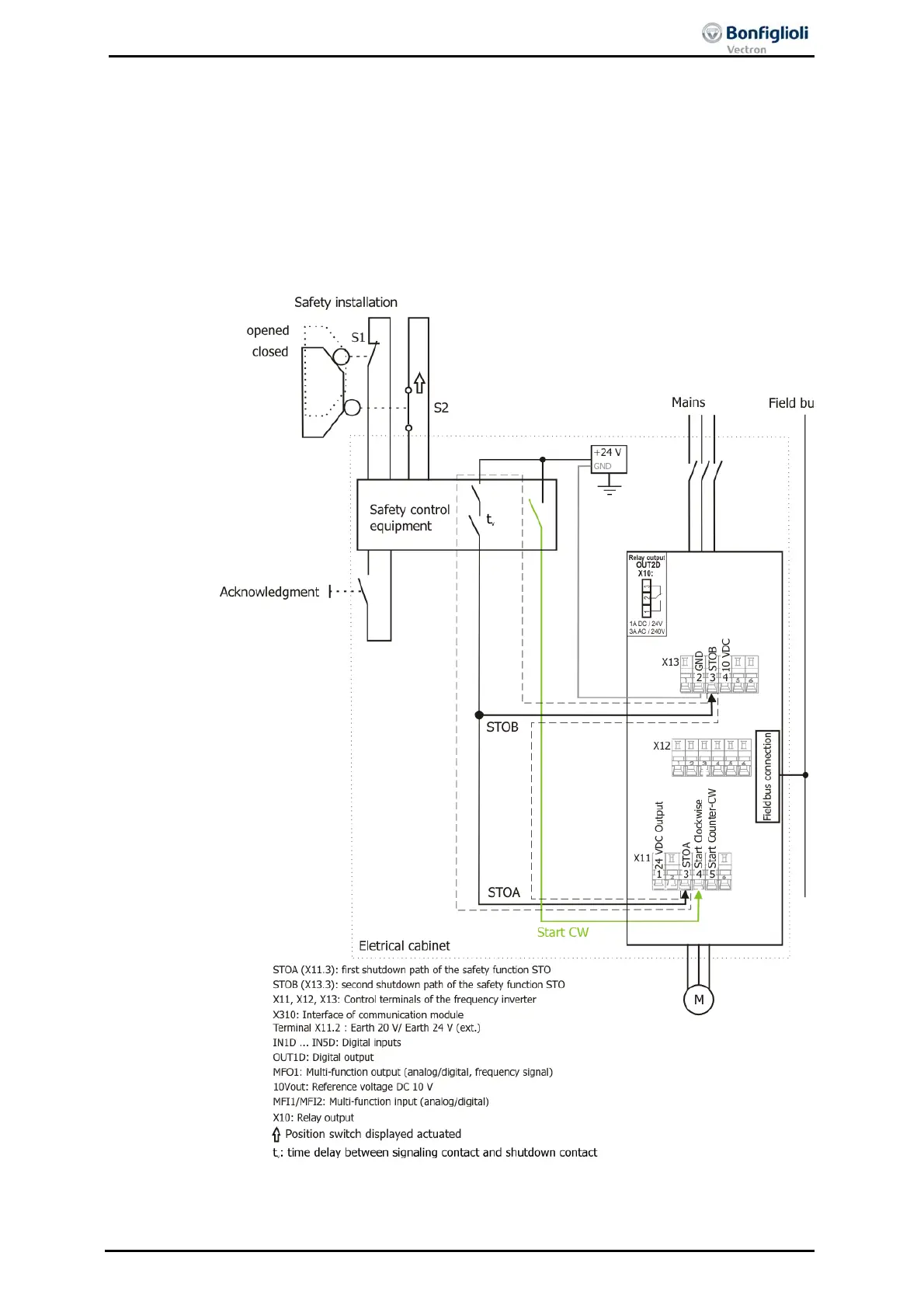

The application circuit shows a drive control system according to EN ISO 13849-1
PL d and Category 3 or IEC 61508 SIL 2 with PLC and safety module. Safety control
equipment with one enable path and interconnection line is implemented instead of
safety control equipment with two enable paths.
Comply with the following conditions:
− Safety control equipment and inverter have to be placed in the same cabinet.
− Error exclusion in case of short circuit has to be ensured for wiring between safe-
ty control equipment and inverter (for example insulated conductor).
