12
STEP 3.2 - ALTERNATIVE WITH RATCHET: ATTACHING ROPES AND RATCHETS
Sides
Contents of pre-made set:
» 5 m long rope with 3 knots (2 on the ends, 1 in the middle)
» 5 m long rope with one not at the end, ratchet at the other end
» 3 m long rope with one not at the end, ratchet at the other end
» Put a carabiner through the knots at both ends of the 5 m long rope with three knots.
» The side clamps on the canvas edge are always in groups of three. Hook the two carabiners with
the 5 m long rope onto the two outer side clamps (safari setup).
» Put a carabiner through the knot at the end of the 3 m long rope and hook the carabiner onto the
knot in the middle of the 5 m long rope that was already attached to the two outer side clamps.
» Put a carabiner through the 5 m long rope with one knot and hook the carabiner onto one of the
eye bolts on the side pole that will be placed in that spot.
» Connect the middle side clamp to the eye bolt on the other side of the side pole using a carabiner.
STEP 3.1: ATTACHING TENSION STRAPS

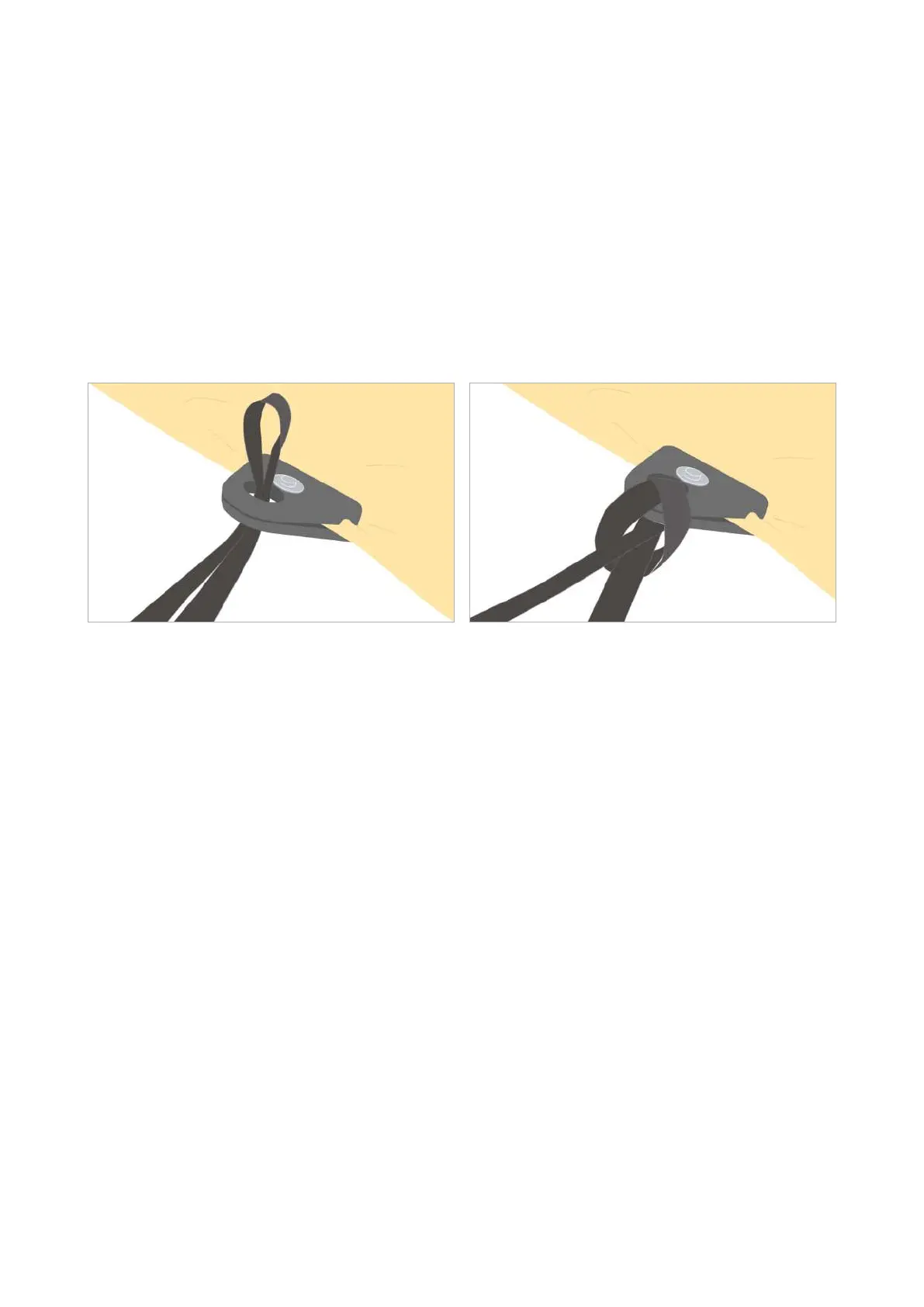

Attach the supplied tension straps to the corner and side clamps as follows.
» Make a loop at the end of the tension strap.
» Pull the loop through the hole in the clamp.
» Pull both ends of the tension strap through the loop.
There is one tension strap on each side clamp. There are two tension straps on each corner clamp.
