Carabiner on corner or side pole Carabiner on side clamp without pole
1.1.1: PREPARING THE STURDY ALUMINIUM POLES (Ø 60 MM): CARABINER + EYEBOLT &
PRE-CUT THREADED ROD
+ 10 m: The pole sets for these tents by default consist of sturdy poles with a diamter of 60 mm.
-10 m: The sturdy aluminium poles are also optionally available for these tents. In that case, they
replace the standard poles with a diamter of 40 mm.
You can also place the poles outside the canvas and bring the canvas to tension using a carabiner
which clicks fast in the side clamp.

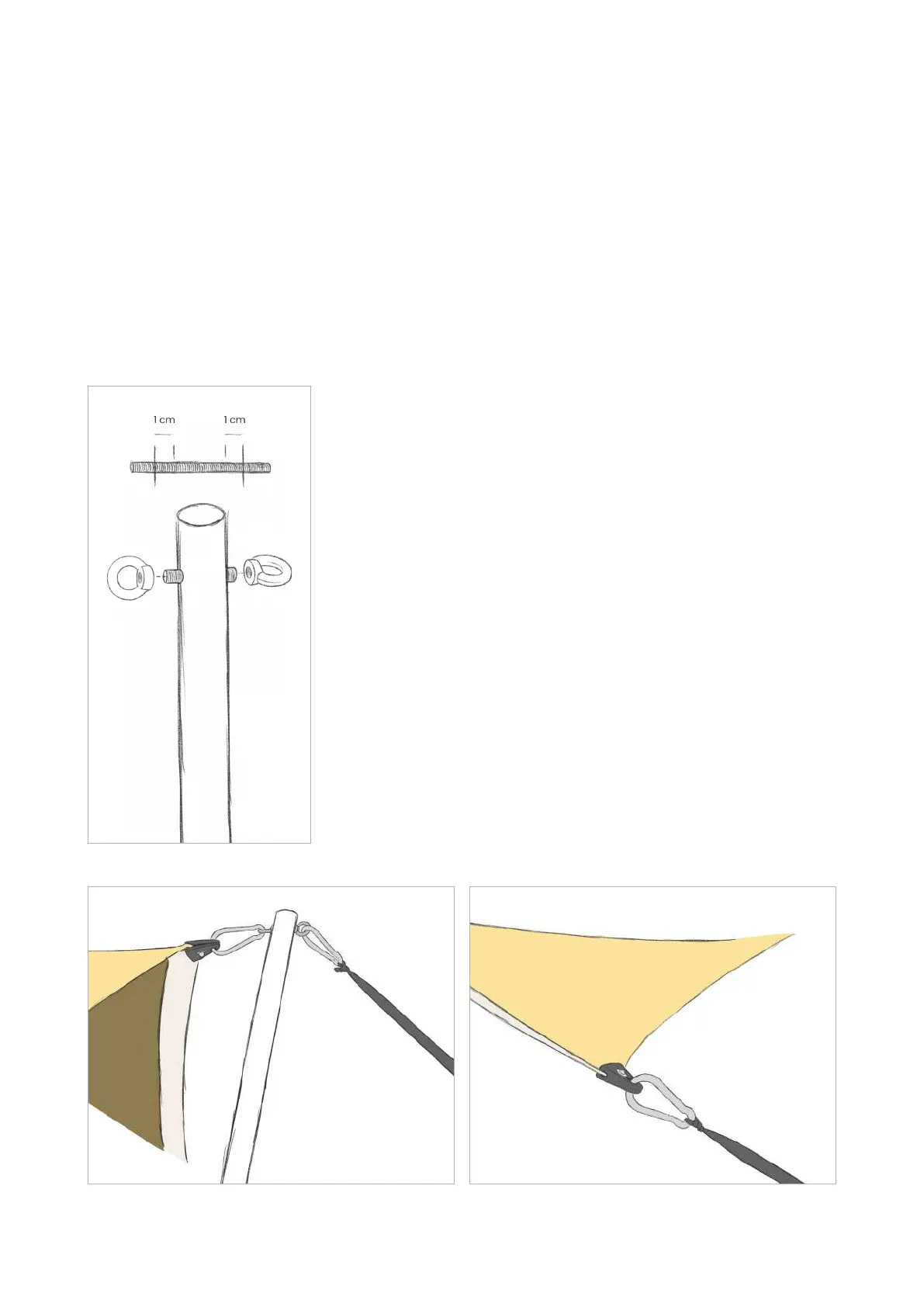

» Attach the threaded rod in the opening and tighten the eyebolt
at both ends.
» Later on the pole will be placed so that the (opening with
the) eyebolts is/are perpendicular on the canvas (see
page ##).
» Connect the side clamp with one eyebolt using a carabiner.
» Bring the canvas to tension by fitting a carabiner with tension
strap to the eyebolt on the other side of the pole which you pull
toward the anchoring point.
» The clamps on the left and right of the pole are also fitted with
a carabiner and pulled individually to the anchoring point.
