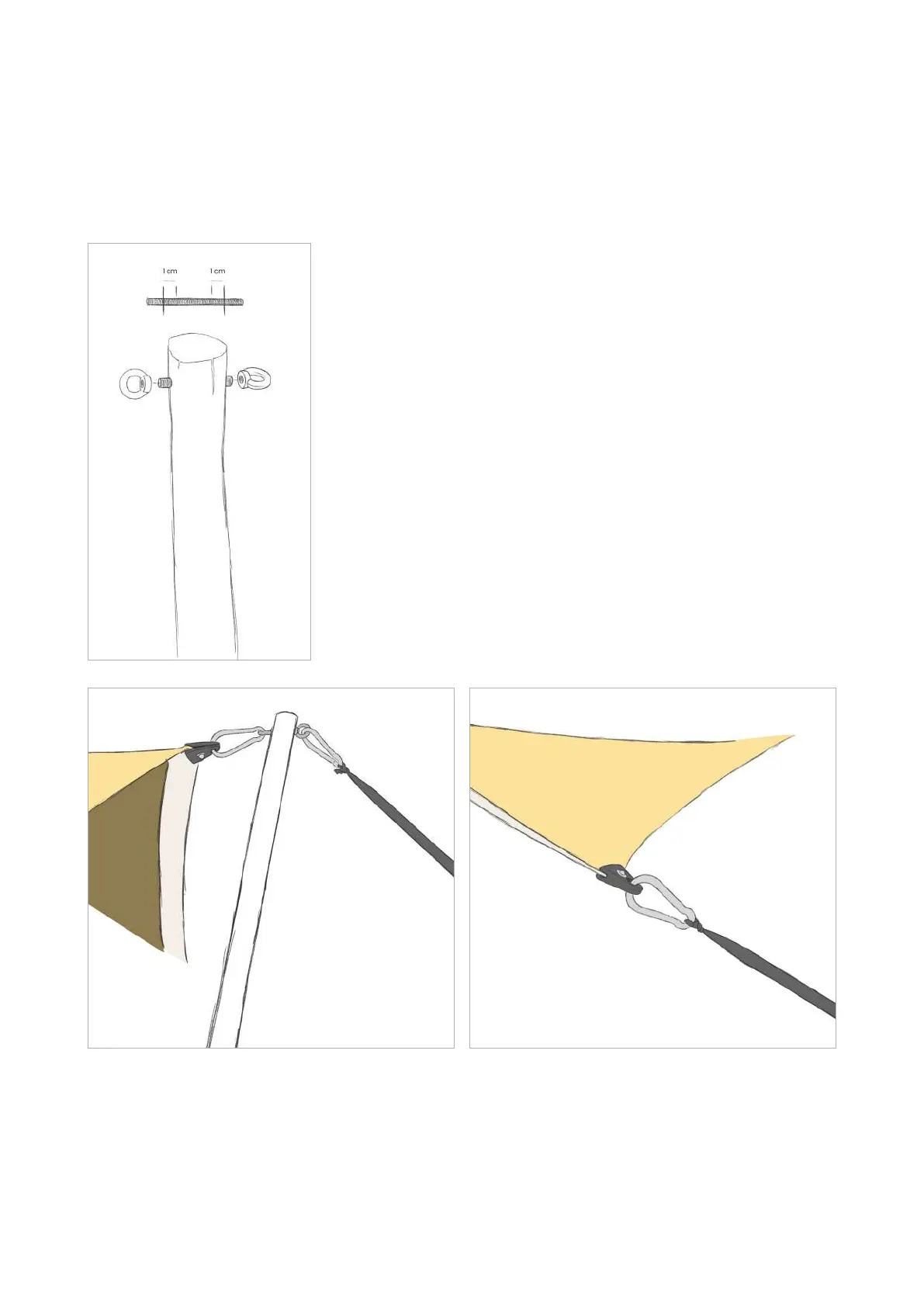

Carabiner on corner or side pole Carabiner on side clamp without pole
1.2.2: RECOMMENDED FOR WOODEN POLES: CARABINER + EYEBOLT & THREADED ROD
You can also place the poles outside the canvas and bring the canvas to tension using a carabiner
which clicks fast in the side and corner clamp.
» Drill a horizontal opening (Ø 10 mm) on the top of the pole. Do
this five to ten cm from the top of the pole.
» Cut the threaded rod to the desired length. Create a protrusion
of 1 cm threaded rod on both sides of the pole.
» Attach the threaded rod in the opening and tighten the eyebolt
at both ends.
» Later on the pole will be placed so that the (opening with
the) eyebolts is/are perpendicular on the canvas (see
page ##).
» Connect the side clamp with one eyebolt using a carabiner.
» Bring the canvas to tension by fitting a carabiner with tension
strap to the eyebolt on the other side of the pole which you pull
toward the anchoring point.
» The clamps on the left and right of the pole are also fitted with
a carabiner and pulled individually to the anchoring point.
9
