1.2.1: POLE CAP WITH ADAPTOR FOR WOODEN POLES

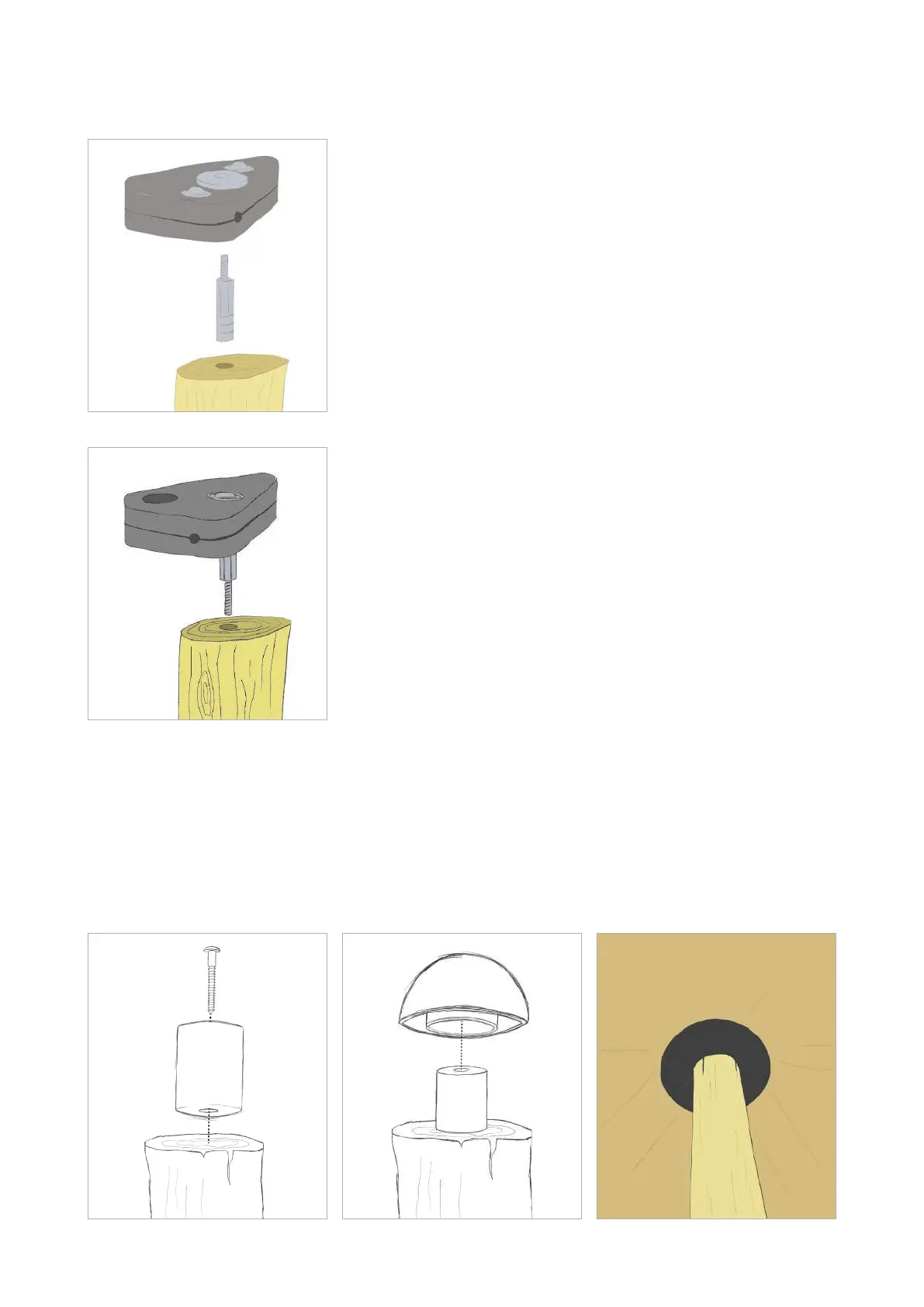

Screw the adaptor for wooden poles to the top of the centre using a screw of around 10 cm. Now
slide the supplied pole caps (small or XL) over the wooden adaptor.
When the poles have plates at both ends, you can fix the adaptor by screwing through the opening
in the plate. You don’t have to remove the plate.
Side clamp: The supplied cap nuts go onto the long bolt
of the side clamps which are attached to a wooden pole. If
everything has been assembled correctly, the assembly will
fit perfectly in the pre-drilled 16 mm hole.
Corner clamp: Screw the two nuts and the connector nut on
the bolt up to the head of the bolt. Then screw the bolt on the
corner clamp until it’s firmly secured.
