3. INSTALLATION INSTRUCTIONS
3.1. ENVIRONMENT
While closed, the M3628ACF is water, dust, and crush resistant. When open and in
operation, the unit should be used only in dry, clean areas. Ensure that the interior of
the unit casing is kept dry.
3.2. WIRING AND CUSTOMER CONNECTIONS
3.2.1. POWER WIRING
The Power Input connector accepts 50-60Hz from the included standard C13
power cable. The DC Output connectors supply DC voltage at the user-
selected level via a pair of banana connectors. Output leads can be
constructed as needed.
The unit should be powered ON before connecting to a load, as the unit is in
discharge mode when powered off.

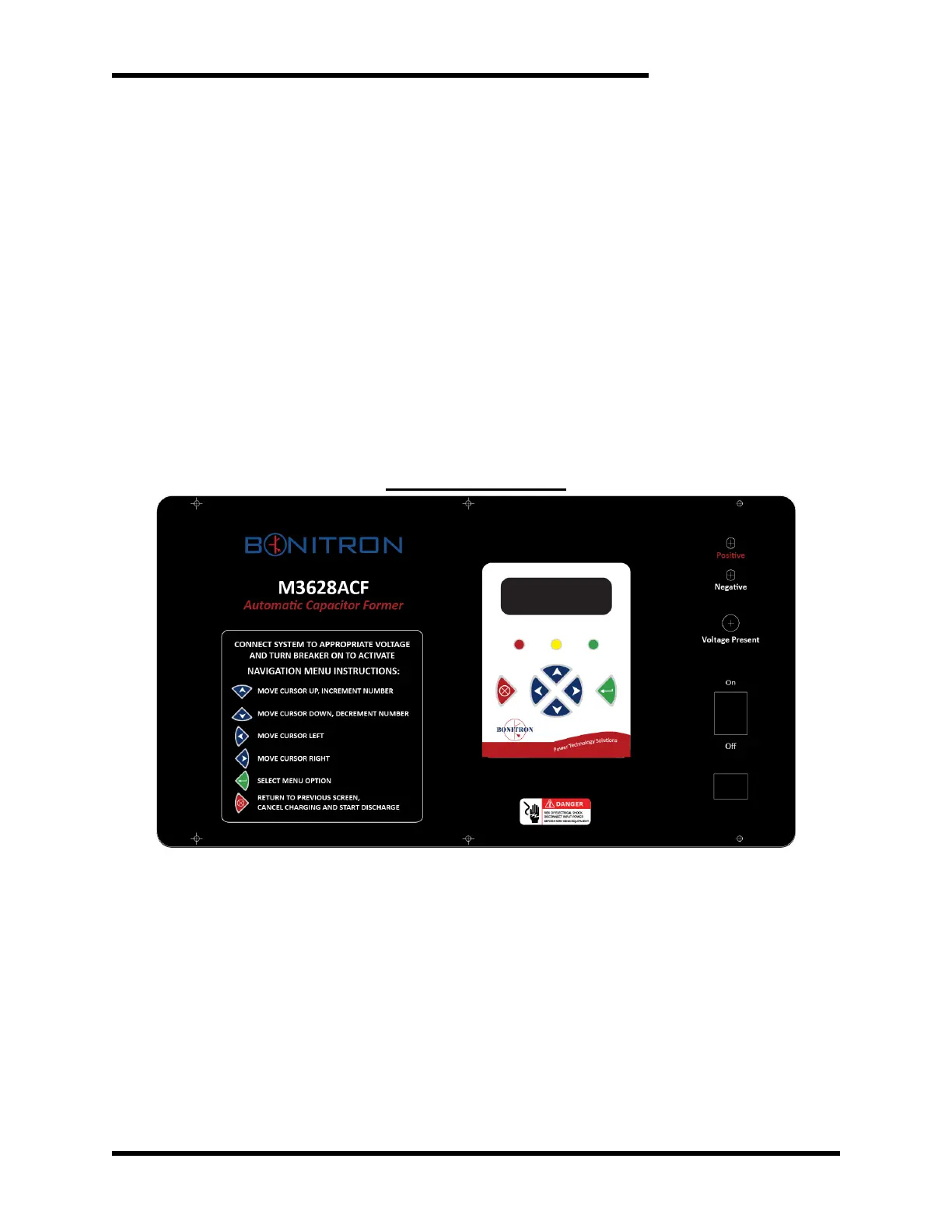

Figure 3-1: M3628ACF
3.2.2. SOURCE CONSIDERATIONS
Input voltage should not exceed 120VAC / 240VAC or damage to the unit
may result. The source must be capable of supplying at least seven (7)
amps to guarantee correct system operation at all output voltages.
