bonitron M3628ACF - 6 Engineering Data; Ratings Chart; Block Diagram

User’s Manual
23

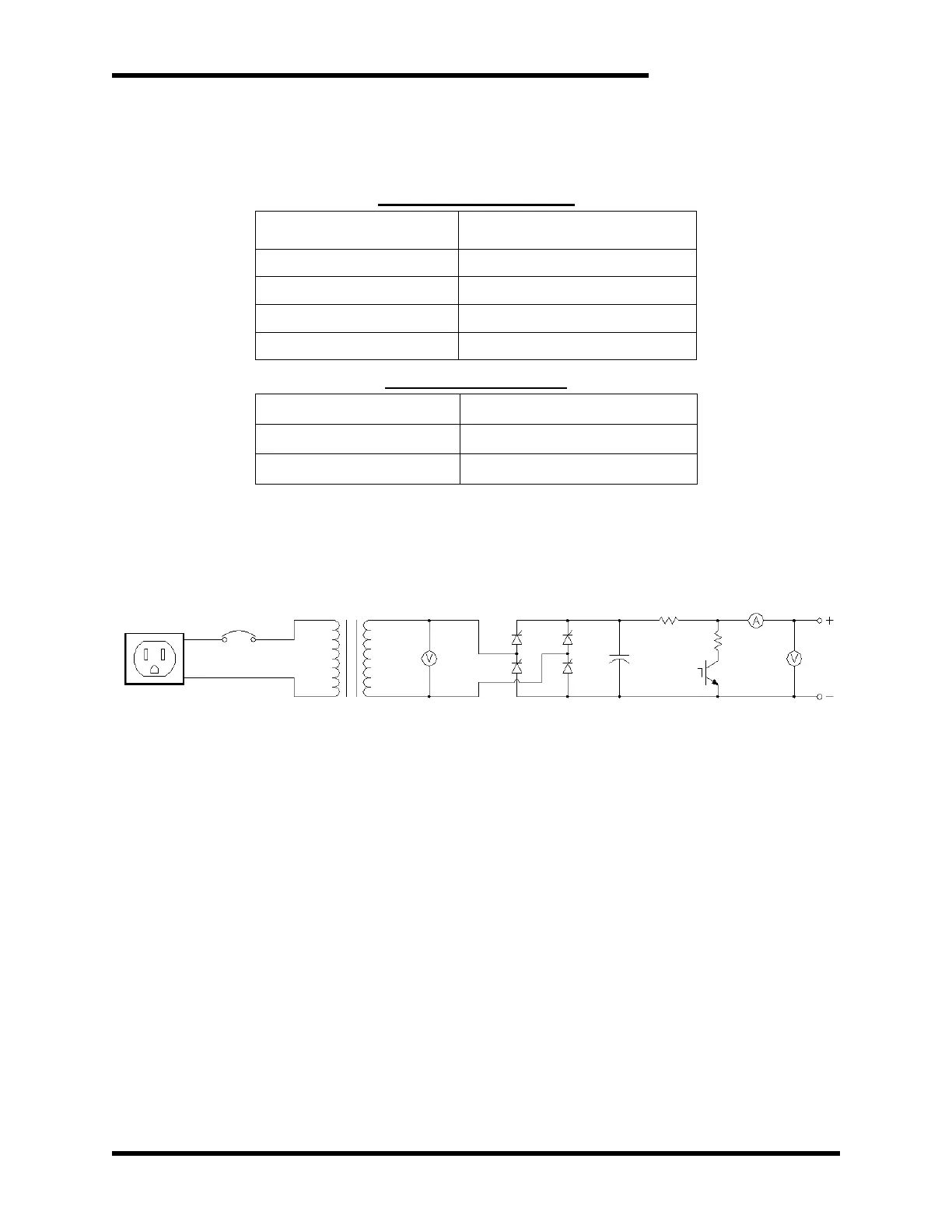

6. ENGINEERING DATA
6.1. RATINGS CHART
Table 6-1: Ratings Chart
Input Voltage
110 - 120VAC
220 – 240VAC
Output Voltage
0 - 1000VDC
Output Current
0 - 1000mA
Discharge Resistor
240 Ohm
Isolation Transformer
1 kVA
Table 6-2: Dimensions
Height
9 in. (with top closed)
Width
13.9 in.
Depth
18.0 in.
6.2. BLOCK DIAGRAM
