12
ENBoretti Ibrido / User guide - Installation advice

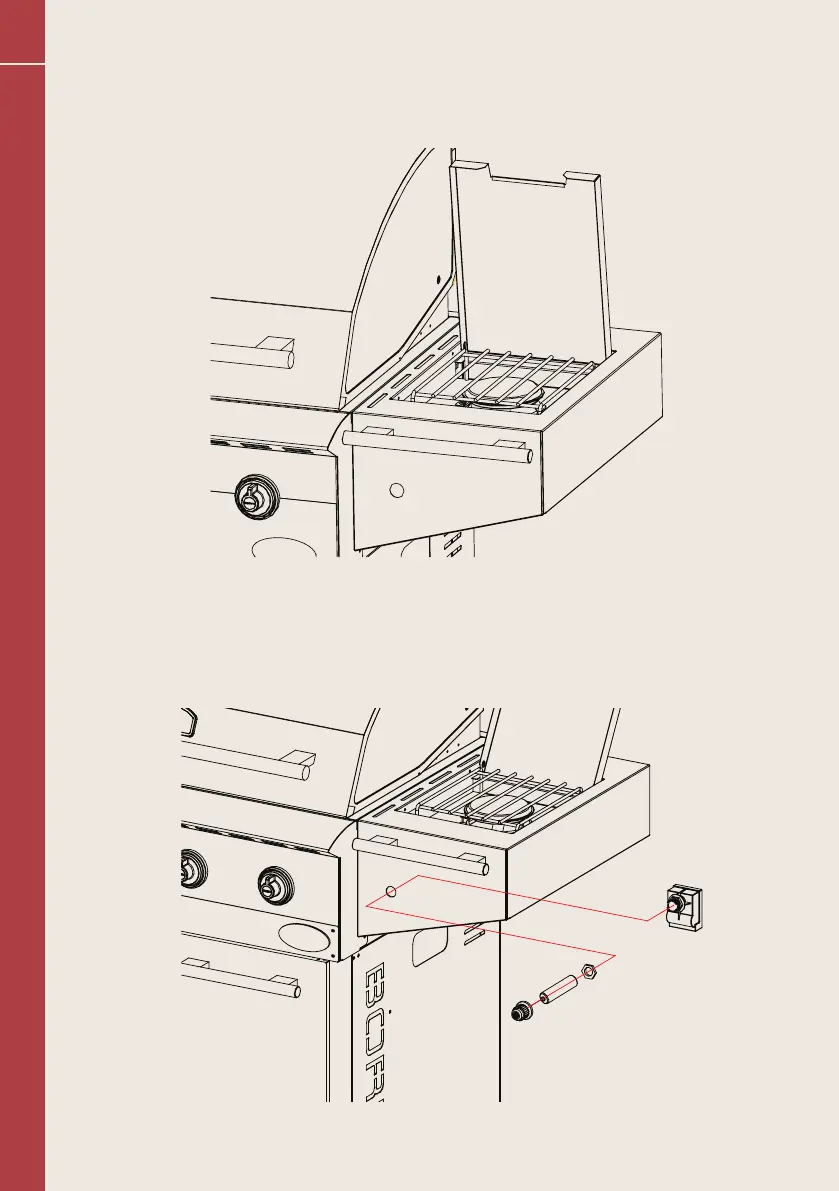

Step 3
Install the side burner using the 2 M4x5 screws. Replace the pan support.
Step 4 - a) Slide the threaded section of the igniter through the igniter opening on
the front of the side table and install the lock nut.
b) Place the battery in the holder with the positive side facing outward.
c) Screw the ignitercap on the igniter.
