ENBoretti Ibrido / User guide - Installation advice
Step 9
Slide the grease collector tray in the guide rails under the burners.
Step 10 - a) Position the upper row of the flame distributors in the cut-outs. Ensure
that the flame distributors are placed with the long side next to the
charcoal tray.

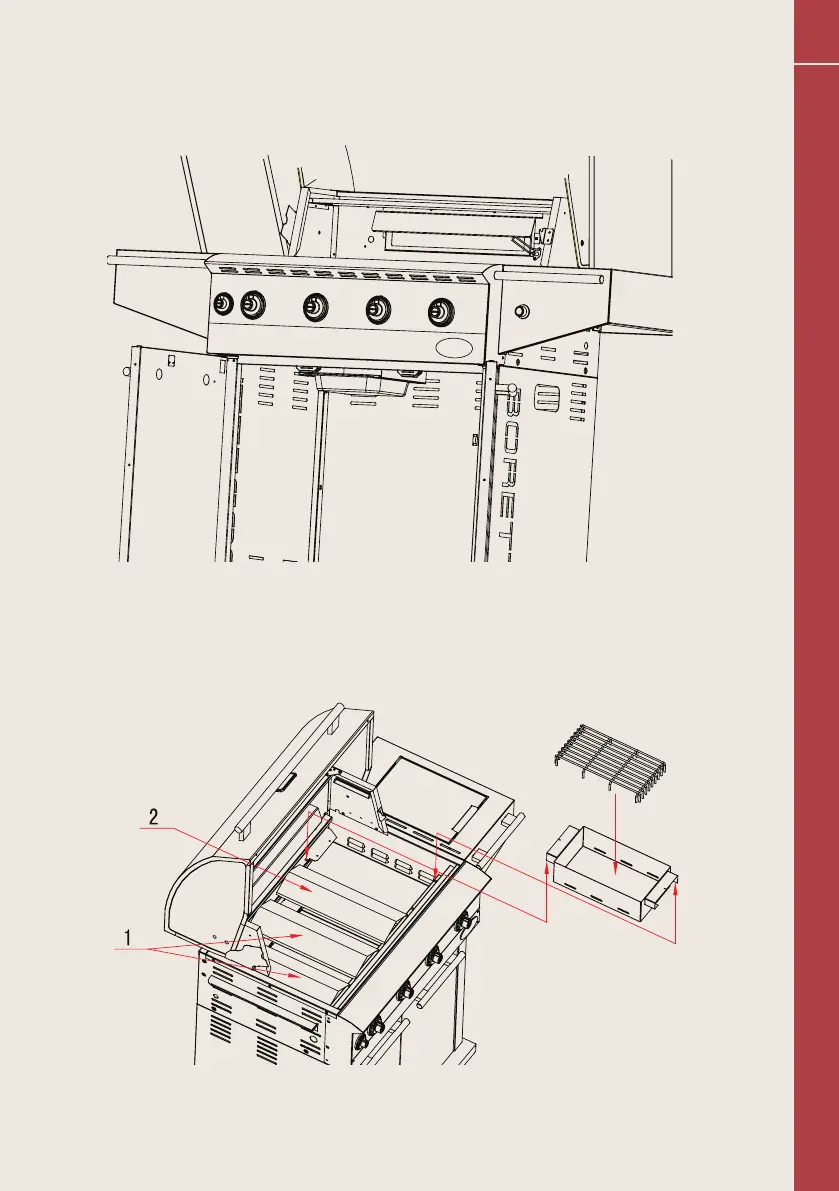

b) Mount the charcoal tray as seen on the picture below.
