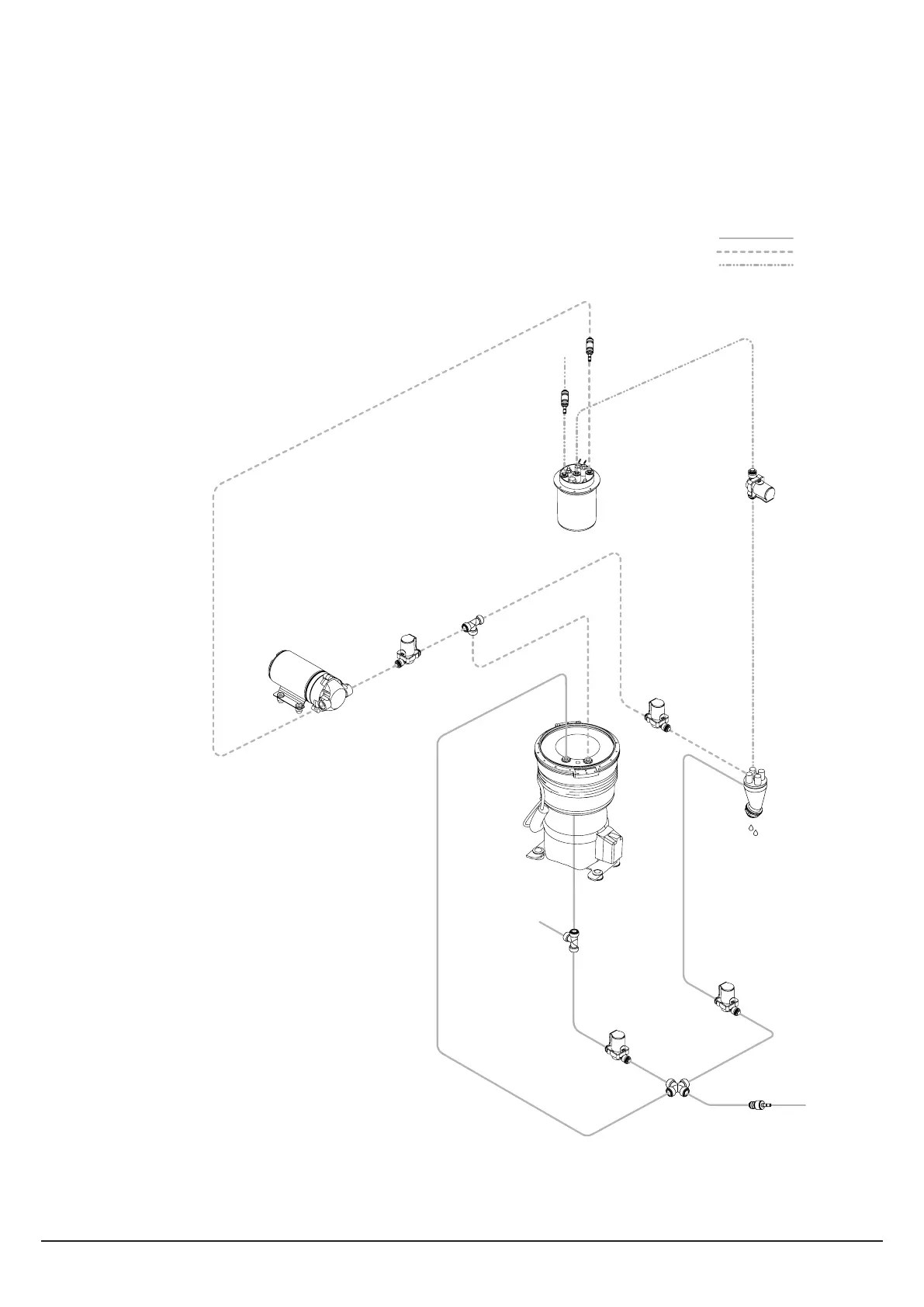

Chilled, Ambient & Sparkling Water Pathway Diagram
WATER IN
DRAIN
FAUCET
AMBIENT
CHILLED
DIRECT CHILL TANK
& COMPRESSOR
CO2 IN
NON RETURN
VALVE
CARBONATION
MOTOR
NON RETURN
VALVE
SPARKLING
SPARKLING WATER
SOLENOID
SPARKLING TANK
SOLENOID
COLD WATER
SOLENOID
AMBIENT WATER
SOLENOID
DIRECT CHILL TANK
SOLENOID
GRIT
FILTER
