BORGUSI CTM5102 - Folding Instructions; Folding Procedure - Pulling Up; Folding Procedure - Pulling Down

- 5 -
STEP 4:
STEP 5:

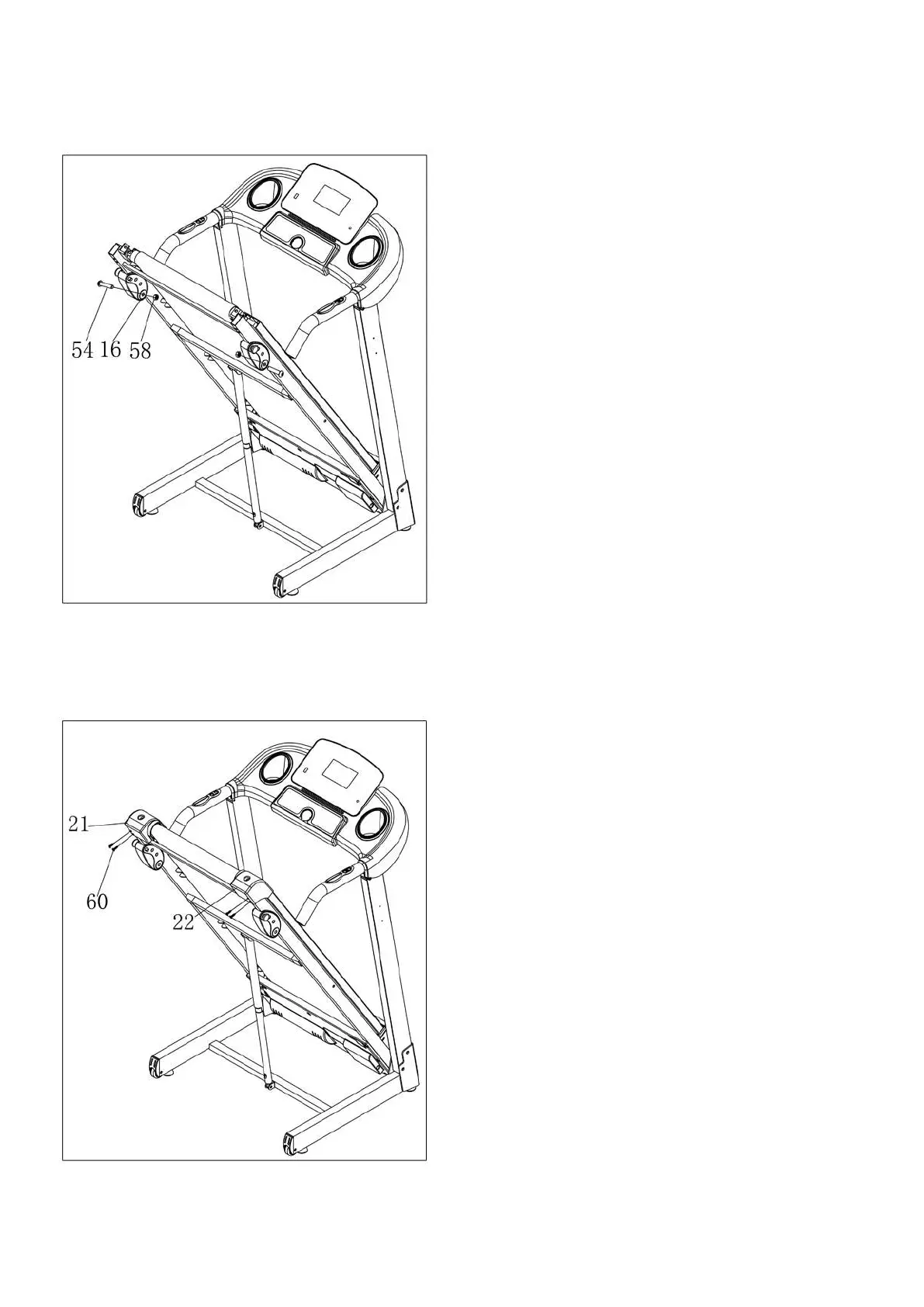

1. Fold up the Main frame (1) firstly.
2. Use the Bolt (54) and the Lock nut (58)
to lock the Adjustable pad (16) into the
Main frame (1). Refer to the picture left.
3. Use the Wrench with screwdriver (61)
and the 5# Allen wrench (12) to lock the
bolt tightly.
4. Right side is the same as the left side.
Notice: Not to lock the bolt too tight.
1. Put the Left back end cap (21) to the
Main frame (1), then use the Wrench with
screwdriver (61) and the Bolt (60) to lock
the Left back end cap (21) onto the Main
frame (1).
2. Right side is the same as the left side.
