- 5 -

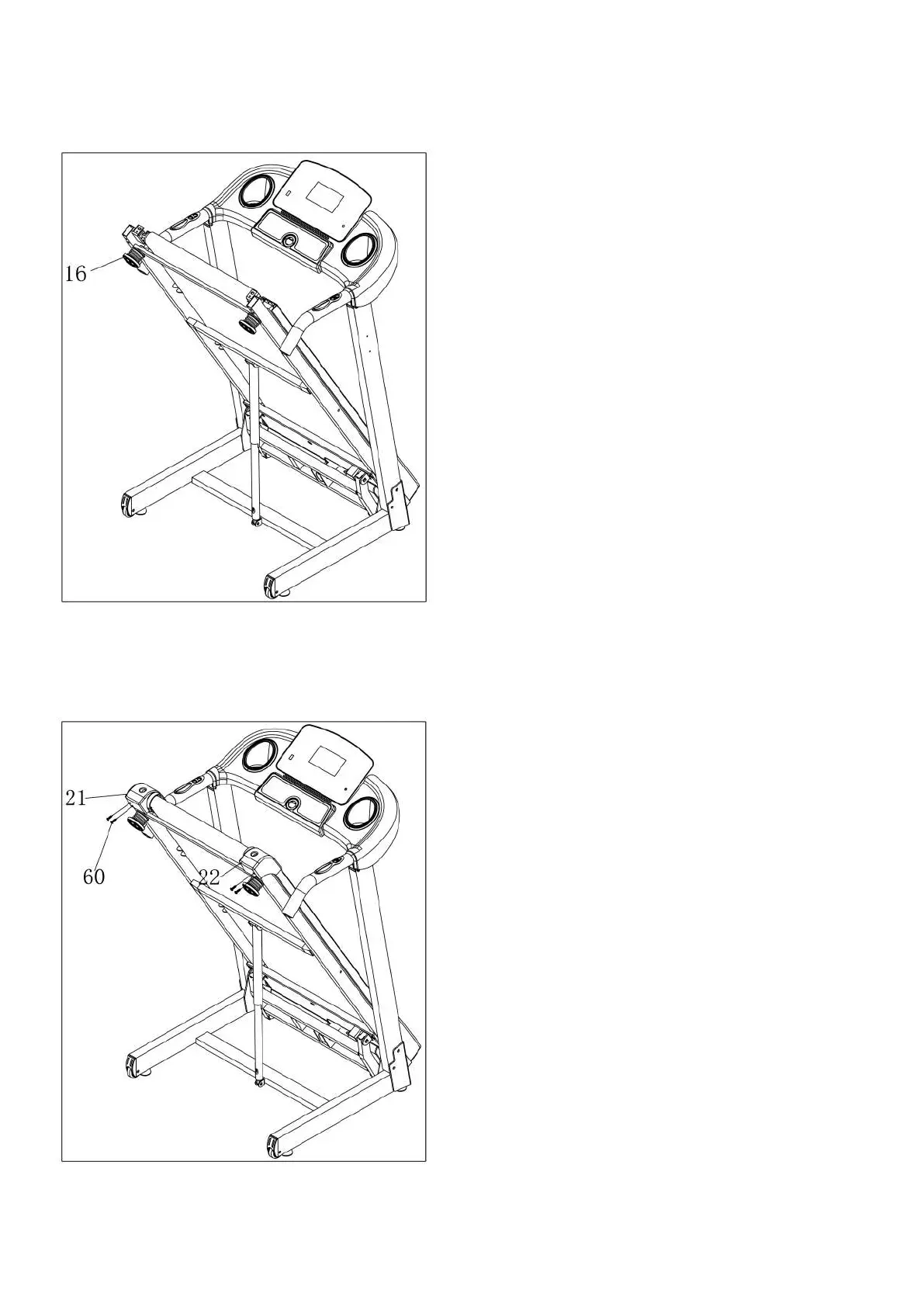

STEP 4:
STEP 5:
1. Fold up the Main frame (1) firstly.
2. Tighten the Rubber foot pad (16) into
the Main frame (1).
3. Right side is the same as the left side,
such as the left view.
1. Put the Left back end cap (21) to the
Main frame (1), then use the Wrench with
screwdriver (76) and the Bolt (60) to lock
the Left back end cap (21) onto the Main
frame (1).
2. Right side is the same as the left side.
To Next Page
