The following table shows the options for the dry out/in contacts:
Dry Out Signal
Description
Summary Alarm
Activated when any warning occurs
On Battery
Activated when the UPS is operating from batteries
Battery Low
Activates with the batteries low alarm (Alarm Code: 12)
UPS ok
Activated when the UPS has no active alarms or faults
On Bypass
Activated when UPS is operating on Bypass Output
Dry in Signal
Description
Disable
Disable the function
UPS On
One second pulse activated, the UPS turns on when the UPS is not
on inverter. It is the same as a remote button to control the UPS
Status.
UPS off
One second pulse activated, the UPS turns off when the UPS is on
inverter. It is the same as a remote button to control the UPS
Status.
Maintain Bypass
One second pulse activated, the UPS transfers to bypass mode. To
recover the UPS to normal status, first deactivate the signal, and
then the UPS needs to be turned on via manual operation.

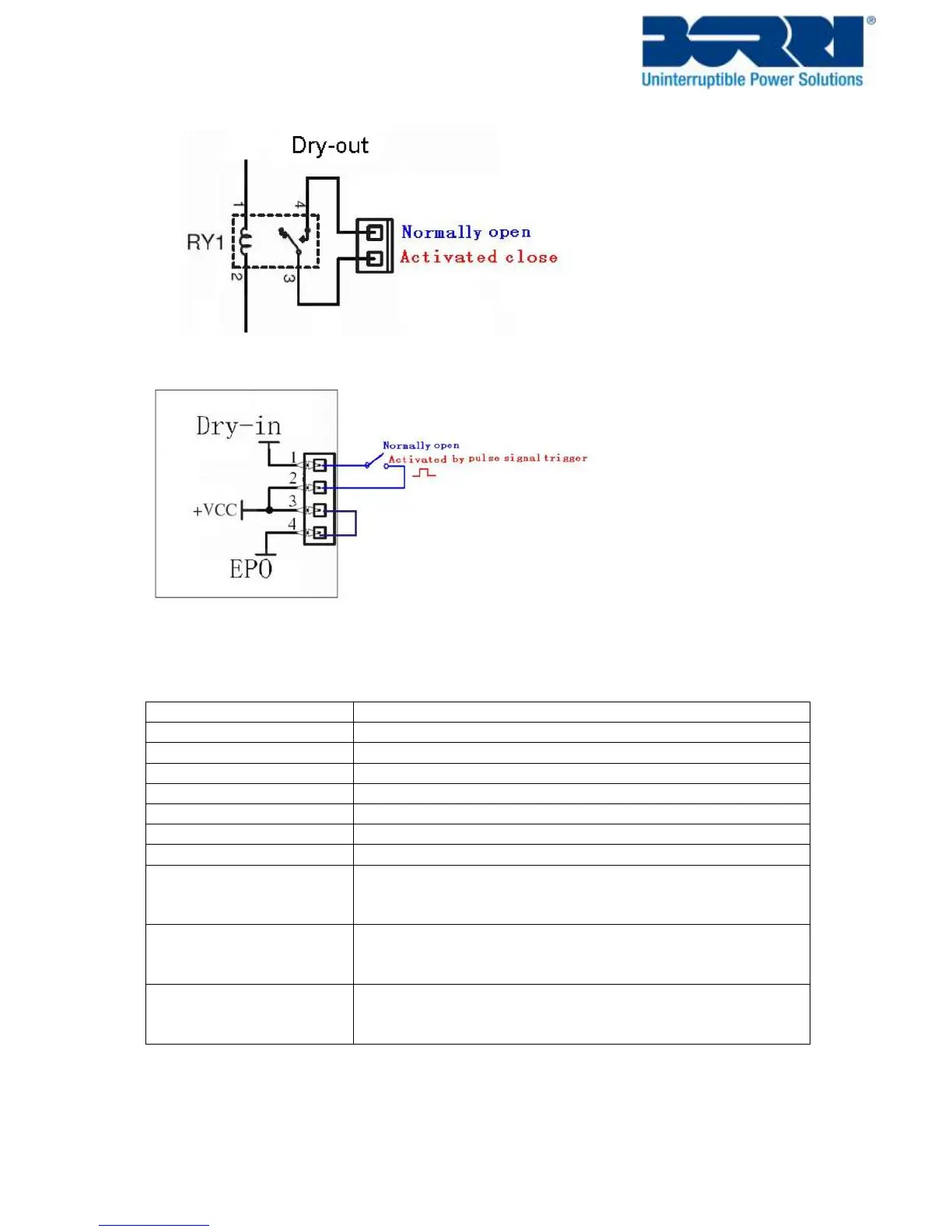

Dry Out contact schematic
Dry In contact schematic
