Internal batteries
The UPS can have internal batteries.
Servicing of batteries should performed by qualified personnel only.
Replace the batteries with the same number of block and capacity.
Replace only with original type.
CAUTION: do not dispose of batteries in fire. The battery may explode.
CAUTION: do not open or mutilate batteries. Released electrolyte is harmful to
the skin and eyes. It may be toxic.
CAUTION: do not dump the exhausted batteries in the environment.
4.4.1 Battery connection and positioning
Battery voltage
After the battery installation, before closing BCB, check the battery voltage on the
BCB circuit breaker.
In case of not directly supplied cabling, please connect the cables to the battery
breaker (BCB) as shown in the below picture.

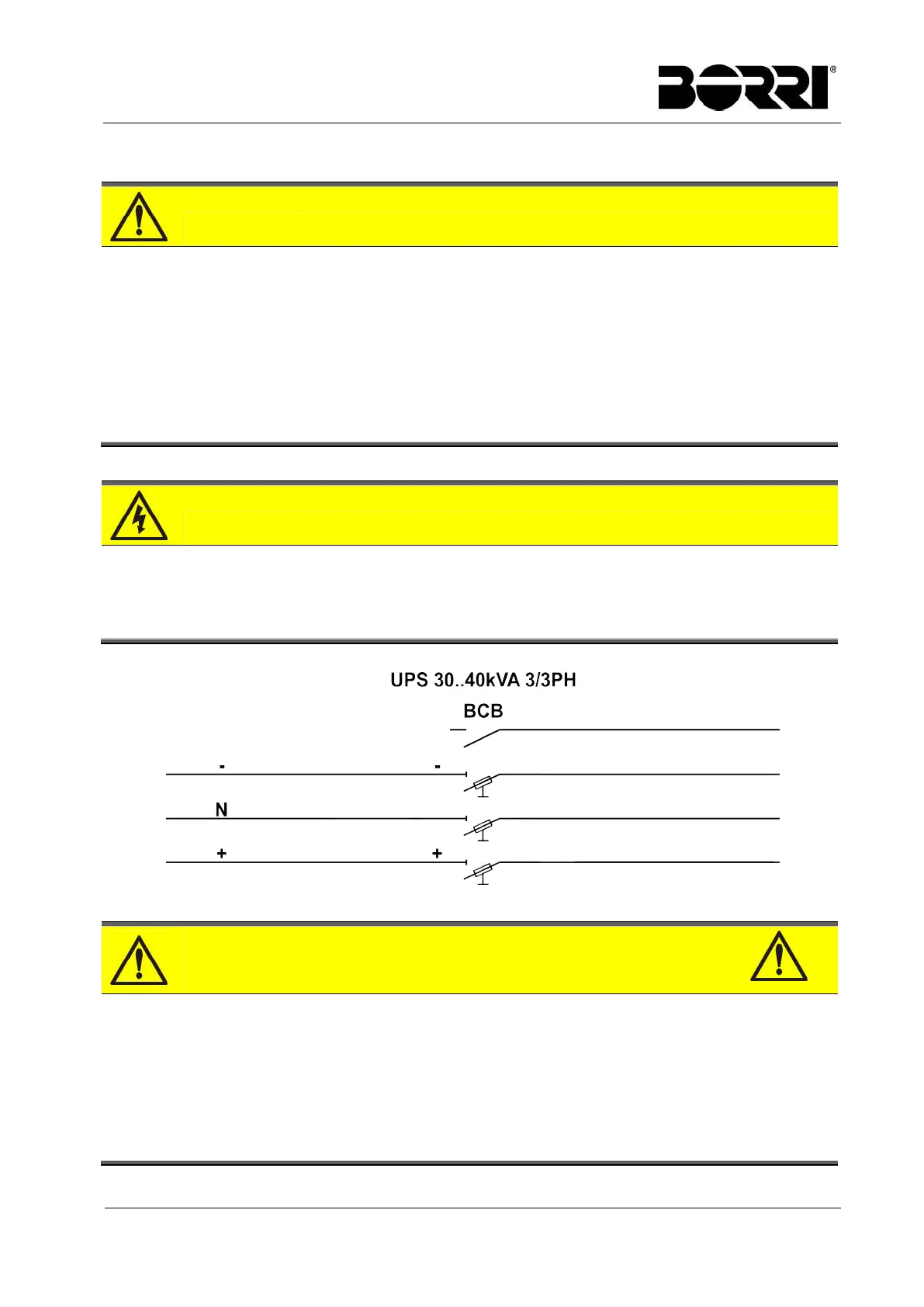

Picture 8 – Cabling of BCB fuse holder
Indications for handling battery trays
Indications for handling battery trays.
During the handling of the trays make sure that each tray leans on the lateral support
guides.
IT IS MANDATORY to make sure that the tray does not come into contact with the
batteries in the tray below. Always keep the tray horizontal position.
SEQUENCE ORDER TRAY EXTRACTION: Tray 1 - 2 - 3 - 4 - 5 - 6
SEQUENCE ORDER INSERTION TRAYS: Tray 6 - 5 - 4 - 3 - 2 - 1
