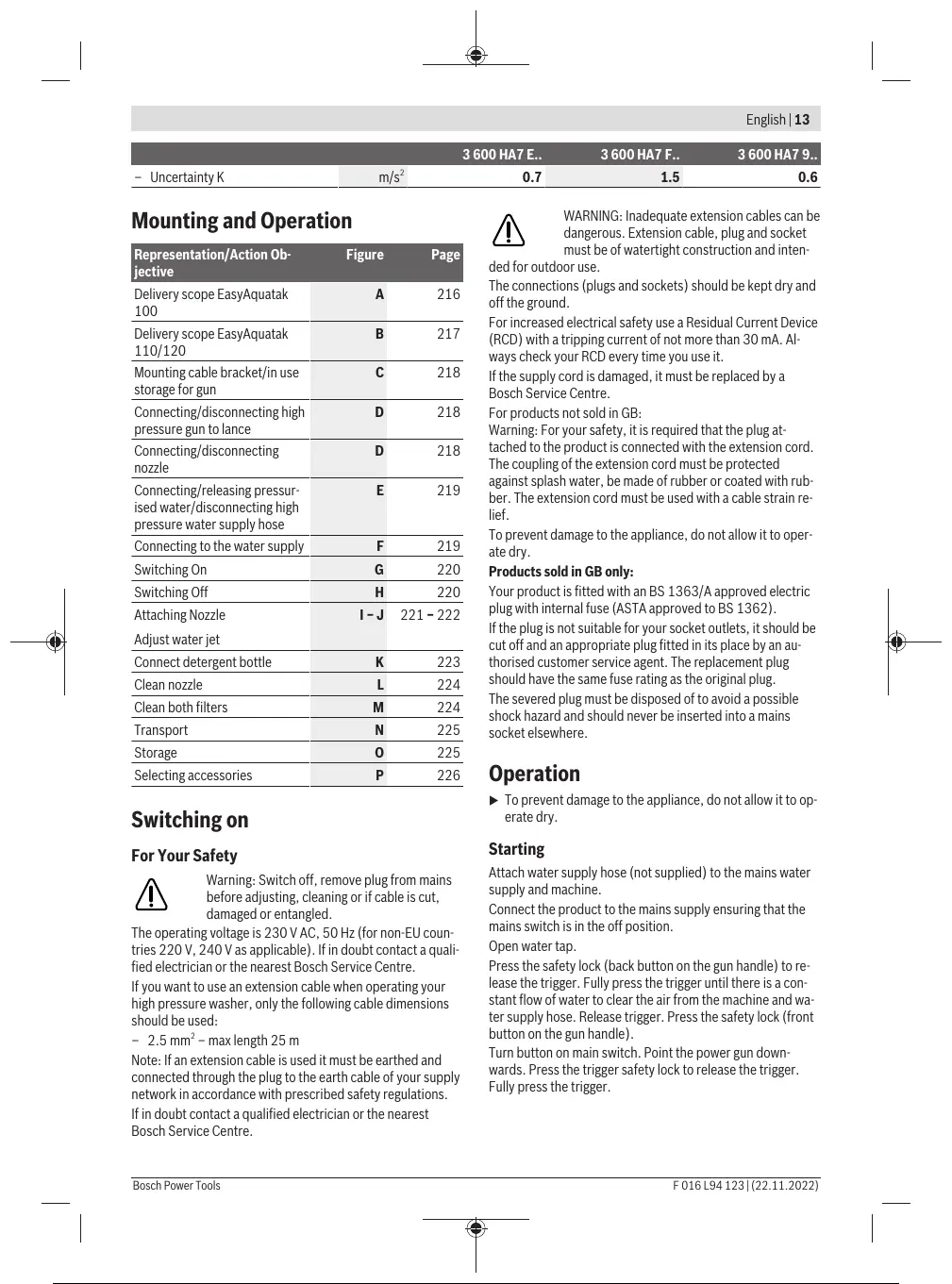

English | 13
3 600 HA7 E.. 3 600 HA7 F.. 3 600 HA7 9..
– Uncertainty K m/s
2
0.7 1.5 0.6
Mounting and Operation
Representation/Action Ob-
jective
Figure Page
Delivery scope EasyAquatak
100
A
216
Delivery scope EasyAquatak
110/120
B
217
Mounting cable bracket/in use
storage for gun
C
218
Connecting/disconnecting high
pressure gun to lance
D
218
Connecting/disconnecting
nozzle
D
218
Connecting/releasing pressur-
ised water/disconnecting high
pressure water supply hose
E
219
Connecting to the water supply
F
219
Switching On
G
220
Switching Off
H
220
Attaching Nozzle
Adjust water jet
I − J 221 − 222
Connect detergent bottle
K
223
Clean nozzle
L
224
Clean both filters
M
224
Transport
N
225
Storage
O
225
Selecting accessories
P
226
Switching on
For Your Safety
Warning: Switch off, remove plug from mains
before adjusting, cleaning or if cable is cut,
damaged or entangled.
The operating voltage is 230VAC, 50Hz (for non-EU coun-
tries 220V, 240V as applicable). If in doubt contact a quali-
fied electrician or the nearest Bosch Service Centre.
If you want to use an extension cable when operating your
high pressure washer, only the following cable dimensions
should be used:
– 2.5mm
2
– max length 25m
Note: If an extension cable is used it must be earthed and
connected through the plug to the earth cable of your supply
network in accordance with prescribed safety regulations.
If in doubt contact a qualified electrician or the nearest
Bosch Service Centre.
WARNING: Inadequate extension cables can be
dangerous. Extension cable, plug and socket
must be of watertight construction and inten-
ded for outdoor use.
The connections (plugs and sockets) should be kept dry and
off the ground.
For increased electrical safety use a Residual Current Device
(RCD) with a tripping current of not more than 30mA. Al-
ways check your RCD every time you use it.
If the supply cord is damaged, it must be replaced by a
Bosch Service Centre.
For products not sold in GB:
Warning: For your safety, it is required that the plug at-
tached to the product is connected with the extension cord.
The coupling of the extension cord must be protected
against splash water, be made of rubber or coated with rub-
ber. The extension cord must be used with a cable strain re-
lief.
To prevent damage to the appliance, do not allow it to oper-
ate dry.
Products sold in GB only:
Your product is fitted with an BS 1363/A approved electric
plug with internal fuse (ASTA approved to BS 1362).
If the plug is not suitable for your socket outlets, it should be
cut off and an appropriate plug fitted in its place by an au-
thorised customer service agent. The replacement plug
should have the same fuse rating as the original plug.
The severed plug must be disposed of to avoid a possible
shock hazard and should never be inserted into a mains
socket elsewhere.
Operation
u To prevent damage to the appliance, do not allow it to op-
erate dry.
Starting
Attach water supply hose (not supplied) to the mains water
supply and machine.
Connect the product to the mains supply ensuring that the
mains switch is in the off position.
Open water tap.
Press the safety lock (back button on the gun handle) to re-
lease the trigger. Fully press the trigger until there is a con-
stant flow of water to clear the air from the machine and wa-
ter supply hose. Release trigger. Press the safety lock (front
button on the gun handle).
Turn button on main switch. Point the power gun down-
wards. Press the trigger safety lock to release the trigger.
Fully press the trigger.
Bosch Power Tools F 016 L94 123 | (22.11.2022)
