Installation instructions
830 ES – 6 720 644 936 (2021/08)
22

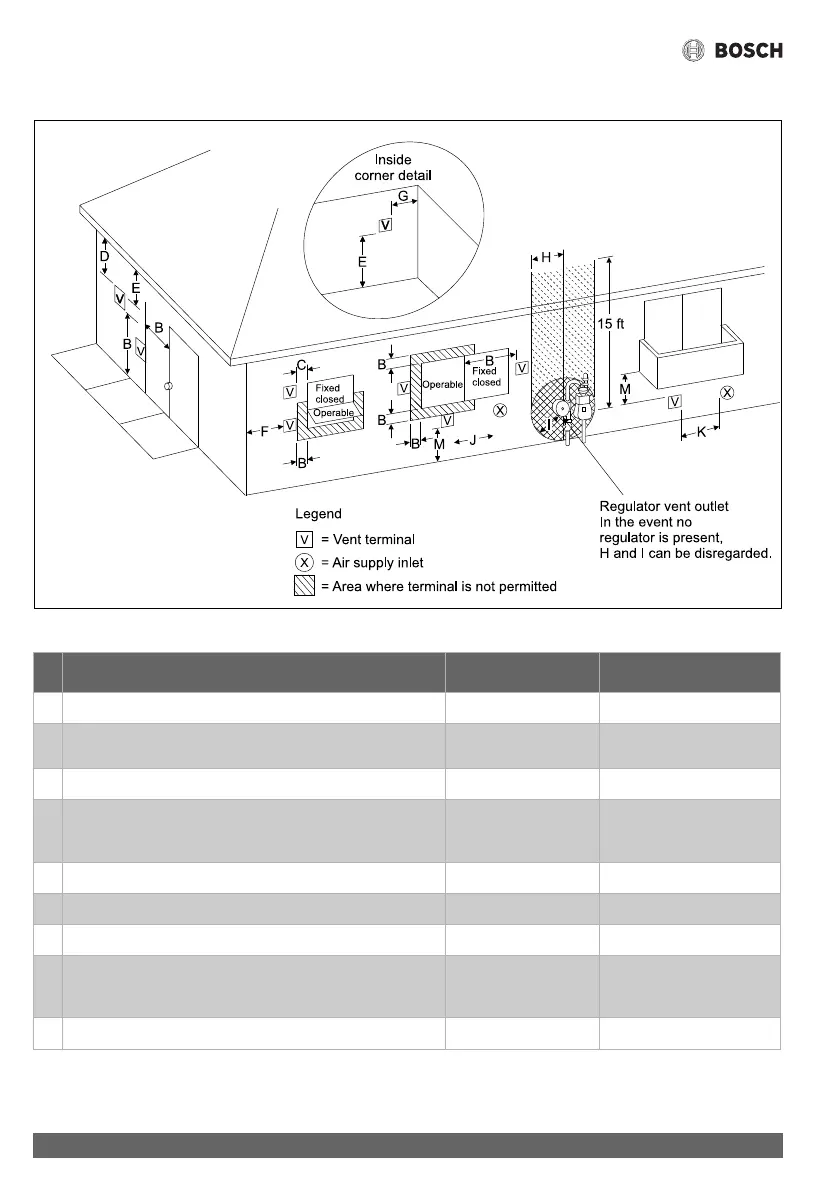

Required other than direct vent terminal clearances (single pipe penetration)
Fig. 12
Canadian
installations
1)2)
U.S. installations
2)3)
A Clearance above grade, veranda, porch, deck or balcony 12 in. 12 in.
B Clearance to window or door that may be opened 36 in. 4 feet below or to side of
opening;
C Clearance to permanently closed window * *
D Vertical clearance to ventilated soffit located above the vent
termination within a horizontal distance of 2 feet (61cm) from the
center line of the termination
* *
E Clearance to unventilated soffit * *
F Clearance to outside corner * *
G Clearance to inside corner * *
H Clearance to each side of center line extended above meter/
regulator assembly
36 in. within a height 15
feet above meter/
regulator assembly
*
I Clearance to service regulator vent outlet 36 in. *
