Bosch 830 ES - Components Diagram (Group 1)

Interior components diagram and parts list
830 ES – 6 720 644 936 (2021/08)
70
13.2 Components diagram
13.2.1 Group 1

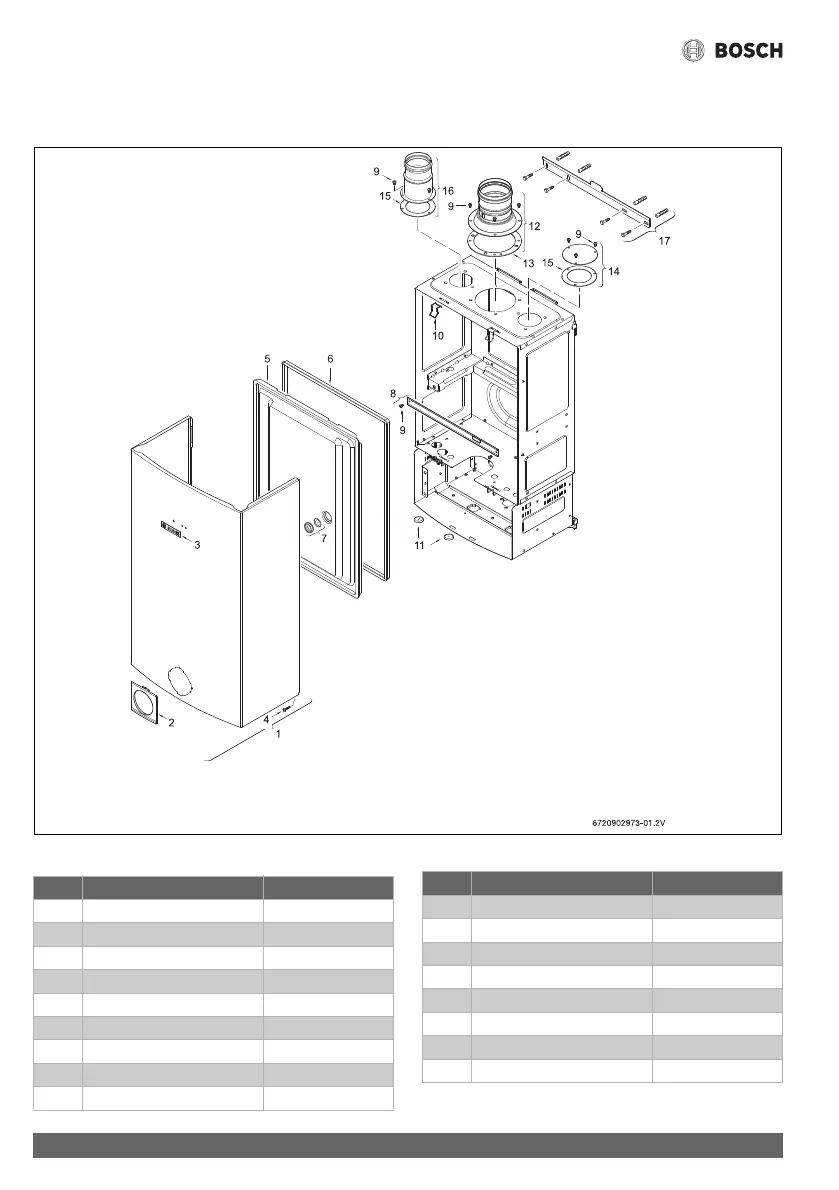

Fig. 69 Components Diagram
Table 42
Item Description Reference
1 Front cover 8 738 708 380
2 Cover shield 8 738 708 382
3 Trade mark badge 8 701 103 140 0
4 Cover screw 8 703 401 170 0
5 Combustion cover 8 700 506 300 0
6 Combustion cover gasket 8 704 701 084 0
7 Observation window 8 705 600 003 0
8 Holding bracket 8 708 104 103 0
9 Screw 8 703 403 012 0
10 Combustion cover clip 8 701 201 032 0
11 Grommet set 8 710 203 039 0
12 Exhaust accessory 8 705 504 162 0
13 Gasket exhaust 8 700 103 710 0
14 Inlet air cover 8 708 006 022 0
15 Inlet air gasket 8 700 103 166 0
16 Inlet air accessory 8 705 504 116 0
17 Mounting bracket 8 701 309 164 0
Item Description Reference
