Circuit diagram | ACS 511 | 39 en
17.2 Computer printed circuit board
CPU
PROGRAMRS-232
PRESSUREOUT OILIN OILPRNTANK
CPU-1
1
2
3
4
5
6
7
8
9

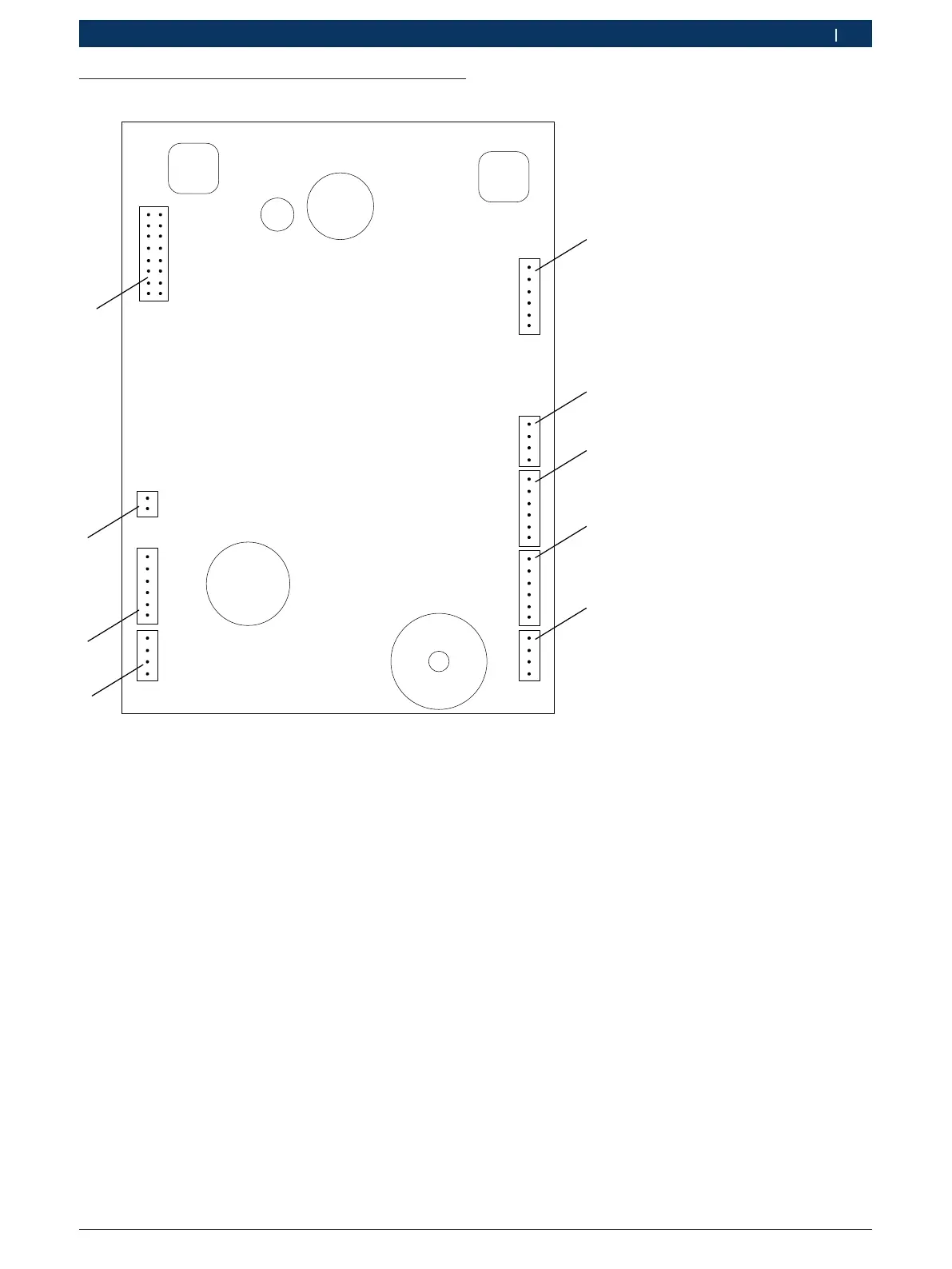

Fig. 8: Computer printed circuit board
1 Internal refrigerant scales connection
2 Power supply printer connection
3 Fresh oil scales connection
4 Used oil scales connection
5 Pressure sensor connection
6 Internal printer connection
7 Programming connection
8 Not used
9 Control PCB connection (supply PCB)
