1 689 975 252 2019-05-15| Robert Bosch GmbH
Product description | ACS 511 | 7 en
5. Product description
5.1 Description of unit
5.1.1 Front view
4
6
5
1
2
3
8
7
9
10
12
11

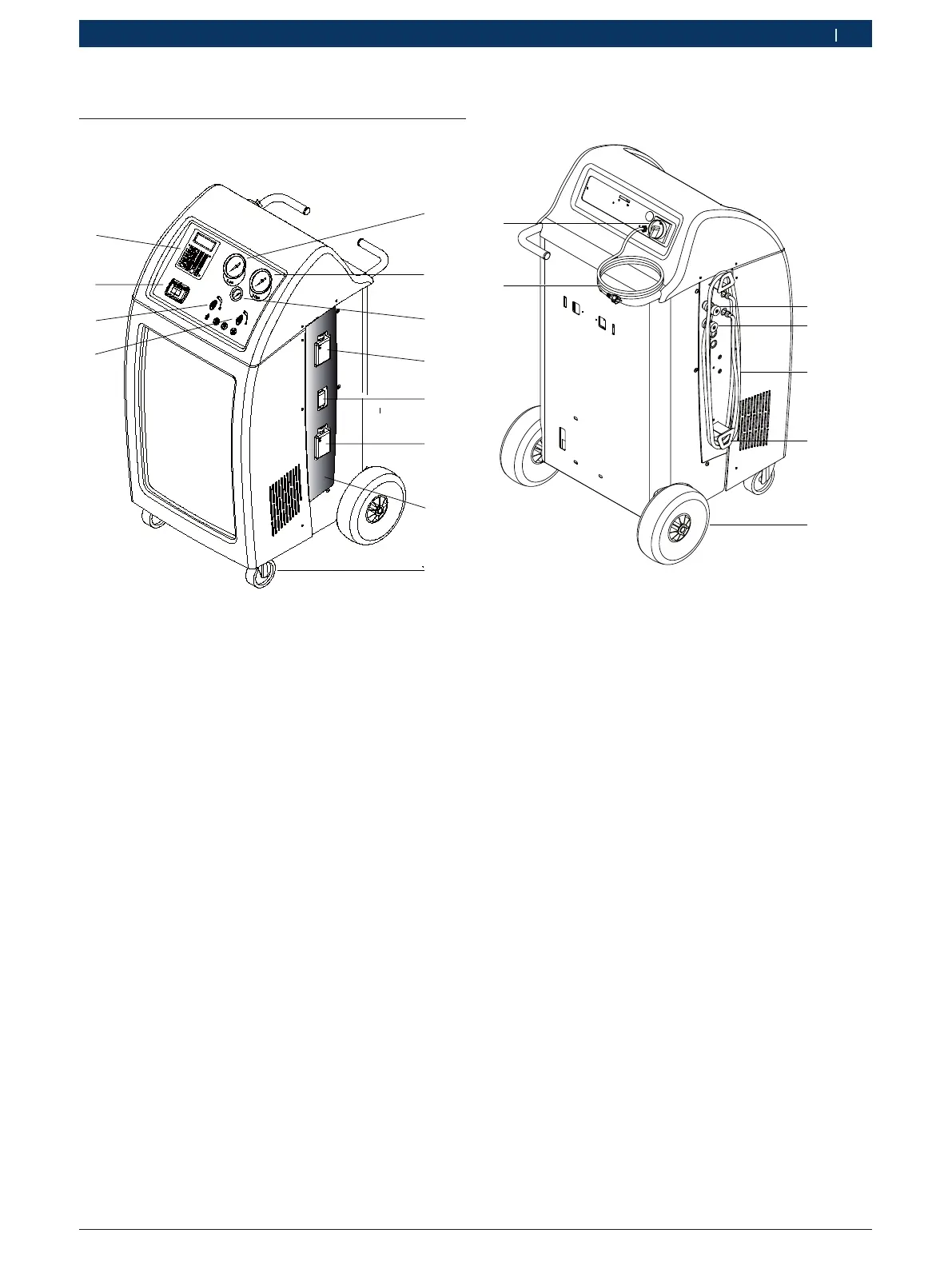

Fig. 1: Front view
1 High pressure valve
2 Low pressure valve
3 Printer
4 Display and control panel
5 Low pressure gage (LP)
6 High pressure gage (HP)
7 Internal refrigerant cylinder pressure gage
8 Fresh oil bottle
9 UV dye bottle
10 Used oil bottle
11 Cover
12 Front wheels with locking brake
i The high (6) and low pressure (5) gages show the
current pressure during the air conditioning service
on the vehicle. The small gage (7) is used to check the
bottle pressure in the internal refrigerant cylinder.
i The two valve settings are labeled as follows:
$ C (closed) = valve is closed
$ O (open) = valve is open
5.1.2 Rear view
1
5
4
3
2
6
7
Fig. 2: Rear view
1 Service quick-release coupling (low pressure)
2 Service quick-release coupling (high pressure)
3 Service hoses
4 Service hose mount
5 Rear wheels
6 Power cord
7 Master switch
