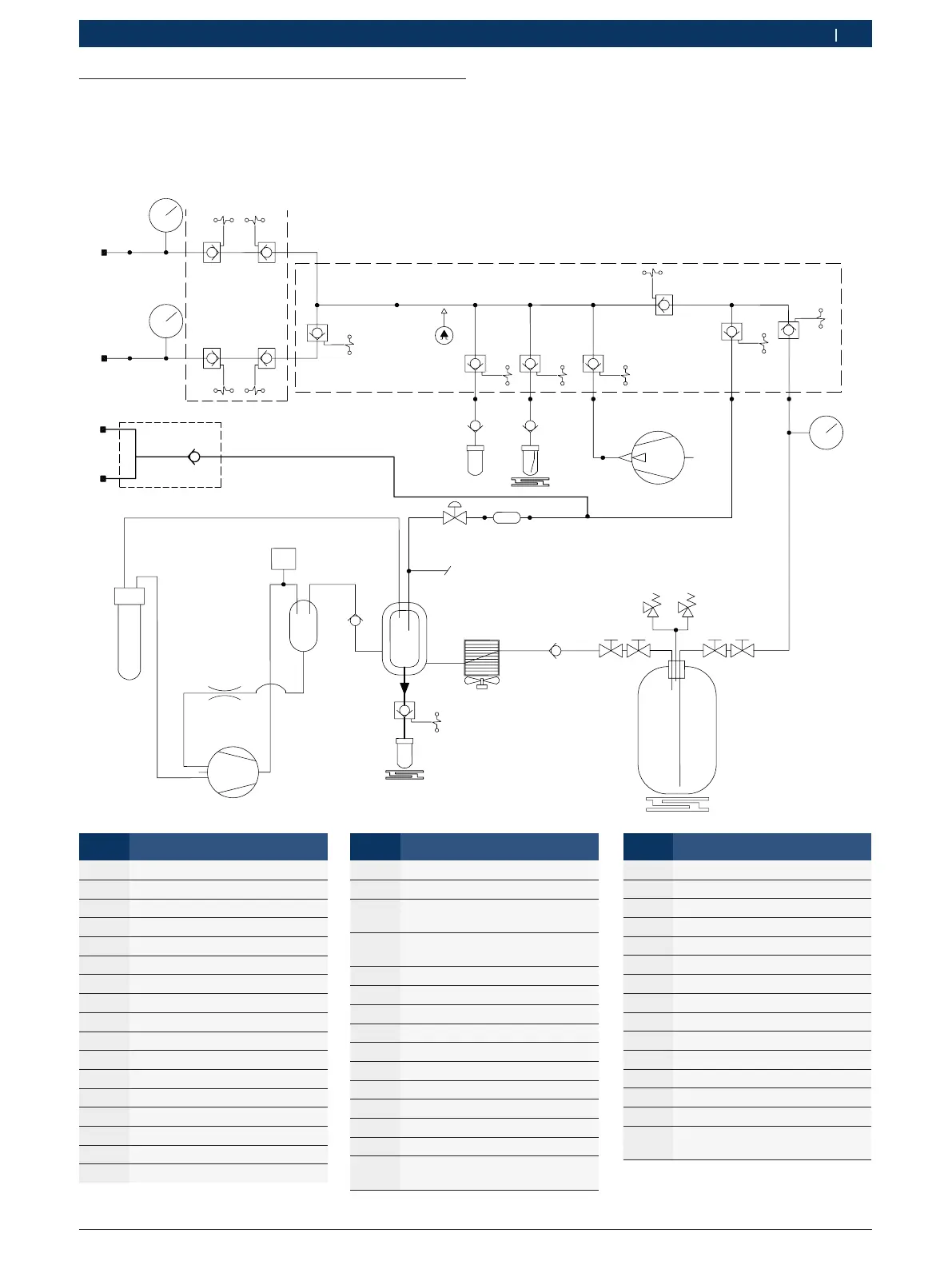

8.2 Draining oil into the used oil bottle
At the end of recovery, the solenoid valve EV7 opens
and the oil previously separated out in the evaporator/
oil separator (4) drains into the used oil bottle (9).
The used oil bottle scales (13) weigh the drained used
oil and ACS 652 saves the value for fresh oil filling in
automatic mode.
M2
P1
T1
T2
EV5
EV3
EV6
3F1
C
P2
HP
5
VU2
6
F2
9
4
EV7
10
7
V1
8
V3 V2V4
V6V5
M1
M3
EV10
P
2
EV1
13
EV9
11
VU3
EV8
12
VU1
1
EVLP1 EVLP2
EVHP1 EVHP2
R1
R2
HOSE FLUSH MANIFOLD
SERVICE PORT
Name Description
1 Fresh oil tank
2 Vacuum pump
3 Expansion valve
4 Evaporator/oil separator
5 Compressor oil separator
6 Compressor
7 Internal refrigerant cylinder
8 Refrigerant cylinder scales
9 Used oil bottle
10 Heat exchanger
11 UV dye bottle
12 Fresh oil scales
13 Used oil scales
EV1 Vacuum solenoid valve
EV3 Flow solenoid valve
EV5 Recovery solenoid valve
EV6 Filling solenoid valve
Name Description
EV7 Oil drain solenoid valve
EV8 Oil injection solenoid valve
EV9 Contrast medium injection sole-
noid valve
EV10 Solenoid valve for separating
high and low pressure
EVHP1 High pressure solenoid valve
EVHP2 High pressure solenoid valve
EVLP1 Low pressure solenoid valve
EVLP2 Low pressure solenoid valve
F1 Coarse filter
F2 Combi filter
HP High pressure
LP LOw pressure
M1 Low pressure gage
M2 High pressure gage
M3 Internal refrigerant cylinder pres-
sure gage
Name Description
P1 Pressure sensor
P2 Pressure switch
R1 Low pressure flushing connection
R2 High pressure flushing connection
T1 Low pressure hose
T2 High pressure hose
V1 Tank vapour side hose valve
V2 Tank liquid side hose valve
V3 Tank vapour side valve
V4 Tank liquid side valve
V5 Safety valve
V6 Non condensable drain valve
VU1 Oil non-return valve
VU2 One-way valve
VU3 UV contrast medium non-return
valve
