Bosch B20CS51SNS - 7. How to Check Each Parts; 7-1. Hose Ice Maker Tube Assembly

32

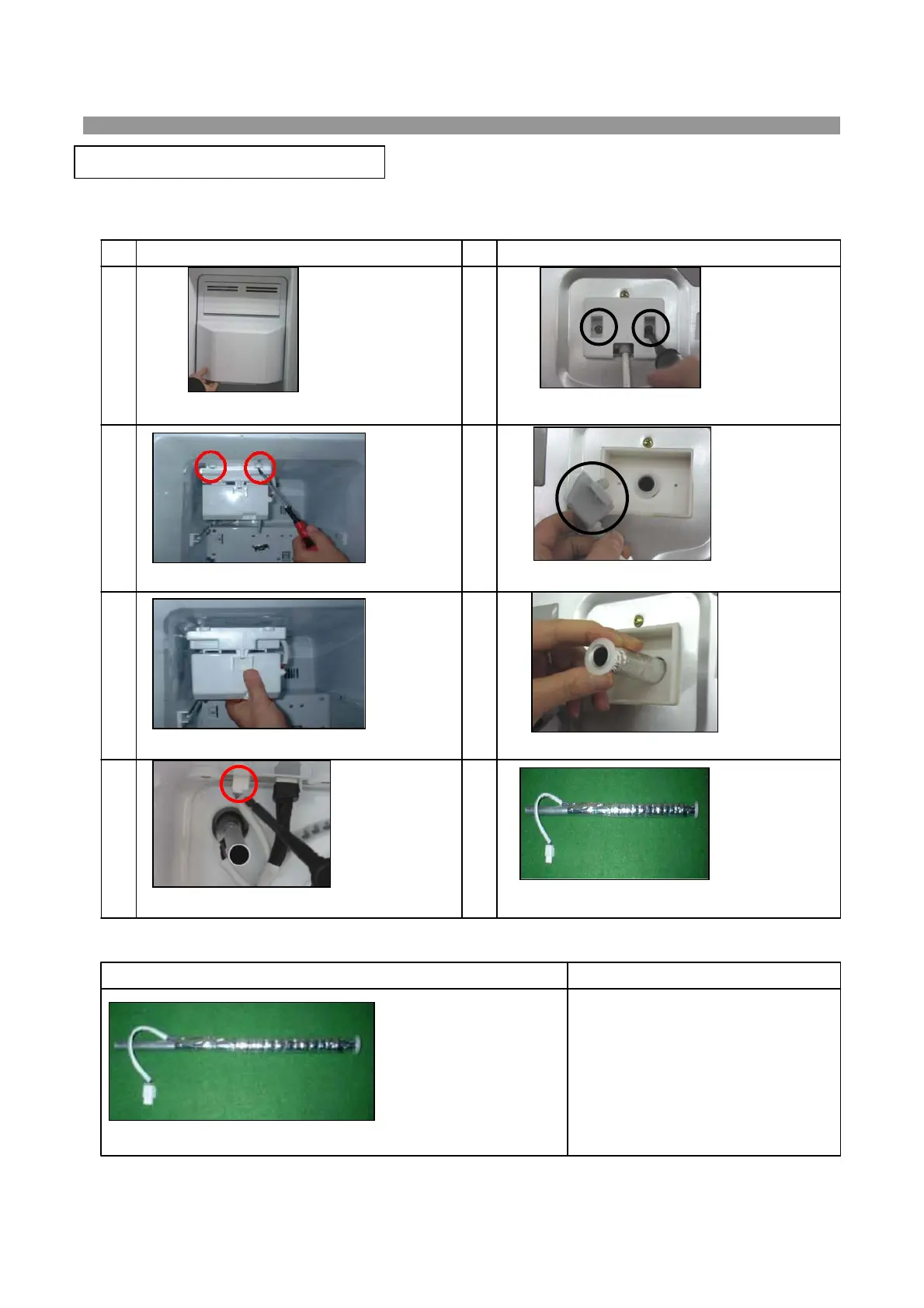

NO DISASSEMBLING PROCEDURE NO DISASSEMBLING PROCEDURE
15
26
37
48
▷Pull forward Ice Storage Case
▷Remove 2 screws at the Cove
Guide Cab W/Tube A.
▷Remove 2 screws. ▷Disassemble Cover Guide Cab W/Tube A
▷Pull forward Ice Maker. ▷Pull forward Hose Ice Maker Tube As.
▷Remove Water Hose Heater's 2P housing.
▷Check Hose Ice Maker Tube As.
2) How to check Hose Ice Maker Tube As.
How to check CRITERION
▷Measure the resistance
of two wire
▷Good: 2420Ω(±8%)
(2226 ~ 2614Ω)
▷If defective, change
7. HOW TO CHECK EACH PARTS
7-1. Hose Ice Maker Tube Assembly
1) Disassembling Procedure
