35
NO DISASSEMBLING PROCEDURE NO DISASSEMBLING PROCEDURE
14
36
▷ Separate 2 housings of 10P / 7P
from Front PCB.
(Do not hold only wires to pull out.)
▷Unscrew (3 points) to remove Sol Valve.
▷Unscrew (2 points) to remove Box
Dispenser Shut.
▷Unscrew (1 point) to remove Cover Ice Flap.
2) How to Check Micro Switch

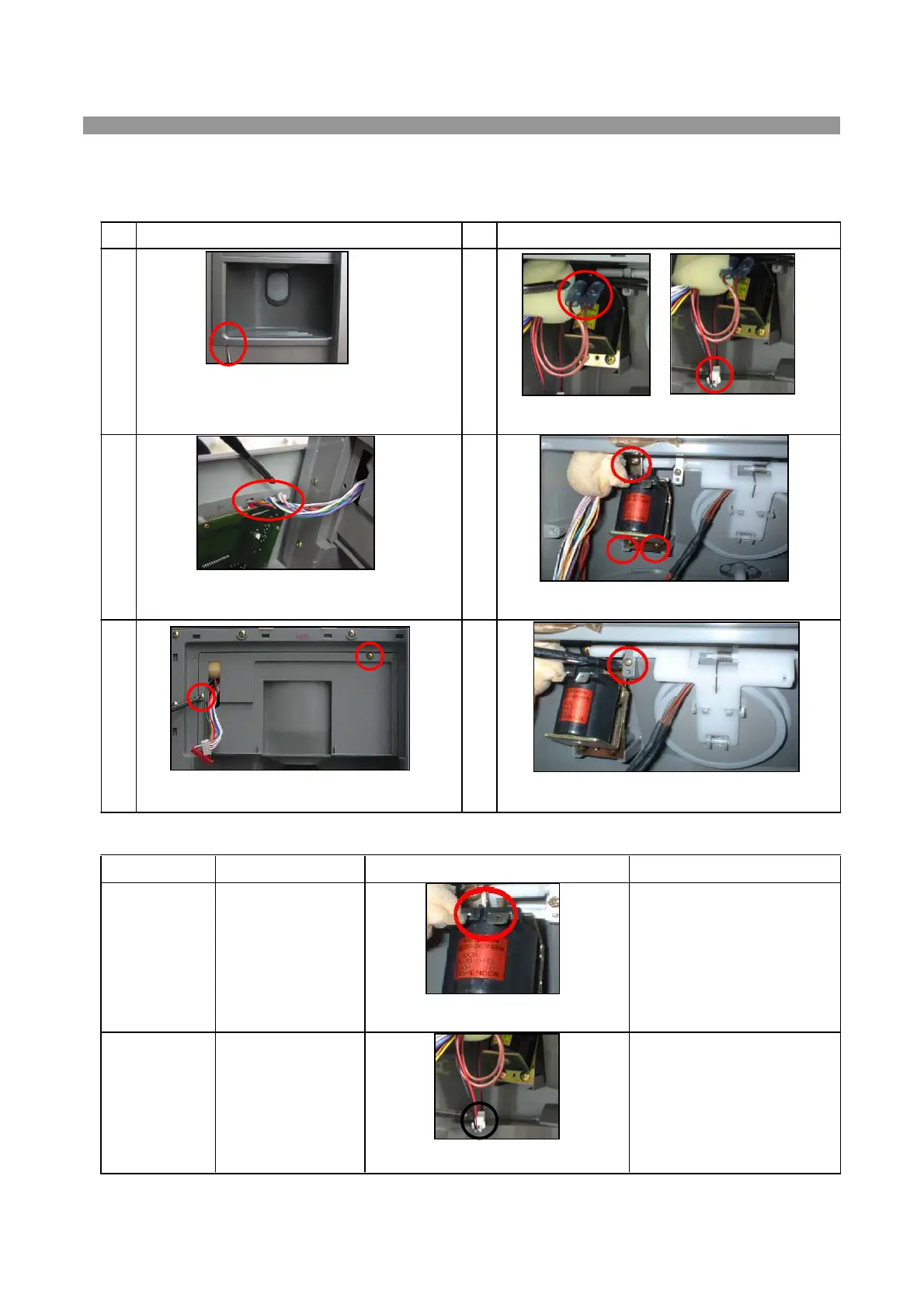

7-4. Dispenser Solenoid Valve
1) Disassembling Procedure
SPEC. CRITERION
▷ Good : 58Ω(±10%)
(52.2 ~ 63.8Ω)
▷DEFECTIVE : 0
Change Sol Valve.
PARTS HOW TO CHECK
▷GOOD : 72Ω(±8%)
(66.2 ~ 77.8Ω)
▷DEFECTIVE ;
Change Flap Heater AS.
▷SPEC. NAME
:SOL2003-02D
▷VOLTAGE
:110/115V,60Hz
▷VOLTAGE
:DC 12V, 2W
▷Check resistance value of
both terminals with a tester.
Dispenser
Sol Valve
Flap Heater
Assembly
▷Check resistance value of
both terminals with a tester.
25
▷ Insert (-) screw driver into bottom left groove
of Cover Dispenser Box. Pull forward with a
snap.(Be careful not to damage cover and
door surface.)
▷Separate 2 terminals from Sol Valve and
2P Housings from Cover Ice Flap.
To Next Page
