Disassembling procedure
NO
Disassembling procedure
16
38
▷ Pull forward ice maker. ▷Unscrew (3 points) Plate Gear Fixture.
▷Unscrew Fixture of Frame Ice Maker.
▷ Check if ice dropping motor is normal.

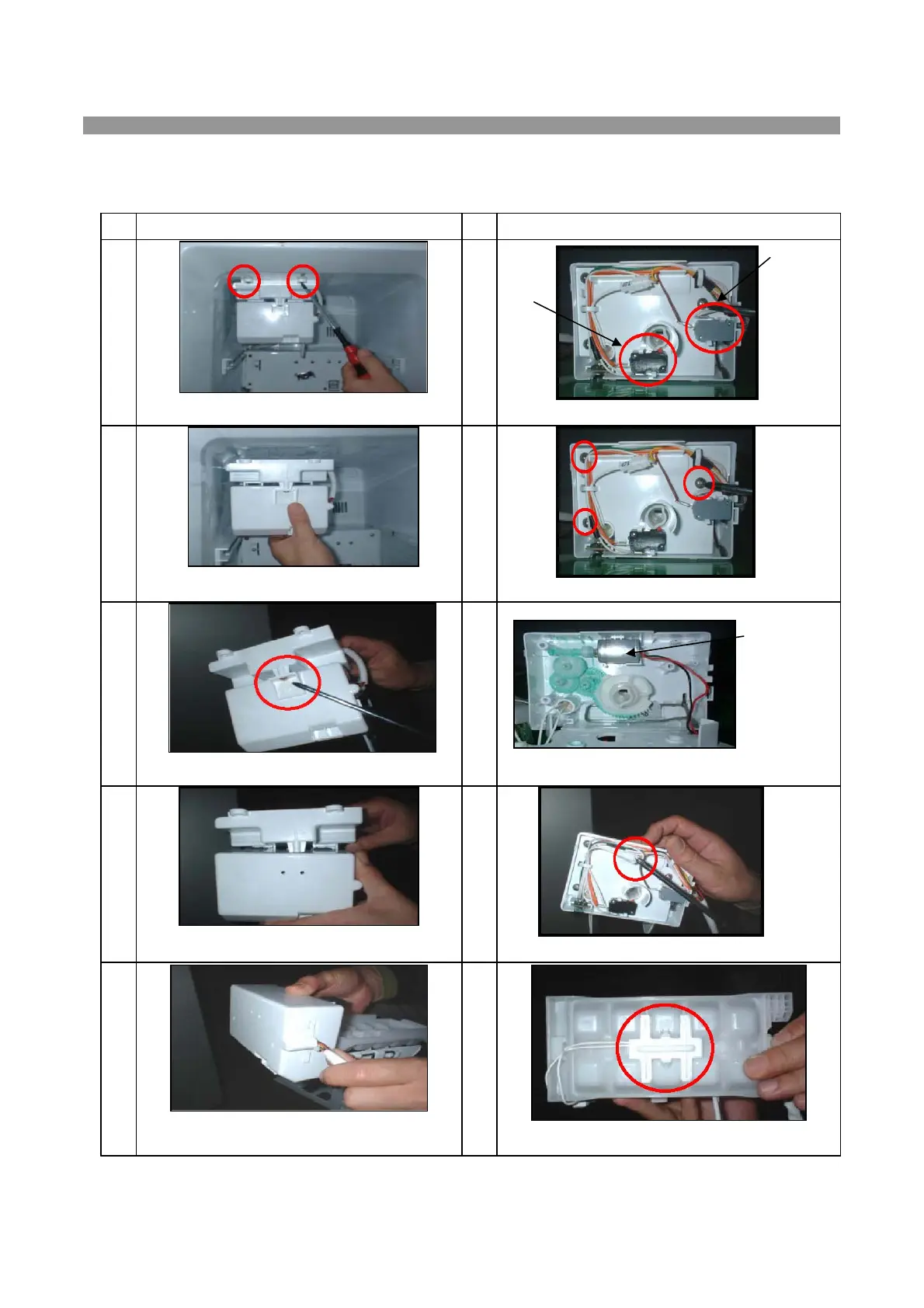

7-6. Ice Maker ; Disassembling & Check
1) Disassembling procedure
27
▷ Remove 2 screws on top front of ice maker.
▷Remove full ice sensing switch and level switch.
49
▷Separate Ice Maker Assembly from
Frame Ice Maker.
▷Remove 2 pin housing (ice sensor)
510
▷ Separate Cover I/M (A) from Cover I/M (B)
with a (-) screw driver.
▷ Remove I-sensor (ice sensor) from
Case Icing Assembly.
* Follow the reverse order when assembling.
