Bosch B20CS51SNS - 7-2. Bracket Geared Motor Assembly; 7-3. Dispenser Micro Switch

33
NO DISASSEMBLING PROCEDURE NO DISASSEMBLING PROCEDURE
14
25
36
▷Remove 2 screws.
▷Pull forward Bracket Geared Motor.
▷Unscrew (4 points).
▷Separate 6 pin housing of Bracket
Geared Motor from the top connector.
▷Check Solenoid Valve and Geared Motor.
2) How to Check Hose Ice Maker Tube Assembly
SPEC. CRITERION
▷GOOD : 2.2Ω(±5%)
(2.1 ~ 2.3Ω)
▷DEFECTIVE ;
Change the Geared Motor.
PARTS HOW TO CHECK
▷GOOD : 42Ω(±5%)
(39.9 ~ 44.1Ω)
▷DEFECTIVE ;
Change the Cube Sol Valve.
▷Check resistance value of
2 terminals with a Multi Tester.
▷SPEC. NAME
:DAG-6502DEB
▷VOLTAGE
:120V,60Hz
▷SPEC. NAME
:Cube SN9
▷VOLTAGE
:110/127V,60Hz
▷Check resistance value of
2 terminals with a Multi Tester.
Geared Motor
Cube Sol Valve

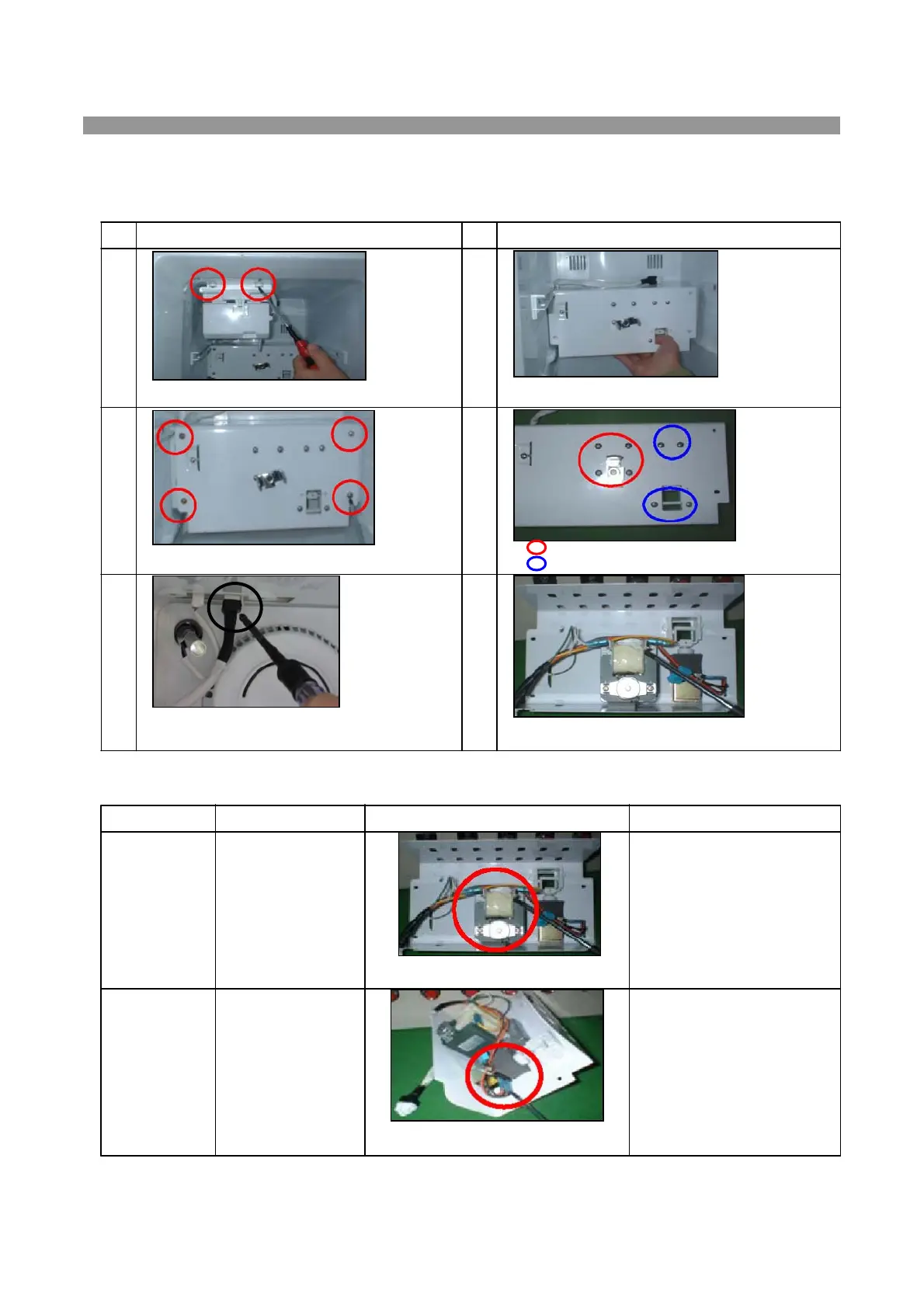

7-2. Bracket Geared Motor Assembly
1) Disassembling Procedure
Unscrew (red 4 screws).
Unscrew (blue 4 screws).
