– Use a separate D8108A for the two 12 V 7 Ah batteries. When using a D122L Dual Battery
Harness, wire the batteries in parallel and connect the harness to the BAT+ and BAT-
terminals of the control panel.

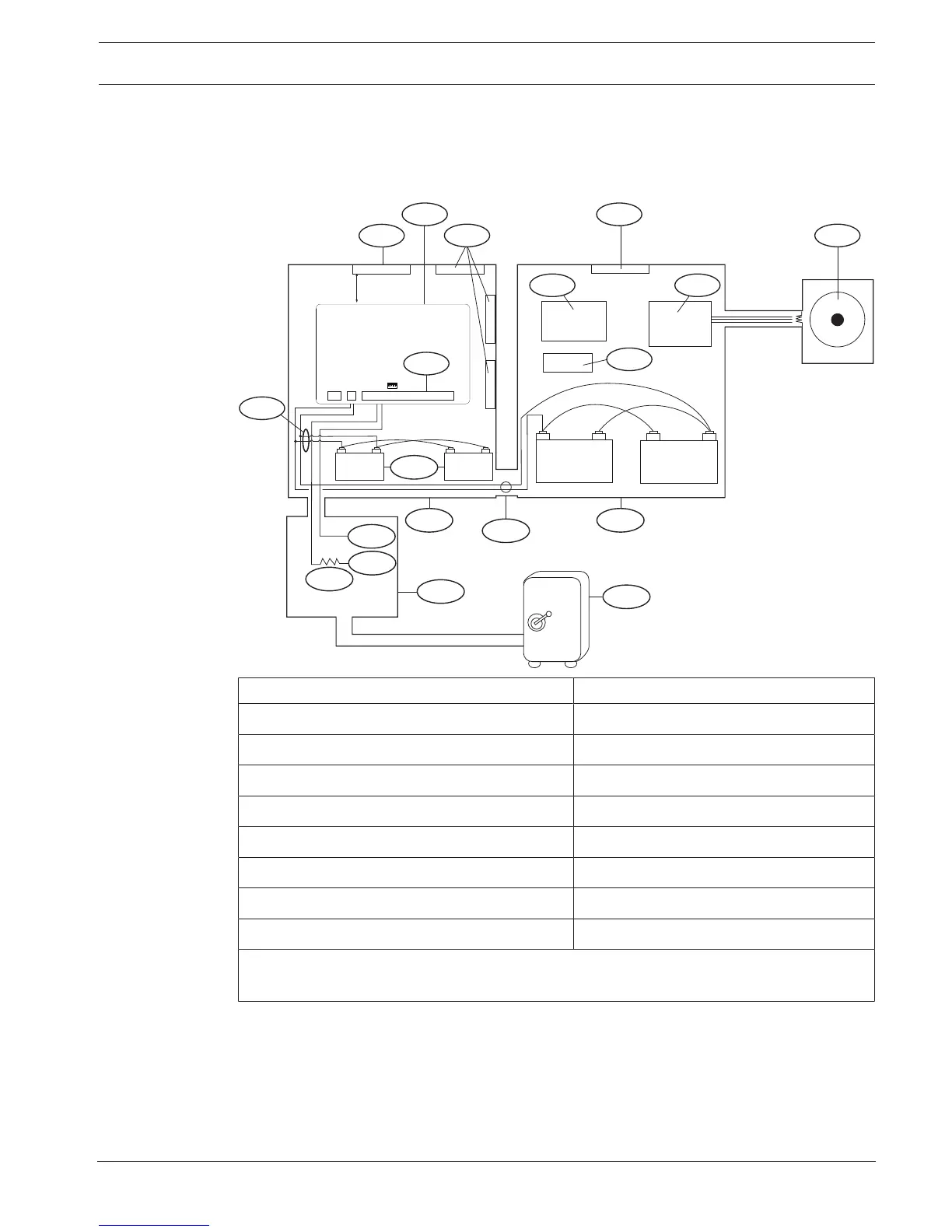

Rothenbuhler 5110/4001-42 High Security Bell overview
0.64 mm (0.25 in)
minimum distance
+
-
+
-
2
1
1
14
9
7
5
6
8
3
4
10
11
13
12
9
16
15
11
Callout ᅳ Description Callout ᅳ Description
1 ᅳ Self-contained UL listed vibration sensor 9 ᅳ D122/D122L
2
2 ᅳ Control panel 10 ᅳ D126 battery
3 ᅳ Accessory modules 11 ᅳ D8108A enclosure
4 ᅳ High line security module 12 ᅳ Proximity/control unit
5 ᅳ 4001-42 Balanced Line Module 13 ᅳ Normally open (NO)
6 ᅳ 5110 Bell 14 ᅳ Normally closed (NC)
7 ᅳ D133 Relay 15 ᅳ End-of-line (EOL) resistor
8 ᅳ Alarm input point
1
16 ᅳ Safe
1
Use Terminals 1 through 8. (Select only one.)
2
Use a D113 Battery Lead Supervision Module to supervise the battery connections
.
