34 en | Control panel installation Control Panels
2018.07 | 10 | F.01U.303.996 Installation Manual Bosch Security Systems, Inc.
RESETZONEX
TAMPER
SDI2
PWR+/R
A/Y
B/G
COM/B
PWR+/R
A/Y
B/G
COM/B
24
25
26
27
28
29
23
26
SDIx
ire
olice
ting
RESETZONEX
TAMPER
SDI2
PWR+/R
A/Y
B/G
COM/B
PWR+/R
A/Y
B/G
COM/B
25
26
28
29
30
23
27
SDIx
ire
olice
ting
24
ZONEX TMPR
SDIx SDI2
MODULE RELEASE
MOD-2
MOD-1

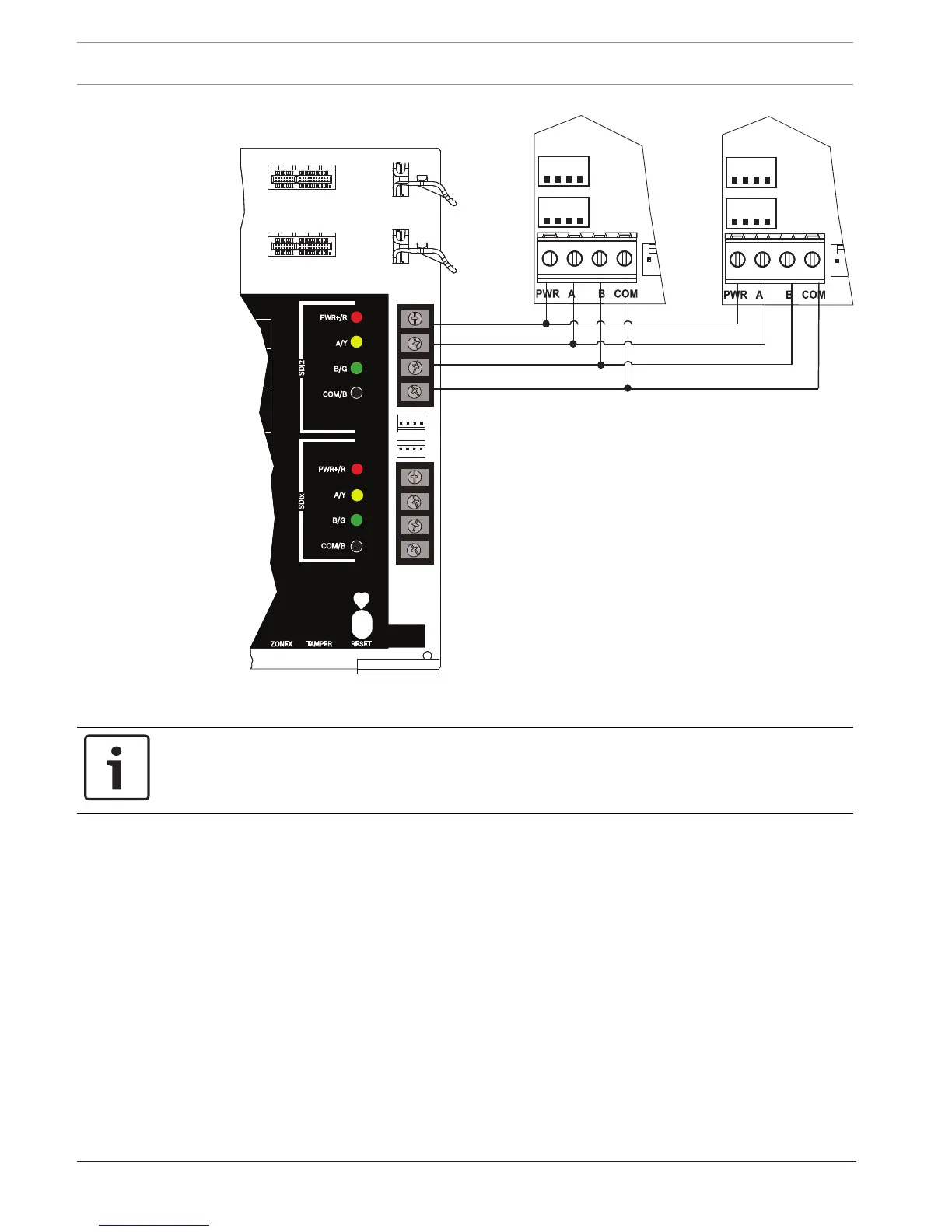

Using interconnect wiring
Notice!
More information
For more information on interconnect wiring, refer to SDI2 interconnect wiring, page 17.
