Bosch BCC100 Quick Start Guide

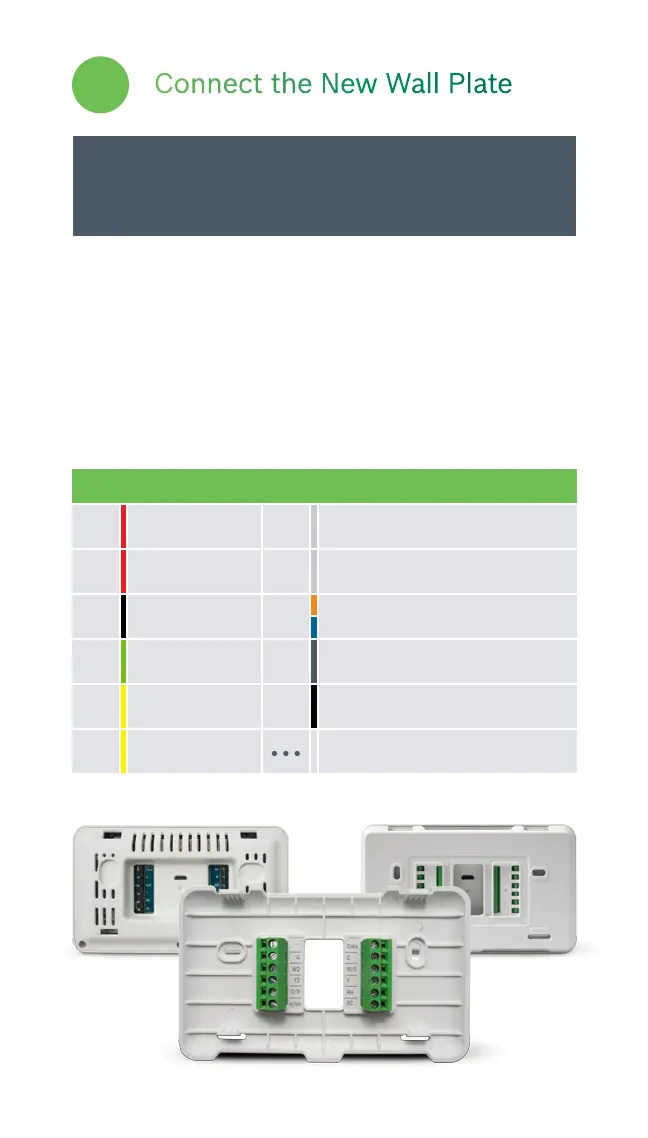

Connect the New Wall Plate
Insert all wires vertically from the open socket into the
proper terminal. Ensure that each wire is inserted into the
matching terminal. Use the supplied flathead screwdriver
to fasten each wire. Pull wires gently to ensure wires are
securely fastened.
2
WARNING: Use caution when securing and routing
wires to prevent possible shortage to adjacent terminals.
KEY
Rc Power Cooling W/E
1st Stage Heating
Emergency heat activated at W1
R/h Power Heating W2
2nd Stage Heating
Auxiliary heat activated at W2
C Common O/B Reverse Valve
G Fan H/Dh (De) Humidifier
Y 1st Stage Cooling Data (Only to be used with Bosch WSHP)
Y2 2nd Stage Cooling Jump Wire

Bosch BCC100 Specifications

General

Connectivity	Wi-Fi
Voice Control	Amazon Alexa, Google Assistant
Type	Smart Thermostat
Display	LCD
Compatibility	24V HVAC systems
Mobile App	Bosch Connected Control app
Scheduling	7-day
Power Source	Hardwired
