Bosch C 950 ES - Component Breakdown - Group 4; Gas Valve Assembly Parts

6 720 646 812
Interior components diagram and parts list
63
12.2.4 Group 4

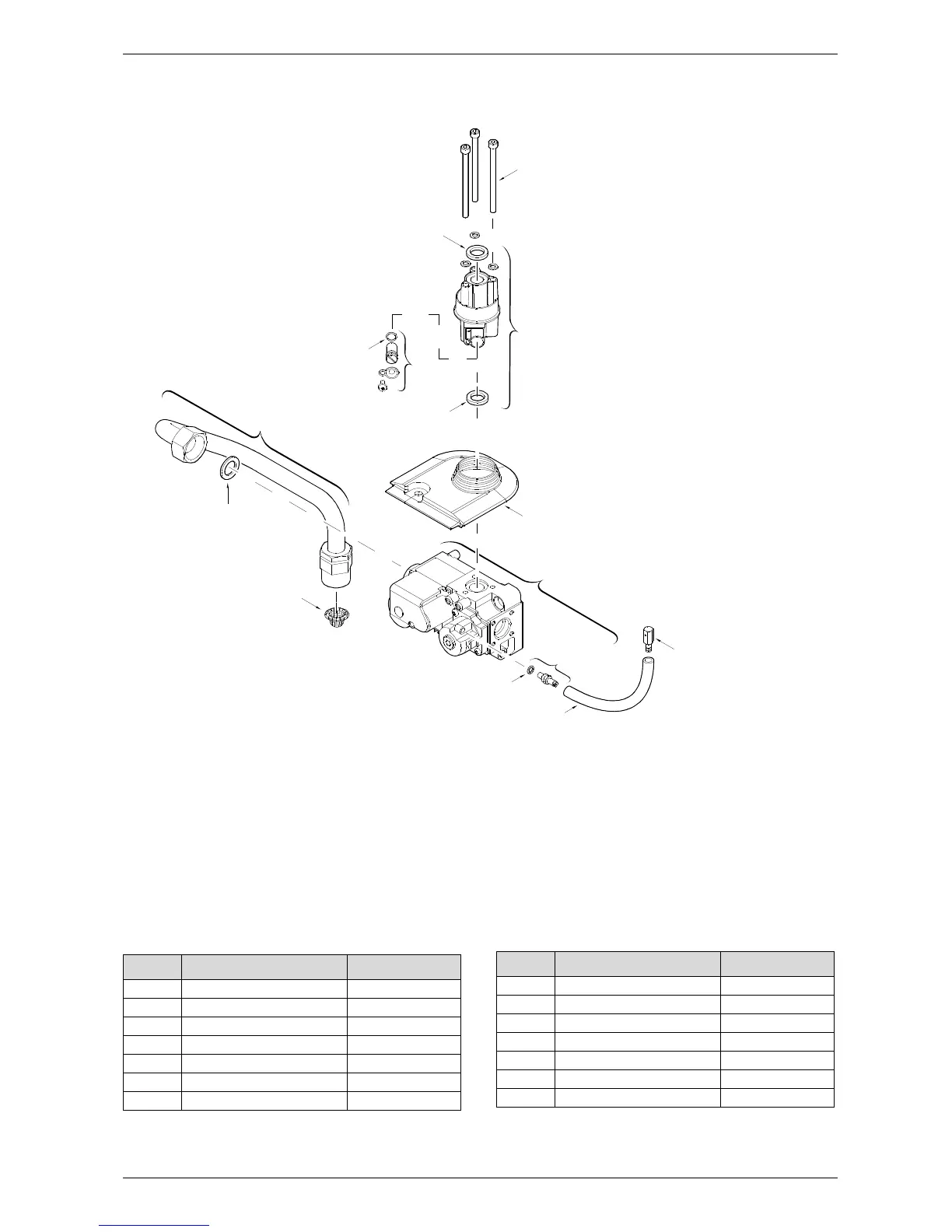

Fig. 82 Components Diagram
9
2
14
1
3
4
5
6
7
8
11
11
12
13
10
6720902976.AA JF
Item Description Reference
1 Gas valve 8 707 021 019
2 Pressure tapping 8 703 404 219
3 Washer 8 700 203 041
4 Pressure balance tube 8 700 703 136
5 Pressure balance nut 8 703 300 041
6 Gas supply pipe 8 700 715 389
7 Gas valve washer 8 700 103 014
Table 33
8 Gas filter 8 700 507 002
9 Gasket 8 704 701 085
10 Gas / Fan connector 8 705 202 140
11 Washer 8 704 701 062
12 Regulation screw 8 703 404 220
13 O-ring 8 700 205 009
14 Screw 2 910 149 181
